Stainless Steel Deep Groove Ball Bearings W 61906

Stainless Steel Deep Groove Ball Bearings W 61906

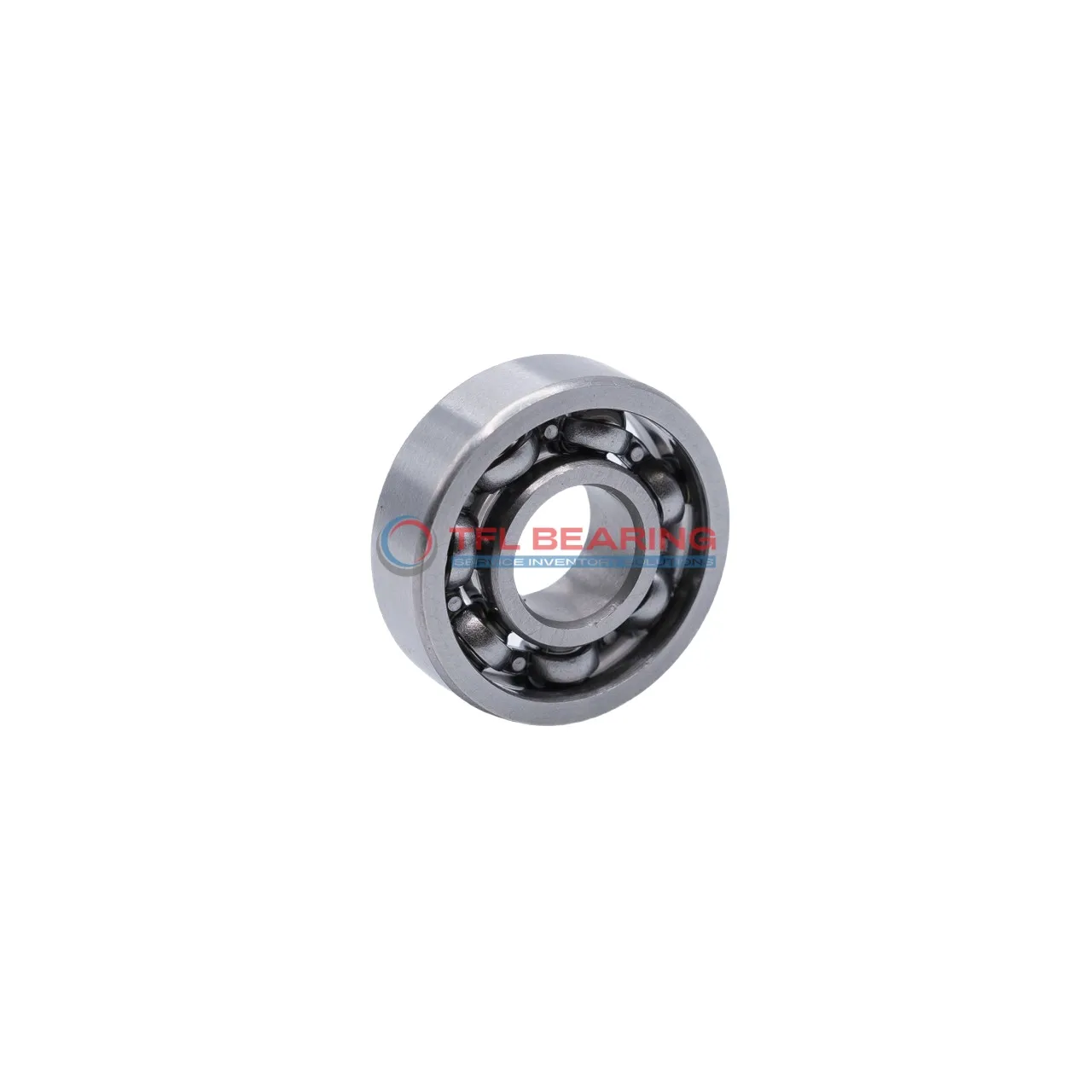

The W 61906 is a stainless steel deep groove ball bearing with a 30mm bore and 47mm outer diameter, measuring just 9mm wide. It handles radial loads up to 1403 lbf and can spin at speeds up to 19,000 RPM.

Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. Its open design allows easy access for lubrication when needed.

This single-row bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for applications like food processing or marine equipment where rust resistance is key.

Weighing only 0.043kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61906
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1403 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.043 kg
Stainless Steel Deep Groove Ball Bearings W 61906 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61906 Bearing for Precision Tasks?

W 61906 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, making it ideal for precision applications.

The dynamic radial load capacity of 1403 lbf provides reliable performance under stress.
With a maximum speed of 19,000 rpm, it balances high-speed operation with durability.

W 61906 Bearing’s compact size (30 mm×47 mm×9 mm) allows for easy integration into various systems.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of W 61906 Bearing
W 61906 Bearing is commonly used in industrial settings, such as conveyor systems and small electric motors, where its stainless steel construction offers good resistance to corrosion. The open design allows for easy lubrication, making it suitable for continuous operation.

In automotive applications, W 61906 Bearing fits well in components like alternators and water pumps, providing reliable radial load support. Its compact size and metric dimensions make it a versatile choice for various vehicle models.

For medical devices, W 61906 Bearing’s stainless steel build ensures hygiene and durability in equipment like dental drills. The P0 tolerance class guarantees consistent performance in precision instruments.

Automation systems benefit from W 61906 Bearing in robotic arms and small actuators, where its low friction and high-speed capability are advantageous. The CN radial clearance ensures smooth movement in repetitive tasks.

In household appliances, W 61906 Bearing is often found in fans and small power tools, offering quiet and efficient operation. Its lightweight design contributes to energy savings in everyday devices.
