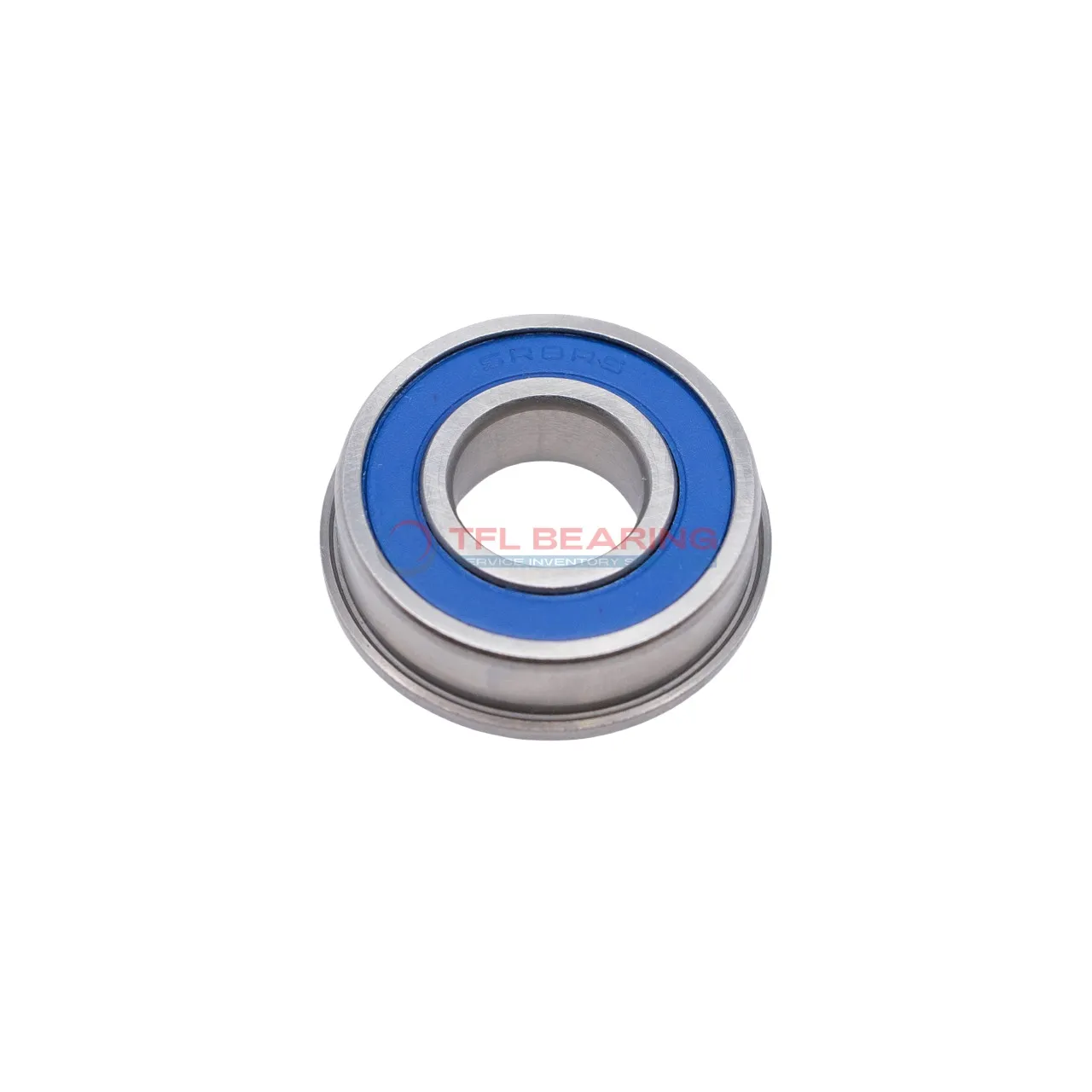

Metric Size Miniature Flanged Ball Bearings F605 2rs

Metric Size Miniature Flanged Ball Bearings F605 2rs

The F605 2rs is a compact, sealed ball bearing with a 5mm bore and 14mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 254 lbf and spins smoothly at speeds up to 40,000 RPM.

Its rubber seals keep dirt out and grease in, making it low-maintenance, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

With a lightweight design at just 4.12g, it’s ideal for small, high-speed applications like electric motors or precision tools. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F605 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 16 mm
  • Flange Thickness 1 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 2.3810 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 254 lbf
  • Static Radial Load 91 lbf
  • Max Speed 40000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.12 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F605 2rs dimension drawing
Download DWG Download PDF

Features

What Makes F605 2rs Bearing Suitable for High-Speed Applications?

F605 2rs Bearing is built with chrome steel rings and balls, ensuring durability and smooth operation.
Its sealed design with nitrile rubber shields protects against contaminants, ideal for high-speed use.
The bearing can handle speeds up to 40,000 rpm, making it perfect for precision applications.
With a dynamic radial load capacity of 254 lbf, it offers reliable performance under stress.

Application

Common Applications of F605 2rs Bearing
F605 2rs Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and sealed design. The chrome steel construction ensures durability even in high-speed operations.

In automation systems, F605 2rs Bearing fits well in robotic arms and 3D printers, where smooth radial movement is essential. Its ABEC1 tolerance class provides reliable precision for consistent performance.

For household appliances like printers or small kitchen gadgets, F605 2rs Bearing offers quiet operation and low maintenance. The nitrile rubber seal helps keep contaminants out, extending its lifespan in everyday use.

Medical devices, such as dental tools or lab equipment, benefit from F605 2rs Bearing’s stainless steel cage and high-speed capability. Its lightweight design makes it ideal for precision instruments requiring minimal friction.
