Stainless Steel Deep Groove Ball Bearings W 61902

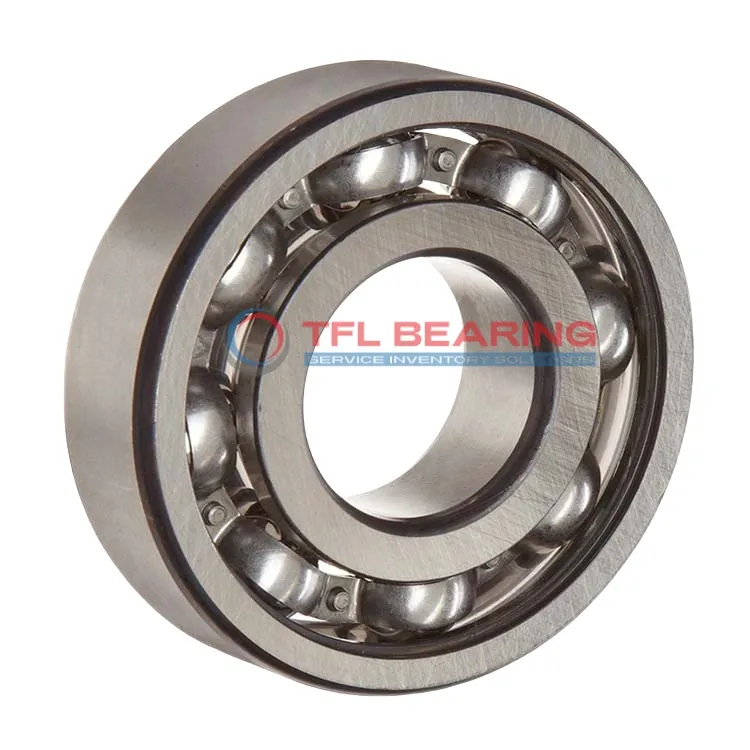

Stainless Steel Deep Groove Ball Bearings W 61902

The W 61902 is a compact stainless steel deep groove ball bearing, measuring 15mm by 28mm by 7mm. It handles radial loads up to 834 lbf and spins smoothly at speeds up to 34,000 RPM.

Made entirely from stainless steel, it resists corrosion and works well in temperatures from -30°C to 120°C. Its open design allows for easy lubrication when needed.

This single-row bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for small machinery or applications where rust resistance is important, like food processing or marine environments.

Weighing just 0.015kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61902
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 834 lbf
  • Static Radial Load 504 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 34000 rpm
  • Weight 0.015 kg
Stainless Steel Deep Groove Ball Bearings W 61902 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61902 Bearing for Precision Tasks?

W 61902 Bearing is crafted from stainless steel, offering excellent corrosion resistance and durability.
Its compact size of 15 mm×28 mm×7 mm makes it ideal for applications where space is limited.

The single-row design ensures smooth radial load handling, with a dynamic radial load capacity of 834 lbf.
With a maximum speed of 34,000 rpm, it delivers reliable performance in high-speed operations.

W 61902 Bearing operates efficiently within a temperature range of -30° to 120 °C.
Its open design allows for easy lubrication, ensuring minimal maintenance requirements.

Application

Industrial Uses of W 61902 Bearing
W 61902 Bearing works well in small industrial machines, especially where corrosion resistance is needed. Its stainless steel build handles moisture and chemicals without rusting.

In home appliances like fans or mixers, W 61902 Bearing ensures quiet and smooth rotation. The compact size fits neatly into tight spaces common in household devices.

For medical tools such as dental drills, W 61902 Bearing offers reliable performance due to its hygienic stainless steel materials. It meets cleanliness standards while maintaining precision.

Automotive applications like window regulators benefit from W 61902 Bearing’s durability. The metric sizing makes it easy to replace in various car models.
