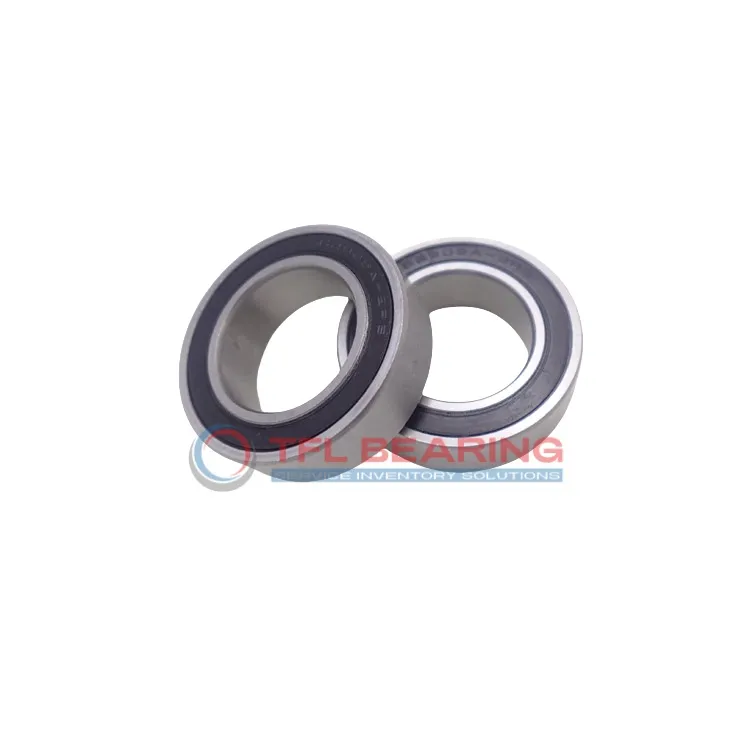

Stainless Steel Deep Groove Ball Bearings W 61804-2RS1/R799

Stainless Steel Deep Groove Ball Bearings W 61804-2RS1/R799

The W 61804-2RS1/R799 is a compact stainless steel deep groove ball bearing, measuring 20mm by 32mm by 7mm. Its sealed design keeps out dust and moisture, making it low-maintenance.

With a dynamic radial load capacity of 701 lbf, it handles moderate loads smoothly. It spins up to 13,000 RPM, suitable for fast-moving applications.

The stainless steel construction resists corrosion, while the chrome steel cage adds durability. It operates in temperatures from -30°C to 120°C.

Ideal for small machinery, food processing equipment, or medical devices where hygiene and reliability matter. Weighing just 17 grams, it’s lightweight yet sturdy. Compliant with REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61804-2RS1/R799
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 701 lbf
  • Static Radial Load 468 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.017 kg
  • Price（$） 11.92
Stainless Steel Deep Groove Ball Bearings W 61804-2RS1/R799 dimension drawing
Download DWG Download PDF

Features

Performance Features of W 61804-2RS1/R799 Bearing

W 61804-2RS1/R799 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its sealed design protects against dust and moisture, ensuring reliable performance in various environments.
The dynamic radial load capacity of 701 lbf makes it suitable for demanding applications.
With a maximum speed of 13,000 rpm, it delivers efficient and smooth operation.

Application

Where Is W 61804-2RS1/R799 Bearing Used?
W 61804-2RS1/R799 Bearing is commonly seen in small electric motors, where its compact size and sealed design keep dust and moisture out.

The stainless steel construction makes it ideal for food processing equipment, where resistance to corrosion and frequent washdowns is essential.

In household appliances like washing machines, W 61804-2RS1/R799 Bearing ensures quiet and smooth operation over long periods.

Its metric dimensions and ABEC 1 tolerance also make it a reliable choice for precision instruments in laboratories.
