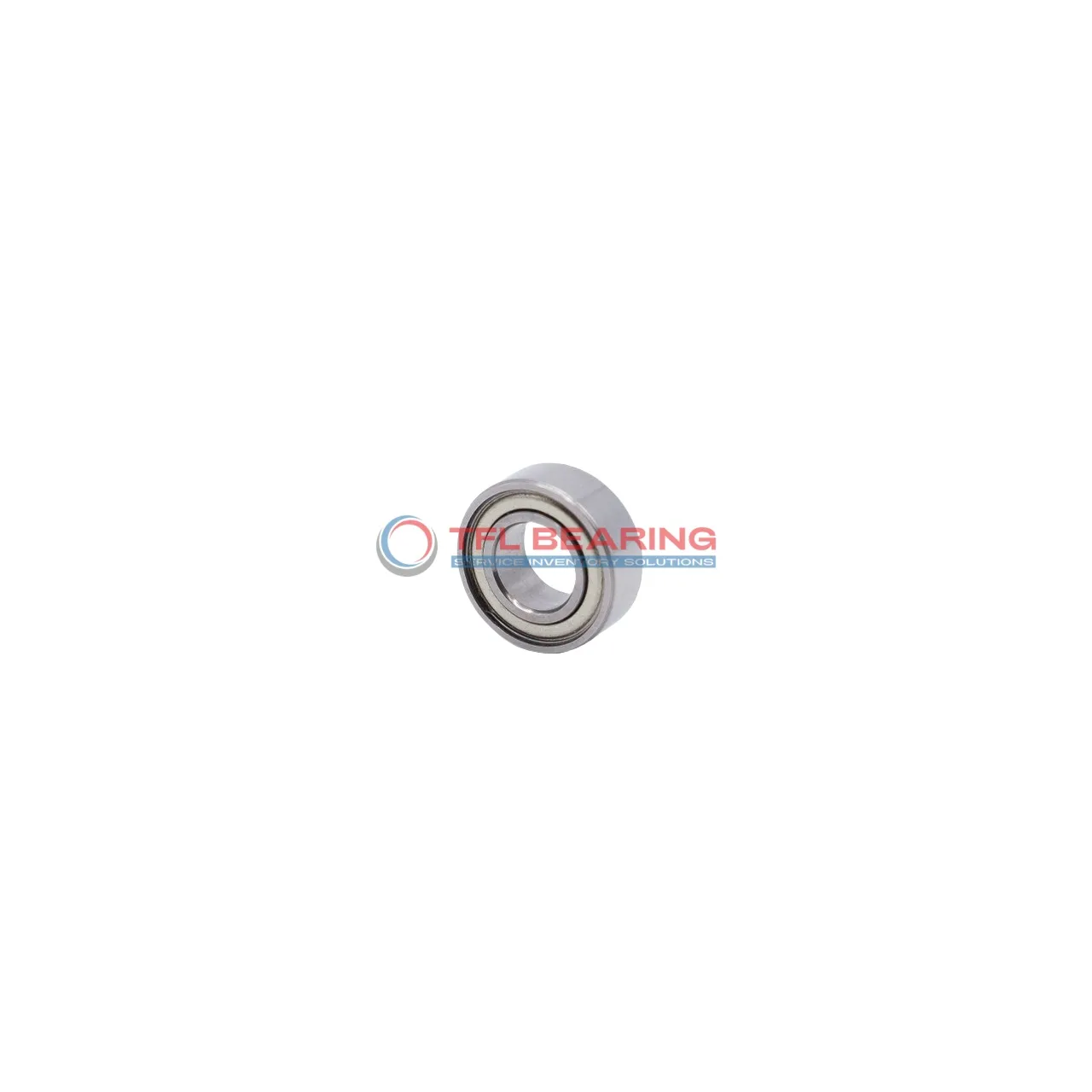

Stainless Steel Deep Groove Ball Bearings W 61800-2Z

Stainless Steel Deep Groove Ball Bearings W 61800-2Z

The W 61800-2Z is a compact stainless steel deep groove ball bearing, measuring 10mm by 19mm by 5mm. It handles radial loads up to 333 lbf and spins smoothly at speeds up to 38,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for small electric motors, medical devices, or food processing equipment where hygiene matters.

Weighing just 5.1 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61800-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 333 lbf
  • Static Radial Load 187 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 38000 rpm
  • Weight 0.0051 kg
  • Price（$） 5.26
Stainless Steel Deep Groove Ball Bearings W 61800-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 61800-2Z Bearing Reduce Friction?

W 61800-2Z Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, reducing wear and extending service life.

The single-row deep groove design allows for efficient radial load handling, up to 333 lbf.
With a maximum speed of 38,000 rpm, it offers reliable performance in high-speed applications.

W 61800-2Z Bearing operates in temperatures from -30° to 120°C, suitable for various environments.
Its compact size (10 mm×19 mm×5 mm) makes it ideal for space-constrained applications.

Application

Common Applications of W 61800-2Z Bearing
W 61800-2Z Bearing is widely used in small electric motors, such as those found in household appliances like blenders and mixers. Its stainless steel construction makes it resistant to corrosion, ideal for environments where moisture is present.

In industrial settings, W 61800-2Z Bearing fits well in conveyor systems and packaging machinery due to its compact size and reliable radial load capacity. The shielded design helps keep contaminants out, extending its service life.

For medical devices, W 61800-2Z Bearing offers smooth operation in equipment like dental handpieces and lab instruments. The grease lubrication ensures quiet performance, which is essential in sensitive environments.

Automotive applications include small components like window regulators and wiper motors, where W 61800-2Z Bearing’s durability and precision are valued. Its metric dimensions make it easy to integrate into various vehicle designs.
