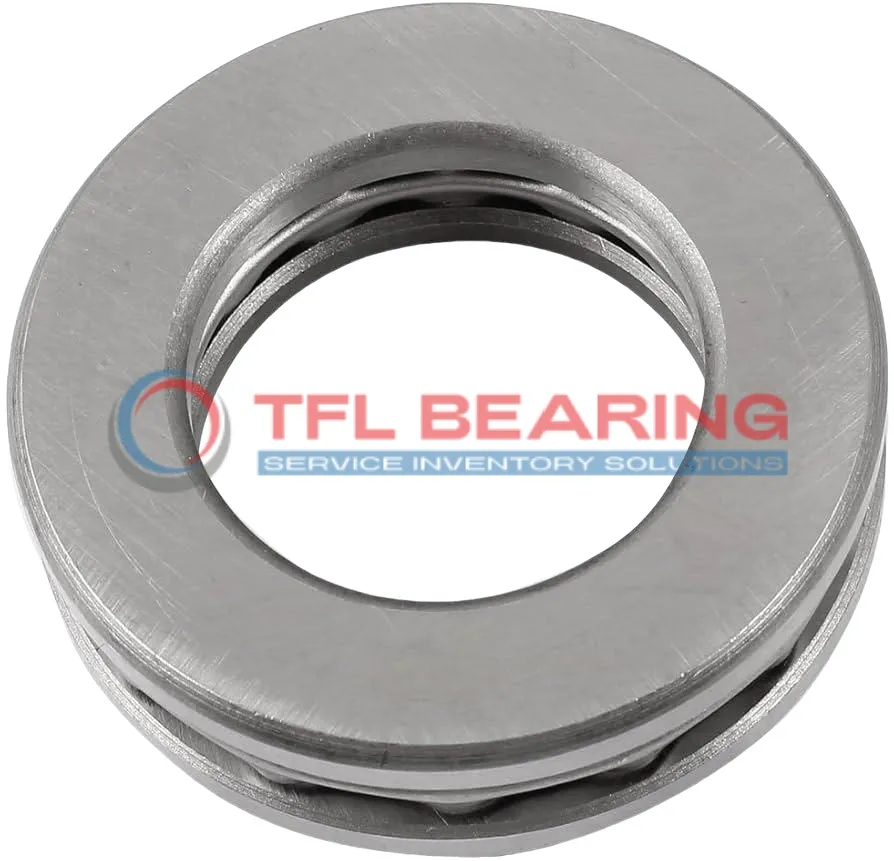

Thrust Ball Bearing With Outside Band T-100-44

Thrust Ball Bearing With Outside Band T-100-44

The T-100-44 is a thrust ball bearing with a 3-inch bore and 4.625-inch outer diameter, crafted from sturdy 52100 chrome steel. It handles heavy thrust loads, with a dynamic capacity of 15780 lbf and static capacity of 66313 lbf.

Its design includes 19 balls, each 5/8-inch in diameter, ensuring smooth operation under pressure. The bearing performs well across speeds, from 100 RPM to 1500 RPM, with varying load capacities.

Requiring regular lubrication, it operates efficiently in temperatures from -30°C to 110°C. The outside band adds stability, making it suitable for high-load applications.

Ideal for industrial machinery or heavy equipment, this bearing is robust yet manageable at 1.53 kg. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-44
  • Brand TFL
  • Bore Dia 3"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 3.031250"
  • Outer Dia 4.625000"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1.5"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/8"
  • Ball Qty 19
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 15780 lbf
  • Dynamic Thrust Load(100 RPM) 10395 lbf
  • Dynamic Thrust Load(500 RPM) 6405 lbf
  • Dynamic Thrust Load(1500 RPM) 4600 lbf
  • Static Thrust Load 66313 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.53 kg

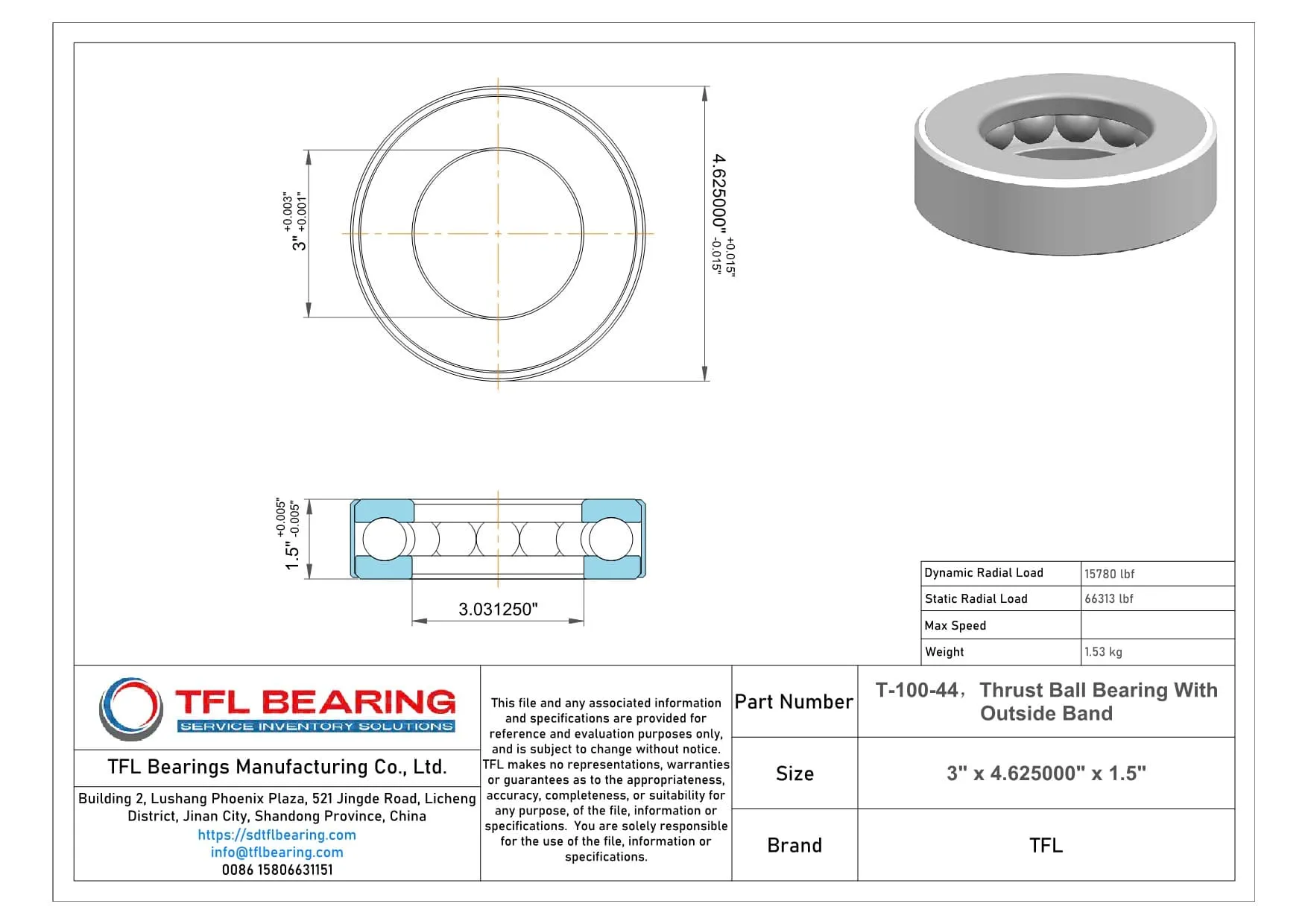

Thrust Ball Bearing With Outside Band T-100-44 dimension drawing
Download DWG Download PDF

Features

Why Choose T-100-44 Bearing for Precision Tasks?

T-100-44 Bearing is crafted from 52100 chrome steel, offering strong resistance to heavy thrust loads.
Its dynamic thrust load capacity reaches 15780 lbf, ensuring reliable performance in demanding applications.

The bearing’s 19-ball design enhances load distribution, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

T-100-44 Bearing requires lubrication, ensuring smooth operation and minimising maintenance needs.
Its inch-based measurements make it compatible with systems using imperial units.

Application

Key Fields for T-100-44 Bearing
T-100-44 Bearing is commonly used in industrial machinery, especially for heavy thrust loads in equipment like hydraulic presses and gear reducers. Its inch sizing makes it a good fit for North American machinery standards.

In automotive applications, T-100-44 Bearing handles high axial loads in components such as differential systems and steering columns. The chrome steel construction ensures durability under constant stress.

For automation systems, T-100-44 Bearing provides reliable performance in robotic actuators and assembly line equipment. The precise tolerances help maintain smooth operation in repetitive tasks.

Medical devices like MRI machines benefit from T-100-44 Bearing’s stable load capacity and consistent performance. The required lubrication ensures long-term reliability in critical healthcare environments.

Household appliances, particularly heavy-duty mixers and power tools, use T-100-44 Bearing for its balance of strength and smooth operation. The temperature range suits both indoor and outdoor use.
