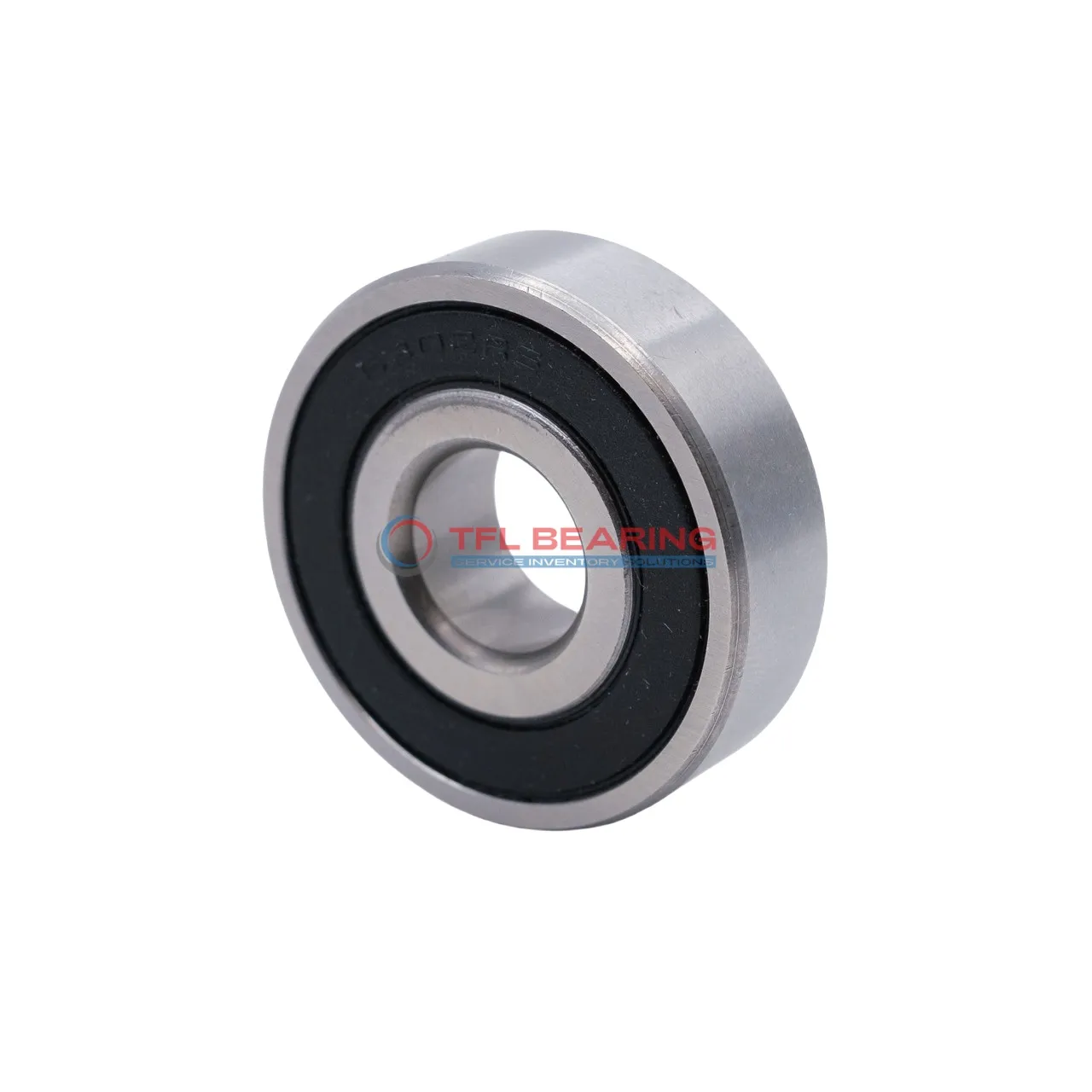

Stainless Steel Deep Groove Ball Bearings W 6008-2RS1/W64F

Stainless Steel Deep Groove Ball Bearings W 6008-2RS1/W64F

The W 6008-2RS1/W64F is a stainless steel deep groove ball bearing with a 40mm bore and 68mm outer diameter, designed for radial loads. It handles dynamic loads up to 3282 lbf and spins smoothly at speeds up to 14,000 RPM.

Its sealed design keeps out dirt and moisture, while the solid oil lubrication ensures long-lasting performance with minimal maintenance. The stainless steel construction makes it resistant to corrosion.

This bearing is ideal for applications like food processing or marine equipment where hygiene and durability are key. It’s interchangeable with SKF bearings, making replacements easy.

Weighing just 0.17kg, it’s a lightweight yet sturdy choice for demanding environments. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6008-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3282 lbf
  • Static Radial Load 2563 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 0.17 kg
  • Price（$） 52.12
Stainless Steel Deep Groove Ball Bearings W 6008-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

Why Choose W 6008-2RS1/W64F Bearing for Precision Tasks?

W 6008-2RS1/W64F Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, making it suitable for various environments.
The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a maximum speed of 14,000 rpm, it offers reliable operation for precision applications.

Application

Industrial Uses of W 6008-2RS1/W64F Bearing
W 6008-2RS1/W64F Bearing is commonly used in industrial machinery, such as pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction ensures durability in harsh environments, making it a reliable choice for long-term use.

Where Is W 6008-2RS1/W64F Bearing Used?
In automotive applications, W 6008-2RS1/W64F Bearing can be found in electric motors and alternators, providing smooth rotation under radial loads. Its solid oil lubrication reduces maintenance needs, which is ideal for high-speed operations.

Perfect Fit for Automation: W 6008-2RS1/W64F Bearing
W 6008-2RS1/W64F Bearing works well in robotic arms and automated systems, where precision and reliability are key. The ABEC 1 tolerance ensures consistent performance, even in repetitive tasks.

Medical vs Industrial: Where W 6008-2RS1/W64F Bearing Excels
In medical devices like lab equipment, W 6008-2RS1/W64F Bearing offers quiet and smooth operation. Meanwhile, its industrial-grade strength makes it suitable for heavy machinery, balancing versatility and performance.
