Stainless Steel Deep Groove Ball Bearings W 6007

Stainless Steel Deep Groove Ball Bearings W 6007

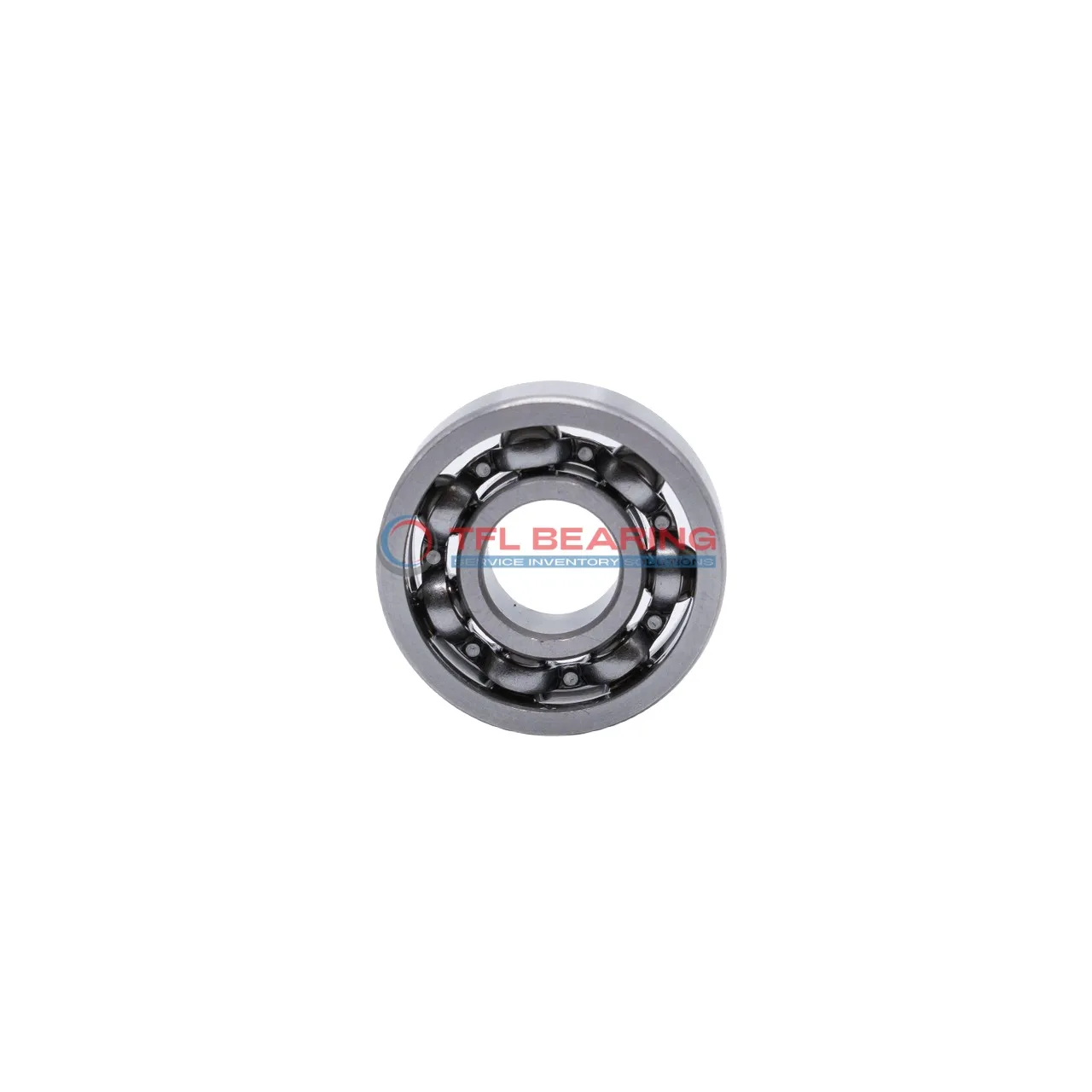

The W 6007 is a stainless steel deep groove ball bearing with a 35mm bore and 62mm outer diameter, designed for radial loads. It handles dynamic loads up to 3102 lbf and can spin at speeds up to 15000 RPM.

Made entirely from stainless steel, it resists corrosion and works well in temperatures from -30°C to 120°C. Its open design allows for easy lubrication when needed.

This single-row bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for use in food processing or marine equipment where rust resistance is key.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6007
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3102 lbf
  • Static Radial Load 2293 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.14 kg
Stainless Steel Deep Groove Ball Bearings W 6007 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6007 Bearing for Precision Tasks?

W 6007 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, with a dynamic radial load capacity of 3102 lbf.
The open seal type allows for easy maintenance and efficient lubrication.
With a maximum speed of 15,000 rpm, it delivers reliable performance in various applications.

Application

Industrial Uses of W 6007 Bearing
W 6007 Bearing is commonly used in industrial machinery like pumps and electric motors, where its stainless steel construction resists corrosion. The single-row design ensures smooth radial load handling in demanding environments.

Where Is W 6007 Bearing Used?
In automotive applications, W 6007 Bearing fits well in alternators and small gearboxes, offering reliable performance. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: W 6007 Bearing
W 6007 Bearing works efficiently in robotic arms and conveyor systems, thanks to its high-speed capability. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where W 6007 Bearing Excels
W 6007 Bearing is suitable for medical devices like centrifuges, where hygiene and durability are key. In industrial settings, it handles radial loads in food processing equipment with ease.

Essential Roles of W 6007 Bearing
W 6007 Bearing supports household appliances like washing machines, ensuring quiet operation. Its stainless steel materials make it resistant to moisture and everyday wear.
