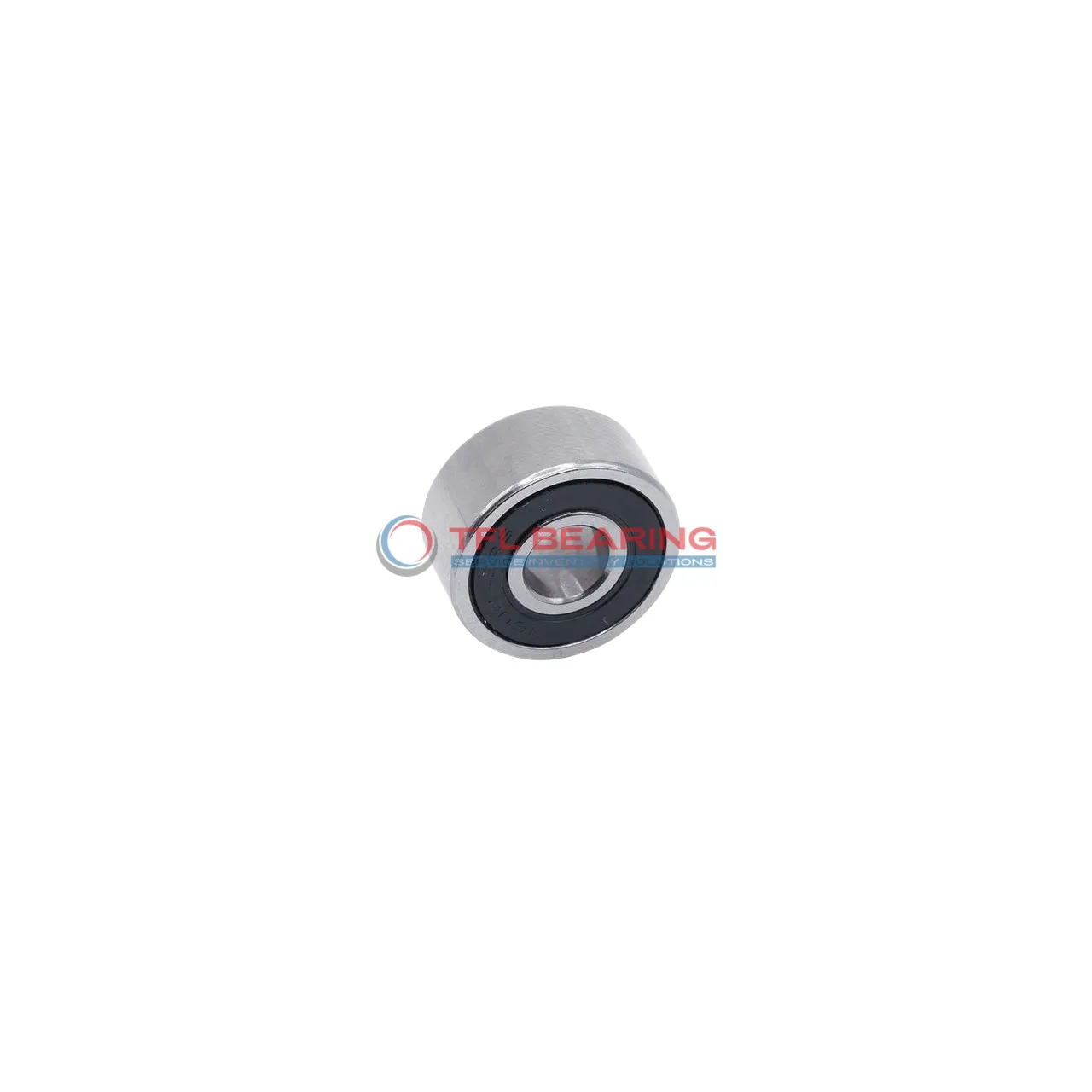

Stainless Steel Deep Groove Ball Bearings D/W R8-2RS1

Stainless Steel Deep Groove Ball Bearings D/W R8-2RS1

The D/W R8-2RS1 is a compact stainless steel deep groove ball bearing, measuring 0.5″ by 1.125″ by 0.31252″. It’s designed for radial loads and comes with sealed protection to keep dirt out.

This bearing handles dynamic loads up to 994 lbf and spins smoothly at speeds up to 16,000 RPM. Its stainless steel construction resists corrosion, making it suitable for damp or harsh environments.

The sealed design reduces maintenance needs, while the grease lubrication ensures quiet operation. It works well in temperatures from -30°C to 120°C.

Ideal for small machinery or appliances where space is limited but reliability is key. Compliant with RoHS and REACH standards, it’s a safe and durable choice for various applications. Weighing just 0.021kg, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R8-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.5"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 1.125"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.31252"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 994 lbf
  • Static Radial Load 531 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.021 kg
Stainless Steel Deep Groove Ball Bearings D/W R8-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R8-2RS1 Bearing for Precision Tasks?

D/W R8-2RS1 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The bearing handles dynamic radial loads up to 994 lbf, making it suitable for precision applications.
With a maximum speed of 16,000 rpm, it delivers reliable performance without compromising efficiency.

D/W R8-2RS1 Bearing’s grease lubrication reduces maintenance needs, extending its service life.
Its tight tolerances ensure consistent performance, even under demanding conditions.

Application

Industrial Uses of D/W R8-2RS1 Bearing
D/W R8-2RS1 Bearing is commonly used in food processing equipment, where its stainless steel construction resists corrosion from frequent washdowns. The sealed design keeps contaminants out, ensuring smooth operation in humid environments.

In automotive applications, D/W R8-2RS1 Bearing fits well in small electric motors and pumps, thanks to its compact inch sizing. The grease lubrication helps maintain performance even under continuous radial loads.

For home appliances like washing machines, D/W R8-2RS1 Bearing offers quiet and reliable rotation. Its stainless steel balls and cage reduce wear, extending the lifespan of everyday devices.

Where Is D/W R8-2RS1 Bearing Used?
You’ll often find D/W R8-2RS1 Bearing in laboratory equipment, where precision and cleanliness are key. The sealed design prevents dust and liquids from affecting its performance.

In robotics, D/W R8-2RS1 Bearing supports small joints and actuators, providing smooth movement. Its corrosion-resistant materials make it suitable for both indoor and outdoor robotic applications.
