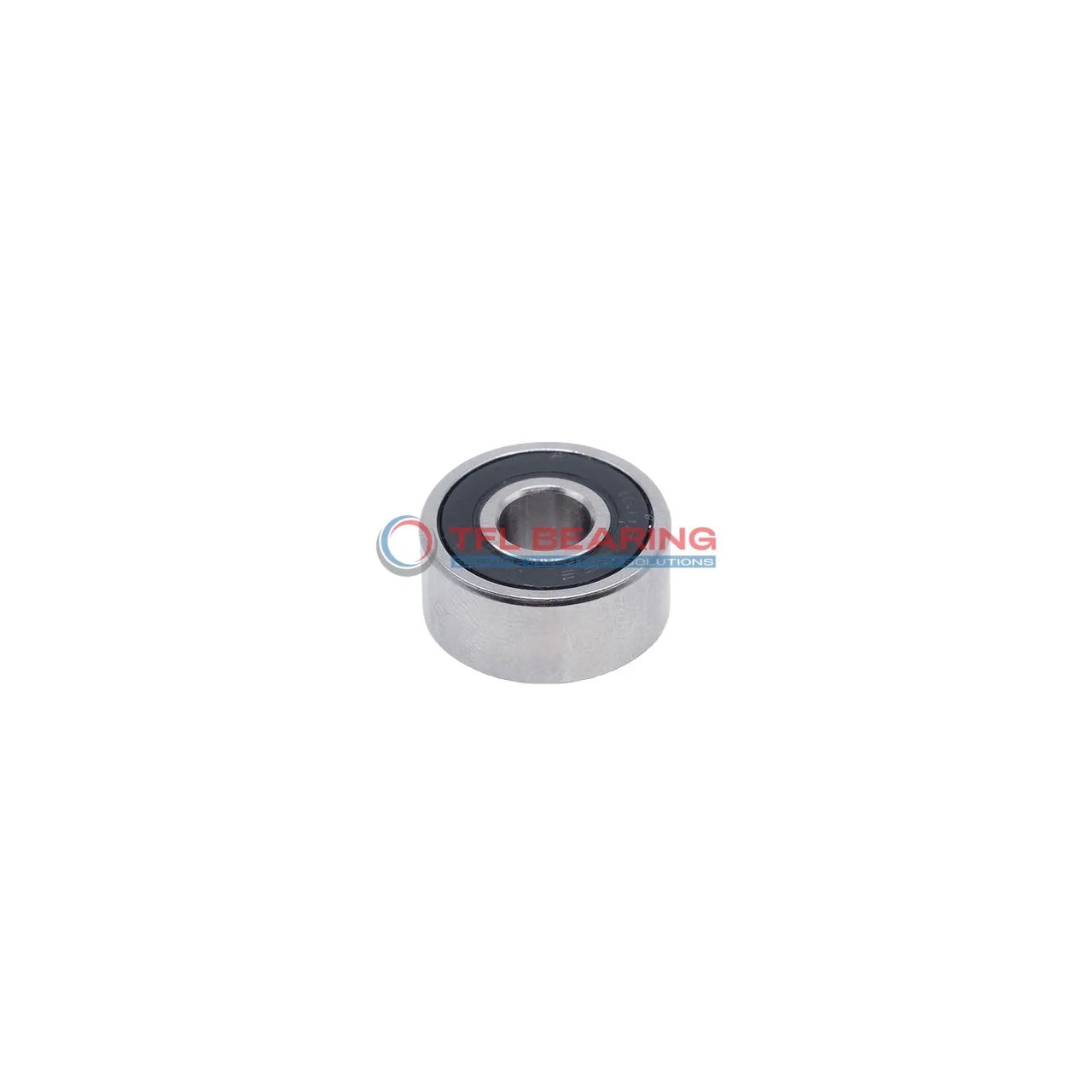

Stainless Steel Deep Groove Ball Bearings D/W R3A-2RS1

Stainless Steel Deep Groove Ball Bearings D/W R3A-2RS1

The D/W R3A-2RS1 is a compact stainless steel deep groove ball bearing, measuring just 0.18748″ in bore and 0.625″ in outer diameter. Its sealed design keeps grease in and dirt out, making it low-maintenance.

With a dynamic radial load capacity of 192 lbf, it handles moderate loads while spinning smoothly at speeds up to 28,000 RPM. The all-stainless construction resists corrosion and works in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Its small size (0.19598″ wide) and lightweight (0.0049kg) make it ideal for precision instruments or small machinery.

The P0 tolerance and CN radial clearance ensure consistent performance in applications like dental tools or miniature motors where space is limited. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R3A-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.18748"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.625"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.19598"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 192 lbf
  • Static Radial Load 71 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 28000 rpm
  • Weight 0.0049 kg
Stainless Steel Deep Groove Ball Bearings D/W R3A-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does D/W R3A-2RS1 Bearing Reduce Friction?

D/W R3A-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.
Its precision-engineered single row construction maintains consistent performance under radial loads up to 192 lbf.
The grease lubrication and sealed design minimise wear, extending the bearing’s service life.
With a maximum speed of 28,000 rpm, it offers reliable efficiency in various applications.

Application

Common Applications of D/W R3A-2RS1 Bearing
D/W R3A-2RS1 Bearing is a great fit for small electric motors, thanks to its compact inch sizing and sealed design which keeps dust out. The stainless steel construction also makes it resistant to corrosion in humid environments.

In household appliances like food processors, D/W R3A-2RS1 Bearing ensures smooth rotation with minimal noise. Its grease lubrication helps maintain performance over time without frequent maintenance.

For precision instruments such as dental drills, D/W R3A-2RS1 Bearing offers reliable radial load support. The P0 tolerance class ensures consistent accuracy in demanding medical applications.

Automotive accessories like window regulators benefit from D/W R3A-2RS1 Bearing’s durability. The sealed design protects against road debris, extending the bearing’s lifespan in tough conditions.

In robotics, D/W R3A-2RS1 Bearing is often used in joint mechanisms due to its lightweight and high-speed capability. The stainless steel cage adds extra stability during rapid movements.
