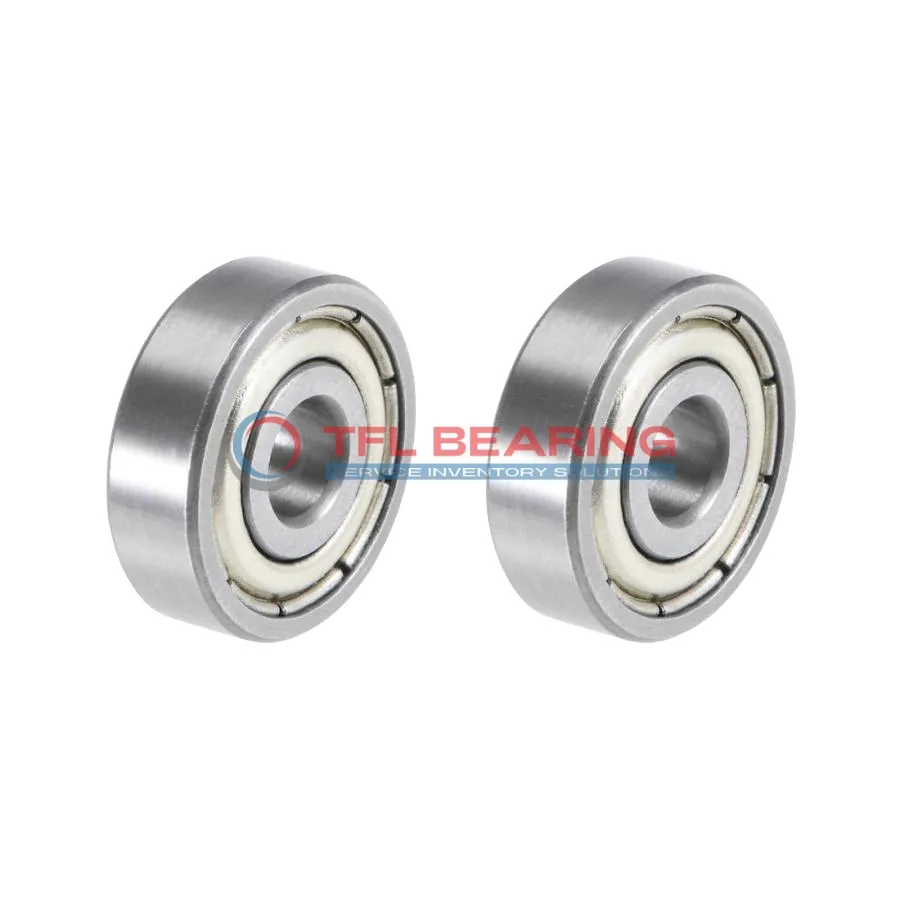

Single Row Deep Groove Ball Bearings 6314-2Z/GFF/R806

Single Row Deep Groove Ball Bearings 6314-2Z/GFF/R806

The 6314-2Z/GFF/R806 is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 15332 lbf and runs smoothly at speeds up to 4500 RPM.

Its shielded design keeps dirt out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 2530g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314-2Z/GFF/R806
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
Single Row Deep Groove Ball Bearings 6314-2Z/GFF/R806 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6314-2Z/GFF/R806 Bearing

6314-2Z/GFF/R806 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 15332 lbf.
The shielded design protects against contaminants, ensuring smooth operation in various environments.

With a maximum speed of 4,500 rpm, it balances performance and durability for industrial applications.
The ABEC 1 tolerance class ensures reliable precision, suitable for general-purpose use.

Its temperature range of -30° to 120°C allows operation in diverse conditions without compromising performance.
The chrome steel cage maintains ball alignment, reducing friction and extending bearing life.

Application

Industrial Uses of 6314-2Z/GFF/R806 Bearing
6314-2Z/GFF/R806 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6314-2Z/GFF/R806 Bearing supports components like alternators and fans, providing reliable performance under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6314-2Z/GFF/R806 Bearing is ideal for robotic arms and conveyor belts, where smooth operation is essential. The ABEC 1 tolerance ensures consistent performance in precision applications.

In household appliances like washing machines, 6314-2Z/GFF/R806 Bearing offers quiet and efficient operation. Its shielded design helps extend the lifespan by reducing dust and debris ingress.
