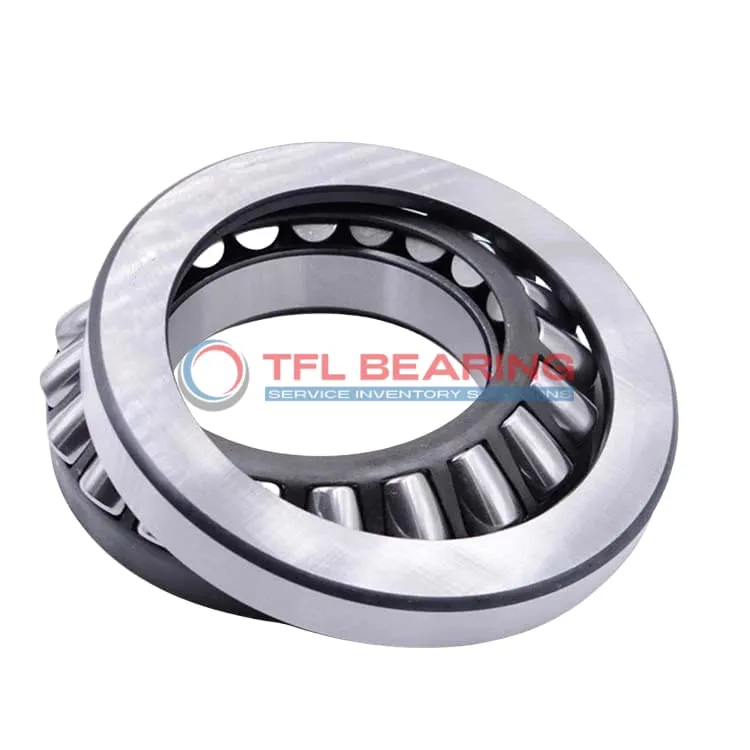

Spherical Roller Thrust Bearings 29368

Spherical Roller Thrust Bearings 29368

The 29368 is a spherical roller thrust bearing with a large 340mm bore and 540mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 609232 lbf and operates smoothly at speeds up to 1100 RPM.

Made from durable steel, its single-row design ensures reliable performance under demanding conditions. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers help accommodate misalignment, making it suitable for heavy machinery like crushers or mining equipment. Weighing 105kg, it’s robust for industrial applications.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement. Ideal for high-load scenarios where durability and alignment flexibility are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29368
  • Brand TFL
  • Interchangeable SKF
  • Size 340 mm x 540 mm x 122 mm
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.04 to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05 to 0
  • Width 122 mm
  • Outside Diameter(d1) 520 mm
  • Shoulder Diameter Outer Ring (D1) 428 mm
  • Height Shaft Washer Cage(B1) 117 mm
  • Height Housing Washer(C) 59.5 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 192 mm
  • Chamfer Dimension Shaft Washer(r1,2) 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 609232 lbf
  • Static Thrust Load 2472898 lbf
  • Max Speed 1100 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 105 kg
  • Height Tolerance -0.175 to 0
  • Price（$） 1849.5

Features

Why Choose 29368 Bearing for Precision Tasks?

29368 Bearing is built with steel rollers and cage, offering robust performance under combined loads.
Its dynamic thrust load capacity of 609232 lbf ensures reliability in heavy-duty applications.

The spherical roller design allows for smooth operation, even under misalignment conditions.
With a maximum speed of 1100 rpm, it balances efficiency and durability.

29368 Bearing operates within a temperature range of -30 to 100°C, suitable for various environments.
Its precise dimensions and tolerances ensure easy installation and consistent performance.

Application

Industrial Uses of 29368 Bearing
29368 Bearing is commonly used in heavy machinery like mining equipment and large gearboxes, where its spherical roller design handles combined loads efficiently. The steel construction ensures durability even in demanding industrial environments.

Where Is 29368 Bearing Used?
You’ll often find 29368 Bearing in wind turbines and marine propulsion systems, thanks to its ability to manage high thrust loads. Its metric sizing makes it a versatile choice for global applications.

Built for Heavy-Duty Use: 29368 Bearing
29368 Bearing excels in applications like hydraulic presses and rolling mills, where its robust design supports continuous operation. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 29368 Bearing
In automotive settings, 29368 Bearing is ideal for large trucks and buses, handling heavy loads with ease. For aerospace, its precision and durability make it suitable for ground support equipment.

Key Fields for 29368 Bearing
29368 Bearing is a go-to choice for construction equipment like cranes and excavators, where its high load capacity is essential. The lubrication requirement ensures smooth performance even under stress.
