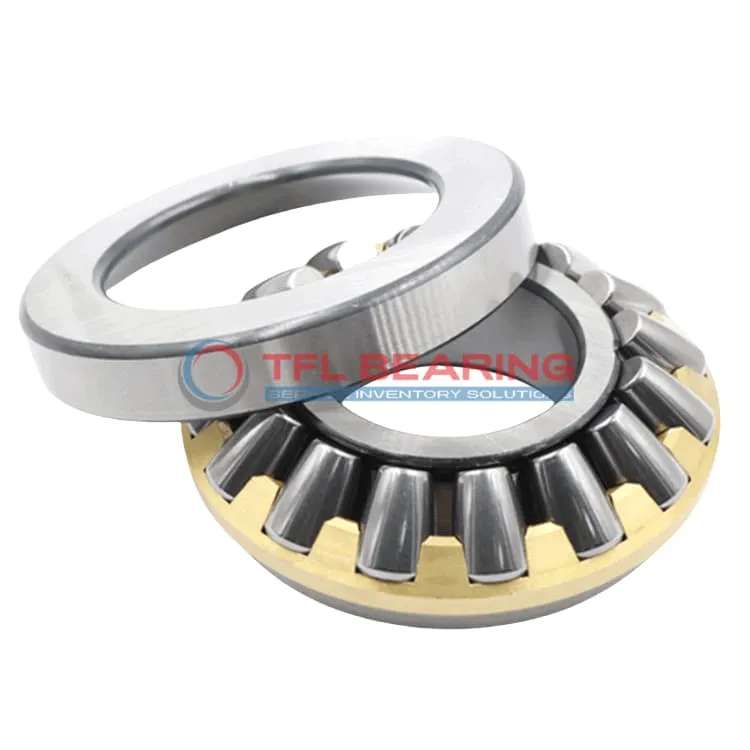

Spherical Roller Thrust Bearings 29336 E

Spherical Roller Thrust Bearings 29336 E

The 29336 E is a spherical roller thrust bearing with a 180mm bore and 300mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 321477 lbf and operates smoothly at speeds up to 2000 RPM.

Made from durable steel, its single-row design ensures reliable performance under demanding conditions. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers accommodate misalignment, making it suitable for applications like heavy machinery or industrial gearboxes. Weighing 19.5kg, it’s robust yet manageable for its size.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, offering a dependable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29336 E
  • Brand TFL
  • Interchangeable SKF
  • Size 180 mm x 300 mm x 73 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.03 to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.035 to 0
  • Width 73 mm
  • Outside Diameter(d1) 270 mm
  • Shoulder Diameter Outer Ring (D1) 227 mm
  • Height Shaft Washer Cage(B1) 66.2 mm
  • Height Housing Washer(C) 35.5 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 103 mm
  • Chamfer Dimension Shaft Washer(r1,2) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 321477 lbf
  • Static Thrust Load 966678 lbf
  • Max Speed 2000 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 19.5 kg
  • Height Tolerance -0.15 to 0
  • Width Shaft Washer Or Length Of Shaft(B) 46 mm
  • Price（$） 744.3

Features

How Is 29336 E Bearing Engineered for Reliability?

29336 E Bearing features a spherical roller design, handling combined loads with ease.
Its steel rollers and cage provide robust support, ensuring durability under heavy thrust loads.

With a dynamic thrust load capacity of 321477 lbf, it performs reliably in demanding conditions.
The bearing’s design allows for smooth operation even at speeds up to 2000 rpm.

29336 E Bearing operates efficiently within a temperature range of -30 to 100°C.
Its precise dimensions and tolerances ensure a secure fit and long service life.

Application

Industrial Uses of 29336 E Bearing
29336 E Bearing is commonly used in heavy machinery like crushers and mining equipment, where its spherical roller design handles combined loads efficiently. The steel construction ensures durability even in demanding environments.

What Makes 29336 E Bearing a Preferred Choice?
In wind turbines, 29336 E Bearing supports the main shaft, providing reliable performance under varying loads and speeds. Its high dynamic thrust load capacity makes it suitable for renewable energy applications.

Built for Heavy-Duty Use: 29336 E Bearing
For conveyor systems in industrial plants, 29336 E Bearing offers smooth operation and long service life. The metric sizing ensures compatibility with a wide range of equipment.

Automotive vs Aerospace: Applications of 29336 E Bearing
In large vehicles like trucks and buses, 29336 E Bearing is used in transmissions to manage heavy thrust loads. Its robust design also makes it a candidate for certain aerospace components.

Perfect Fit for Automation: 29336 E Bearing
29336 E Bearing can be found in robotic arms and automated assembly lines, where precision and reliability are key. The steel cage enhances its performance in high-speed scenarios.
