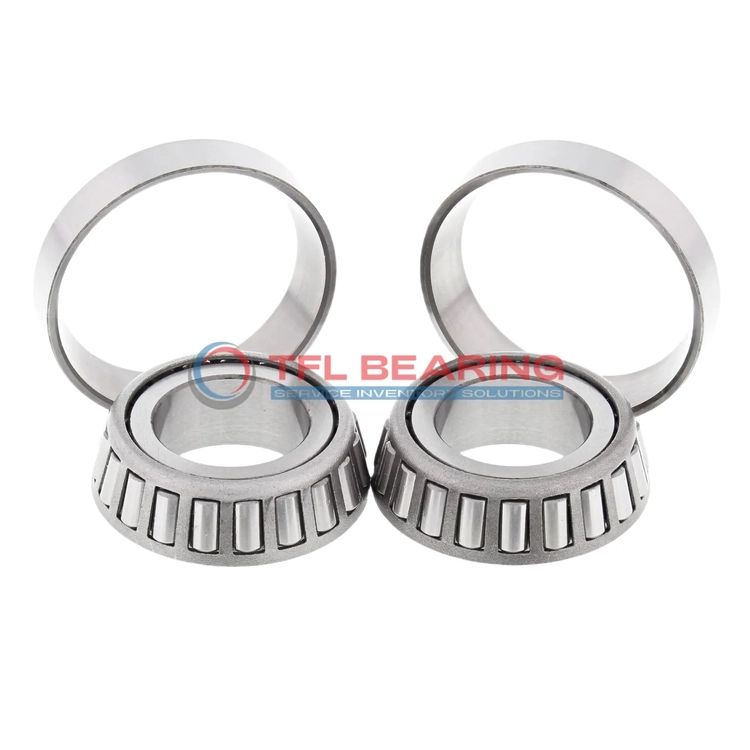

TS (Single Row Tapered Roller Bearings) (Imperial) 837-832V

TS (Single Row Tapered Roller Bearings) (Imperial) 837-832V

The 837-832V is a single-row tapered roller bearing with a 3″ bore and 6.625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 109,000 lbf radially and 14,500 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where robust performance is needed.

Weighing 12.7 lb, it’s built to last while meeting RoHS and REACH standards for safety and environmental compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 837-832V
  • Brand TFL
  • Interchangeable Timken
  • Size 3" x 6.625" x 2.1251"
  • Bore Dia 3"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 6.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.219"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.1251"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.29"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 6.14"
  • Cup Backface Backing Diameter 5.87"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.73"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 837
  • Cup Part Number 832V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 835
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 109000 lbf
  • Static Radial Load 117000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 28300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 14500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.700 lb

Features

Engineered for Precision: 837-832V Bearing

837-832V Bearing features a single row tapered roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 109,000 lbf, making it suitable for heavy-duty use.
With a static radial load of 117,000 lbf, it provides reliable performance under extreme conditions.

837-832V Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options allow for flexibility in various industrial settings.

The steel cage maintains roller alignment, reducing friction and extending service life.
This design ensures smooth operation even at high speeds and under substantial loads.

837-832V Bearing is compatible with Timken models, offering easy replacement options.
Its open seal type simplifies maintenance while ensuring consistent performance.

Application

Industrial Uses of 837-832V Bearing
The 837-832V Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effortlessly. Its chrome steel construction ensures durability even in demanding environments.

What Makes 837-832V Bearing a Preferred Choice?
In automotive applications, 837-832V Bearing fits well in wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. The inch sizing makes it compatible with many North American vehicle designs.

Built for Heavy-Duty Use: 837-832V Bearing
This bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 837-832V Bearing
While 837-832V Bearing is popular in truck axles and heavy vehicles, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both sectors.

Perfect Fit for Automation: 837-832V Bearing
In automated production lines, 837-832V Bearing supports conveyor rollers and robotic arms with smooth, low-friction rotation. Its standard radial clearance adapts well to varying load conditions.
