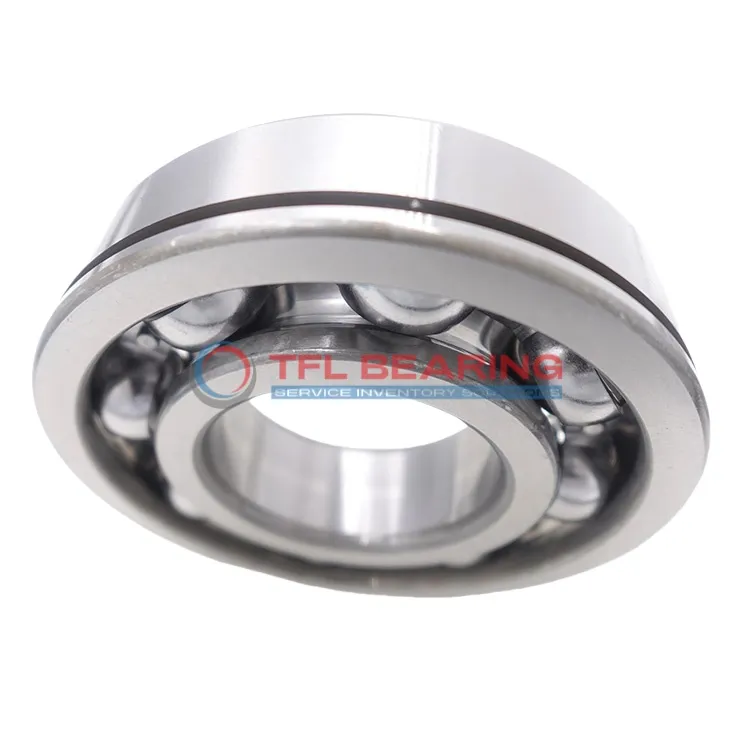

Snap Ring Groove Ball Bearings 6314 N

Snap Ring Groove Ball Bearings 6314 N

The 6314 N is a snap ring groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 24954 lbf and operates smoothly at speeds up to 6300 RPM.

Its open design and stainless steel cage ensure durability, while the snap ring groove on the outer ring provides secure mounting. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads and secure positioning are key.

Weighing 2.53kg, it offers a robust build for industrial use. Compliant with REACH standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314 N
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 150 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 15287 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 2.53 kg
Snap Ring Groove Ball Bearings 6314 N dimension drawing
Download DWG Download PDF

Features

Performance Features of 6314 N Bearing

6314 N Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 24954 lbf, ensuring reliable performance in heavy-duty applications.

The snap ring groove design simplifies installation and enhances stability during operation.
With a maximum speed of 6,300 rpm, it balances durability and efficiency in various conditions.

Stainless steel cage maintains ball alignment, reducing wear and extending service life.
6314 N Bearing operates smoothly in temperatures ranging from -30° to 120°C.

Application

Industrial Uses of 6314 N Bearing
6314 N Bearing is commonly used in heavy machinery like pumps and gearboxes, where its snap ring groove ensures secure mounting. The open design allows for easy lubrication, extending service life in demanding conditions.

What Makes 6314 N Bearing a Preferred Choice?
With its chrome steel construction, 6314 N Bearing handles high radial loads in applications such as conveyor systems and industrial fans. The P6 tolerance class ensures precise performance in critical operations.

Perfect Fit for Automation: 6314 N Bearing
In robotic arms and automated assembly lines, 6314 N Bearing provides reliable rotation thanks to its stainless steel cage. The snap ring groove simplifies installation, reducing downtime during maintenance.

Automotive vs Industrial: Applications of 6314 N Bearing
6314 N Bearing works well in vehicle transmissions, offering durability under constant motion. In industrial settings, its high dynamic load capacity makes it suitable for heavy equipment like compressors.
