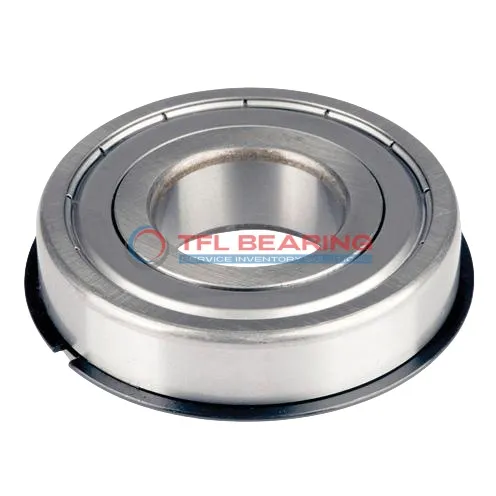

Snap Ring Groove Ball Bearings 6310-ZNRJ

The 6310-ZNRJ is a shielded snap ring groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM.

Its snap ring design ensures secure fitting, while the shielded construction keeps out dust and debris. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads and secure mounting are key.

Weighing 1050g, it offers a sturdy build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6310-ZNRJ
Brand TFL
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 27 mm
Width Tolerance -0.120mm to 0
Outside Diameter Of Snap Ring 116.6 mm
Width Of Snap Ring 2.46 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Dynamic Radial Load 13938 lbf
Static Radial Load 861 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH Compliant
Max Speed 6000 rpm
Weight 1050 g
Price（$） 21.2

Snap Ring Groove Ball Bearings 6310-ZNRJ dimension drawing

Download DWG Download PDF

Features

How Does 6310-ZNRJ Bearing Reduce Friction?

6310-ZNRJ Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The shielded design protects against contaminants, maintaining performance in various conditions.
With a dynamic radial load capacity of 13938 lbf, it handles heavy loads efficiently.
Its snap ring outer ring design simplifies installation and enhances stability.

Application

Common Applications of 6310-ZNRJ Bearing
6310-ZNRJ Bearing works well in industrial settings, especially for machinery like pumps and electric motors where radial load support is needed. Its shielded design helps keep out dust and debris, extending its service life.

In automotive applications, 6310-ZNRJ Bearing fits nicely into wheel hubs and transmission systems, providing smooth rotation under various loads. The snap ring feature ensures secure placement, reducing the risk of misalignment during operation.

For automation equipment, 6310-ZNRJ Bearing offers reliable performance in robotic arms and conveyor belts. The chrome steel construction handles moderate speeds efficiently, making it a solid choice for repetitive motion tasks.

Around the home, 6310-ZNRJ Bearing can be found in appliances like washing machines, where its durability keeps things running quietly. The metric sizing makes replacements straightforward for most European-made devices.
