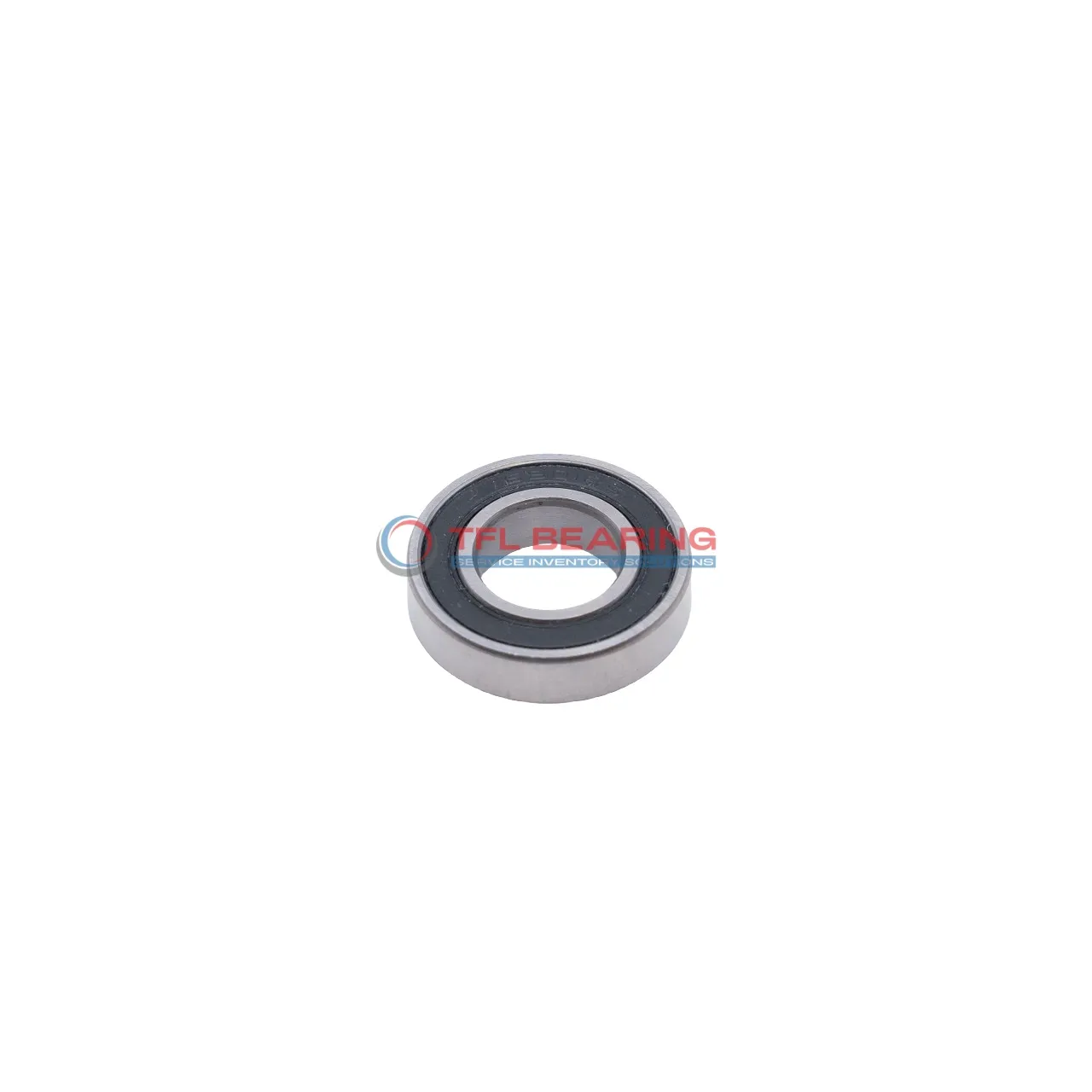

Single Row Deep Groove Ball Bearings 6201-2RSH/C3VT304F7

The 6201-2RSH/C3VT304F7 is a compact single row deep groove ball bearing, measuring 12mm in bore and 32mm in outer diameter, with a width of 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance and long-lasting. The C3 radial clearance allows for slight misalignment or thermal expansion.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial applications. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing just 37g, it’s lightweight yet robust. Ideal for electric motors, pumps, or small machinery where reliable radial load support is needed. Compliant with RoHS and REACH standards.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6201-2RSH/C3VT304F7
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.011mm to 0
Width 10 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1529 lbf
Static Radial Load 686 lbf
Max Speed 22000 rpm
Weight 37 g

Single Row Deep Groove Ball Bearings 6201-2RSH/C3VT304F7 dimension drawing

Download DWG Download PDF

Features

How Does 6201-2RSH/C3VT304F7 Bearing Reduce Friction?

6201-2RSH/C3VT304F7 Bearing features a deep groove design, optimised for smooth radial load distribution.
The sealed construction helps retain lubrication, reducing friction and wear over time.

Made from chrome steel, both the rings and balls ensure durability and consistent performance.
Its C3 radial clearance allows for slight thermal expansion, maintaining efficiency under varying temperatures.

With a maximum speed of 22,000 rpm, it delivers reliable operation in high-speed applications.
The ABEC 1 tolerance ensures adequate precision for general industrial use.

Application

Common Applications of 6201-2RSH/C3VT304F7 Bearing
In industrial settings, 6201-2RSH/C3VT304F7 Bearing is a go-to for radial load support in machinery like pumps and electric motors. Its sealed design keeps contaminants out, extending service life even in dusty environments.

How Does 6201-2RSH/C3VT304F7 Bearing Improve Performance?
For automotive applications, 6201-2RSH/C3VT304F7 Bearing ensures smooth rotation in components such as alternators and fans. The C3 clearance allows for thermal expansion, making it reliable under varying temperatures.

Built for Heavy-Duty Use: 6201-2RSH/C3VT304F7 Bearing
In automation systems, 6201-2RSH/C3VT304F7 Bearing handles high-speed operations in robotic arms and conveyor belts. The chrome steel construction offers durability without compromising on precision.

Medical vs Industrial: Where 6201-2RSH/C3VT304F7 Bearing Excels
While suitable for industrial gear, 6201-2RSH/C3VT304F7 Bearing also fits medical devices like centrifuges, where its sealed design prevents lubrication leaks. The ABEC 1 tolerance ensures consistent performance in sensitive applications.

Perfect Fit for Automation: 6201-2RSH/C3VT304F7 Bearing
In consumer electronics, 6201-2RSH/C3VT304F7 Bearing is often used in small appliances like blenders and printers. Its compact size and radial load capacity make it ideal for space-constrained designs.
