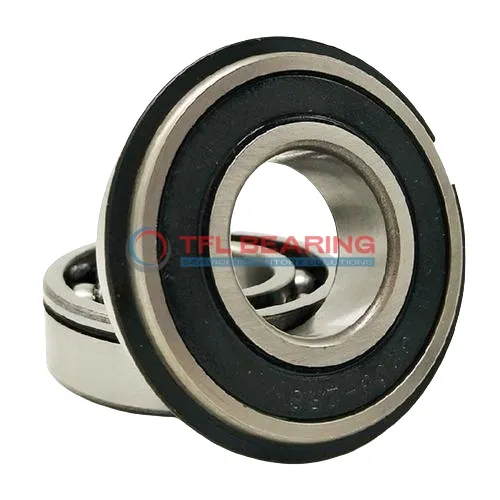

Snap Ring Groove Ball Bearings 6305-2RSNR

Snap Ring Groove Ball Bearings 6305-2RSNR

The 6305-2RSNR is a sealed, single-row ball bearing with a 25mm bore and 62mm outer diameter, made from sturdy chrome steel. It handles radial loads up to 4631 lbf and can spin at speeds up to 11000 RPM.

Its snap ring groove on the outer ring keeps it securely in place, while the sealed design protects against dust and dirt. The chrome steel cage adds durability, making it suitable for long-term use.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for applications like electric motors or pumps where reliable radial load support is needed.

Weighing 232g, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RSNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 232 g
  • Price（$） 6.41
Snap Ring Groove Ball Bearings 6305-2RSNR dimension drawing
Download DWG Download PDF

Features

How Does 6305-2RSNR Bearing Reduce Friction?

6305-2RSNR Bearing features a sealed design, keeping contaminants out and lubrication in for smooth operation.
Its chrome steel construction ensures durability while minimising friction during radial load applications.
The snap ring groove provides secure mounting, reducing vibration and wear over time.
With a maximum speed of 11,000 rpm, it offers reliable performance in various conditions.

What Makes 6305-2RSNR Bearing Suitable for High-Temperature Applications?

6305-2RSNR Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its chrome steel components maintain structural integrity under thermal stress.
The sealed design protects internal parts from dust and moisture in harsh environments.
This combination ensures consistent performance even in demanding industrial settings.

Engineered for Precision: 6305-2RSNR Bearing

6305-2RSNR Bearing meets ABEC 1 and ISO P0 tolerance standards for precise operation.
Its single-row ball design provides accurate radial load support with minimal deviation.
The snap ring groove allows for exact positioning during installation.
These features make it ideal for applications requiring tight tolerances and reliability.

Application

Common Applications of 6305-2RSNR Bearing
6305-2RSNR Bearing is widely used in industrial machinery, such as conveyor belts and pumps, where its sealed design helps keep out dust and debris. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6305-2RSNR Bearing fits well in electric motors and transmission systems, providing reliable radial load support. Its chrome steel construction offers durability, even under constant use.

For automation equipment, 6305-2RSNR Bearing works smoothly in robotic arms and assembly lines, thanks to its balanced performance. The sealed design also reduces maintenance needs, saving time and effort.

In household appliances like washing machines, 6305-2RSNR Bearing ensures quiet and efficient operation. Its compact size and snap ring feature make it easy to install in tight spaces.
