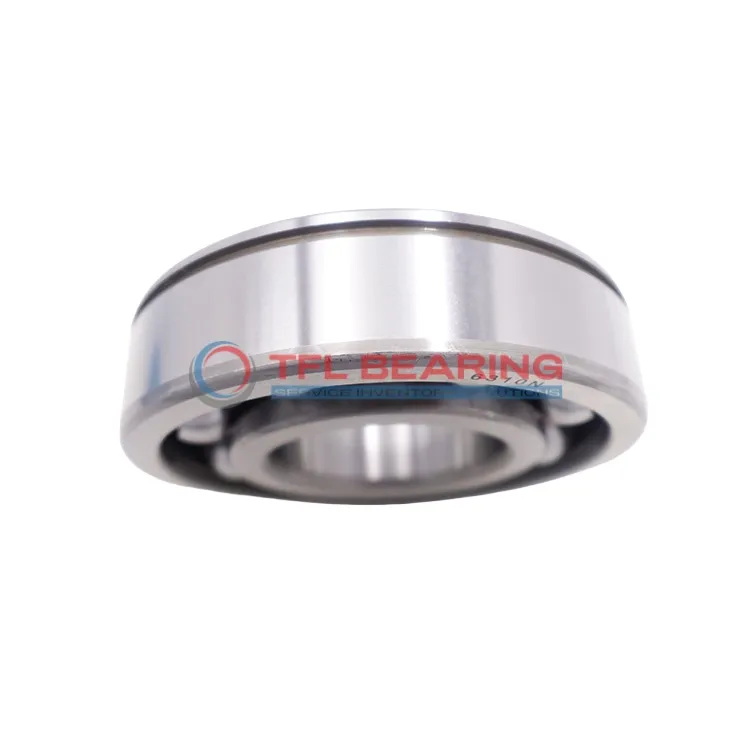

Snap Ring Groove Ball Bearings 6217NJ

Snap Ring Groove Ball Bearings 6217NJ

The 6217NJ is a single-row ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel for reliable performance. Its snap ring groove on the outer ring helps secure it firmly in place during operation.

Designed for radial loads, this open-type bearing suits moderate-speed applications and handles temperatures from -30°C to 120°C. The chrome steel cage ensures smooth rotation and durability over time.

With ABEC 1/ISO P0 tolerance and CN radial clearance, it offers consistent precision for industrial use. Weighing 1.78kg, it balances strength and manageability.

Ideal for machinery requiring secure mounting, like pumps or conveyors. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6217NJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 150 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Weight 1.782 kg
  • Price（$） 41
Snap Ring Groove Ball Bearings 6217NJ dimension drawing
Download DWG Download PDF

Features

Performance Features of 6217NJ Bearing

6217NJ Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its snap ring groove design ensures secure mounting, preventing axial displacement during operation.

The open seal type allows for easy lubrication, maintaining smooth performance over time.
With a temperature range of -30°C to 120°C, it adapts well to various working conditions.

6217NJ Bearing’s ABEC 1 tolerance ensures reliable precision for general applications.
The chrome steel cage enhances durability, keeping the balls aligned under stress.

Application

Industrial Uses of 6217NJ Bearing
6217NJ Bearing is commonly used in industrial machinery like pumps and electric motors, where its snap ring groove ensures secure outer ring positioning. The open design allows for easy lubrication, making it suitable for continuous operation environments.

What Makes 6217NJ Bearing a Preferred Choice?
With its chrome steel construction, 6217NJ Bearing offers reliable performance in radial load applications such as conveyor systems. The snap ring groove feature simplifies installation, reducing maintenance time in production lines.

Perfect Fit for Automation: 6217NJ Bearing
In automated equipment like packaging machines, 6217NJ Bearing provides smooth rotation thanks to its precise ABEC 1 tolerance. The durable cage material ensures long service life even in high-speed scenarios.

Automotive vs Industrial: Applications of 6217NJ Bearing
6217NJ Bearing works well in automotive components like alternators, handling moderate radial loads efficiently. Its industrial versatility also shines in gearboxes, where the snap ring groove prevents axial displacement during operation.
