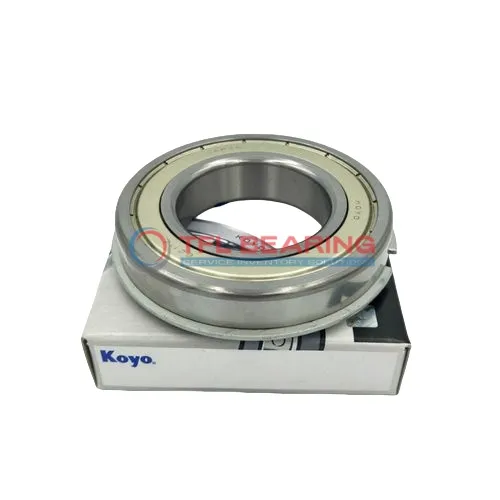

Snap Ring Groove Ball Bearings 6215-ZNR

Snap Ring Groove Ball Bearings 6215-ZNR

The 6215-ZNR is a single-row ball bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its shielded design keeps out dust and debris, while the snap ring groove ensures secure fitting in housings. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1170g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215-ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 1170 g
  • Price（$） 36.06
Snap Ring Groove Ball Bearings 6215-ZNR dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215-ZNR Bearing

6215-ZNR Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 15152 lbf, ensuring reliable performance in various applications.
The shielded design protects against contaminants, while the snap ring feature simplifies installation.
With a maximum speed of 4,800 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of 6215-ZNR Bearing
The 6215-ZNR Bearing is commonly used in industrial machinery like pumps and gearboxes, where its shielded design helps keep contaminants out. Its snap ring feature ensures secure mounting, making it a reliable choice for high-vibration environments.

Where Is 6215-ZNR Bearing Used?
You’ll often find 6215-ZNR Bearing in automotive applications such as wheel hubs and transmissions, thanks to its radial load capacity. The chrome steel construction also provides good wear resistance for long-lasting performance.

Built for Heavy-Duty Use: 6215-ZNR Bearing
In conveyor systems, 6215-ZNR Bearing handles heavy loads smoothly, while its ABEC 1 tolerance ensures consistent operation. The snap ring groove adds extra stability, ideal for equipment with frequent start-stop cycles.

Automotive vs Industrial: Applications of 6215-ZNR Bearing
While 6215-ZNR Bearing works well in car transmissions, it’s equally suited for industrial fans due to its balanced load handling. The shielded seals protect against dust, extending its lifespan in both settings.

Perfect Fit for Automation: 6215-ZNR Bearing
For robotic arms, 6215-ZNR Bearing offers precise movement with its low-friction design. The snap ring simplifies installation, saving time during assembly in automated production lines.
