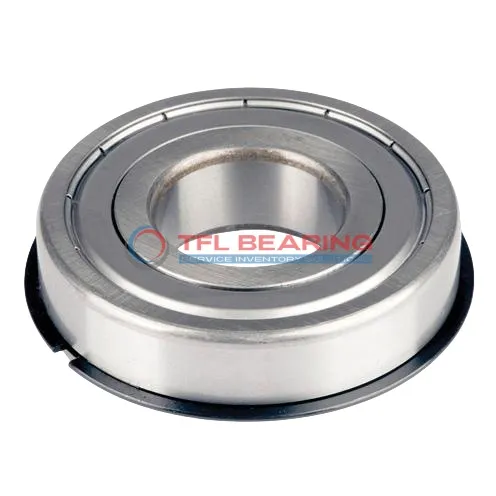

Snap Ring Groove Ball Bearings 6211-2ZNRJEM

The 6211-2ZNRJEM is a shielded ball bearing with a 55mm bore and 100mm outer diameter, designed for radial loads. It handles dynamic loads up to 9757 lbf and operates smoothly at speeds up to 6300 RPM.

Made from durable chrome steel, this bearing features a snap ring on the outer ring for secure fitting. Its shielded design helps keep out dust and debris, extending its lifespan.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, making it a practical choice for replacements.

Ideal for applications like electric motors or pumps where reliable radial load support is needed. Compliant with RoHS and REACH standards, it’s both safe and dependable.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6211-2ZNRJEM
Brand TFL
Interchangeable SKF
Bore Dia 55 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 100 mm
Outer Dia Tolerance -0.015mm to 0
Width 21 mm
Width Tolerance -0.150mm to 0
Outside Diameter Of Snap Ring 96.5 mm
Width Of Snap Ring 2.46 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Dynamic Radial Load 9757 lbf
Static Radial Load 6609 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH Compliant
Max Speed 6300 rpm
Weight 599 g
Price（$） 17.78

Snap Ring Groove Ball Bearings 6211-2ZNRJEM dimension drawing

Download DWG Download PDF

Features

How Does 6211-2ZNRJEM Bearing Resist Wear?

6211-2ZNRJEM Bearing features chrome steel rings and balls, offering excellent resistance to wear and tear.
Its shielded design protects against contaminants, ensuring smooth operation in various conditions.
With a dynamic radial load capacity of 9757 lbf, it handles heavy loads reliably.
The snap ring groove on the outer ring provides secure mounting, enhancing stability during use.

Why Choose 6211-2ZNRJEM Bearing for Precision Tasks?

6211-2ZNRJEM Bearing is precision-engineered with a single-row design, ensuring accurate radial load handling.
The ABEC 1 tolerance class guarantees consistent performance in applications requiring tight tolerances.
Its shielded construction keeps out dust and debris, maintaining smooth operation over time.
With a maximum speed of 6,300 rpm, it balances precision and durability for demanding tasks.

Engineered for Efficiency: 6211-2ZNRJEM Bearing

6211-2ZNRJEM Bearing’s chrome steel construction reduces friction, promoting efficient operation.
The snap ring groove allows for easy and secure installation, saving time during assembly.
Its dynamic radial load capacity of 9757 lbf ensures reliable performance under heavy loads.
The shielded design protects internal components, extending the bearing’s service life.

Steel vs Ceramic Bearings: Strengths of 6211-2ZNRJEM Bearing

6211-2ZNRJEM Bearing uses chrome steel for both rings and balls, providing durability and cost-effectiveness.
The material choice ensures reliable performance in temperatures ranging from -30° to 120°C.
Its shielded design offers protection against contaminants without the need for additional seals.
With a static radial load capacity of 6609 lbf, it handles demanding applications with ease.

Application

Common Applications of 6211-2ZNRJEM Bearing
6211-2ZNRJEM Bearing works well in industrial settings, especially for machinery like pumps and electric motors where radial load support is needed. Its shielded design helps keep out dust and debris, extending its lifespan.

In automotive applications, 6211-2ZNRJEM Bearing fits nicely into wheel hubs and transmissions, providing smooth rotation under various loads. The snap ring feature ensures secure placement, reducing the risk of slippage.

For automation systems, 6211-2ZNRJEM Bearing is a reliable choice for conveyor belts and robotic arms. Its chrome steel construction offers good durability, even in high-speed operations.

Around the house, you might find 6211-2ZNRJEM Bearing in appliances like washing machines or power tools. The shielded seals help maintain performance, even with frequent use.
