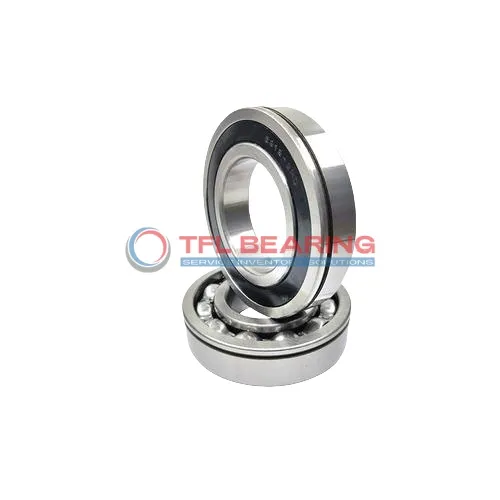

Snap Ring Groove Ball Bearings 6209-ZNB

Snap Ring Groove Ball Bearings 6209-ZNB

The 6209-ZNB is a shielded snap ring groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its single-row design and shielded seal offer reliable protection against contaminants, while the snap ring groove ensures secure mounting. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or conveyor systems where radial loads are common.

Weighing 407g, it’s a durable yet lightweight option. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-ZNB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 85 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7700 rpm
  • Weight 407 g
  • Price（$） 11.97
Snap Ring Groove Ball Bearings 6209-ZNB dimension drawing
Download DWG Download PDF

Features

Why Choose 6209-ZNB Bearing for Precision Tasks?

6209-ZNB Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 7351 lbf, it handles demanding tasks reliably.
The snap ring groove design simplifies installation, making it a practical choice for various setups.

Operating at speeds up to 7,700 rpm, it balances performance and longevity.
Its temperature range of -30° to 120°C allows use in diverse environments.

Application

Industrial Uses of 6209-ZNB Bearing
6209-ZNB Bearing is commonly used in industrial machinery like pumps and gearboxes, where its shielded design helps keep contaminants out. The snap ring groove makes installation simpler in tight spaces.

Where Is 6209-ZNB Bearing Used?
You’ll often find 6209-ZNB Bearing in automotive applications such as alternators and transmission systems. Its chrome steel construction ensures durability under radial loads.

Perfect Fit for Automation: 6209-ZNB Bearing
In robotic arms and conveyor systems, 6209-ZNB Bearing offers smooth rotation and reliable performance. The ABEC 1 tolerance ensures consistent operation in automated setups.

Light-Duty vs Heavy-Duty: Best Uses for 6209-ZNB Bearing
For light-duty tasks like small electric motors, 6209-ZNB Bearing provides efficient performance. In heavier applications like industrial fans, it handles radial loads with ease.

Medical vs Industrial: Where 6209-ZNB Bearing Excels
While not typically used in medical devices, 6209-ZNB Bearing shines in industrial settings like compressors. Its shielded design and snap ring groove add versatility.
