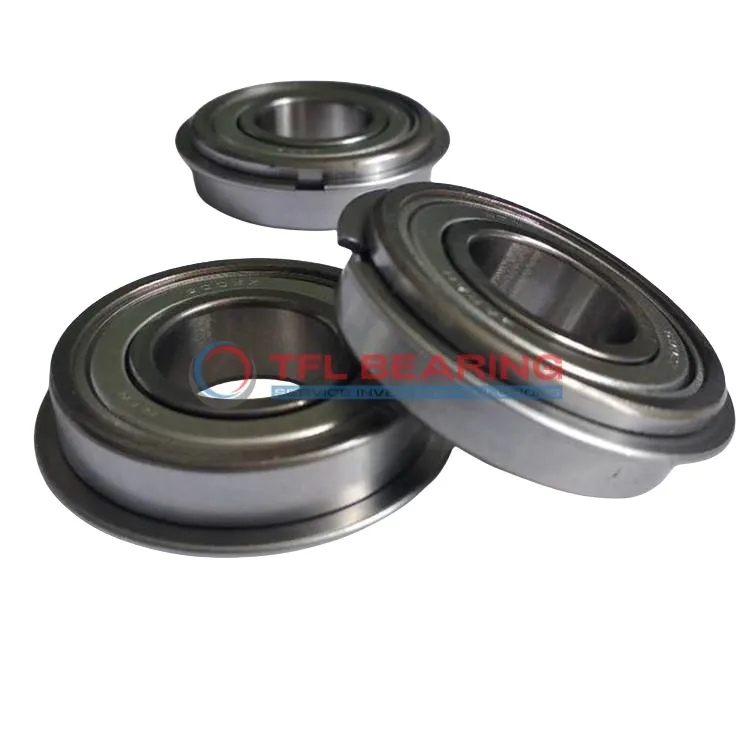

Snap Ring Groove Ball Bearings 6208-ZNRJEM

Snap Ring Groove Ball Bearings 6208-ZNRJEM

The 6208-ZNRJEM is a shielded snap ring groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its snap ring design ensures secure fitting, while the shielded construction keeps dirt out for longer service life. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or conveyor systems where radial loads are common.

Weighing 366g, it offers a sturdy build for its compact 18mm width. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8300 rpm
  • Weight 366 g
  • Price（$） 9.4
Snap Ring Groove Ball Bearings 6208-ZNRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6208-ZNRJEM Bearing Reduce Friction?

6208-ZNRJEM Bearing features a single-row ball design with chrome steel rings and balls, ensuring smooth radial load handling.
The shielded seal type helps keep contaminants out, maintaining consistent performance over time.
With a dynamic radial load capacity of 6542 lbf, it offers reliable operation in various applications.
The snap ring fitted on the outer ring provides secure mounting, reducing vibration and wear.

Application

Industrial Uses of 6208-ZNRJEM Bearing
6208-ZNRJEM Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep out dust and debris. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6208-ZNRJEM Bearing fits well in electric motors and gearboxes, providing reliable radial load support. Its chrome steel construction offers durability, even under continuous use.

For automation equipment, 6208-ZNRJEM Bearing works smoothly in robotic arms and assembly line machinery. The ABEC 1 tolerance ensures consistent performance without needing frequent adjustments.

Where Is 6208-ZNRJEM Bearing Used?
You’ll often find 6208-ZNRJEM Bearing in household appliances like washing machines and air conditioners. Its shielded seals help extend bearing life by reducing contamination from lint or moisture.

In light industrial settings, 6208-ZNRJEM Bearing supports small machinery like pumps and compressors. The snap ring groove simplifies installation, saving time during maintenance.
