Snap Ring Groove Ball Bearings 6008-2RS1NR/C3

Snap Ring Groove Ball Bearings 6008-2RS1NR/C3

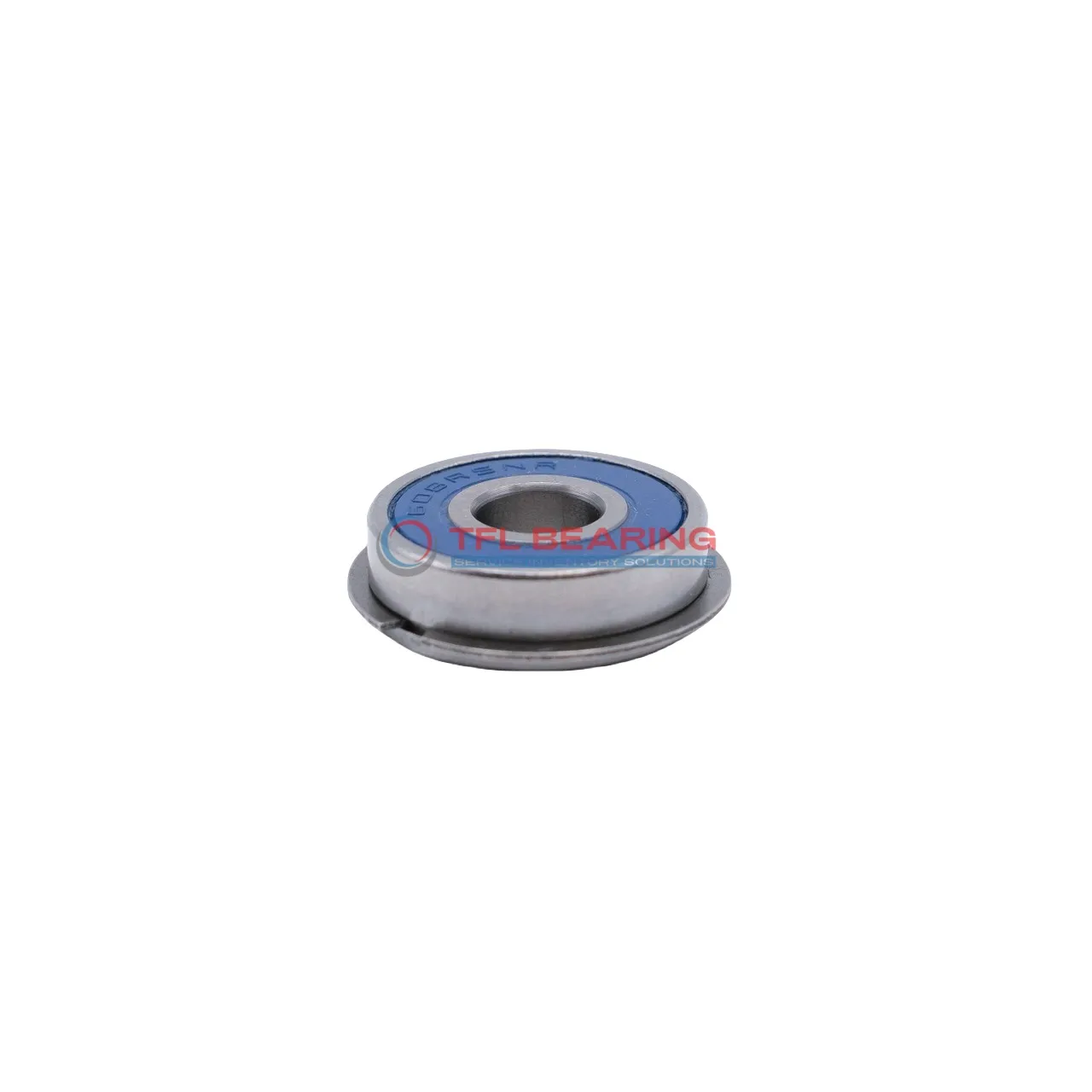

The 6008-2RS1NR/C3 is a sealed snap ring groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3754 lbf and operates smoothly at speeds up to 10,000 RPM.

Its sealed design keeps out dust and moisture, while the snap ring ensures secure mounting. The C3 radial clearance allows for slight misalignment or thermal expansion.

This bearing is ideal for industrial machinery, electric motors, or automotive applications where reliability is key. It’s interchangeable with SKF bearings for easy replacement.

Weighing 192g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-2RS1NR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 74.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 192 g
  • Price（$） 13.7
Snap Ring Groove Ball Bearings 6008-2RS1NR/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6008-2RS1NR/C3 Bearing

6008-2RS1NR/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 3754 lbf.
Its sealed design protects against contaminants, ensuring smooth operation in various environments.

The snap ring groove on the outer ring simplifies installation, making it ideal for compact designs.
With a maximum speed of 10,000 rpm, it delivers reliable performance in high-speed applications.

6008-2RS1NR/C3 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides flexibility, accommodating thermal expansion in different conditions.

Application

Industrial Uses of 6008-2RS1NR/C3 Bearing
6008-2RS1NR/C3 Bearing is commonly used in conveyor systems and packaging machinery, where its sealed design keeps out dust and debris. The snap ring feature ensures secure mounting, reducing maintenance downtime.

Where Is 6008-2RS1NR/C3 Bearing Used?
In automotive applications, 6008-2RS1NR/C3 Bearing fits well in electric motors and pumps, thanks to its radial load capacity. The C3 clearance allows for thermal expansion, making it reliable in varying temperatures.

Perfect Fit for Automation: 6008-2RS1NR/C3 Bearing
6008-2RS1NR/C3 Bearing works smoothly in robotic arms and assembly lines, where precision and durability are key. Its chrome steel construction ensures long service life even in high-speed operations.

Medical vs Industrial: Where 6008-2RS1NR/C3 Bearing Excels
6008-2RS1NR/C3 Bearing is versatile enough for medical devices like centrifuges, while also handling industrial gearboxes. The sealed design prevents contamination, crucial in both environments.

Key Fields for 6008-2RS1NR/C3 Bearing
6008-2RS1NR/C3 Bearing is a go-to choice for household appliances like washing machines, where quiet operation matters. Its robust build and snap ring feature make installation straightforward for manufacturers.
