Snap Ring Groove Ball Bearings 6205NR/QE6

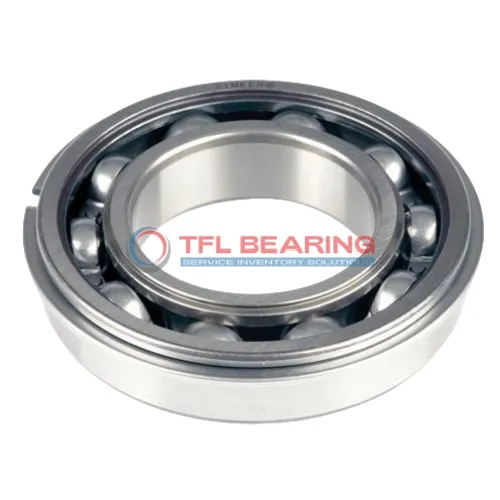

Snap Ring Groove Ball Bearings 6205NR/QE6

The 6205NR/QE6 is a snap ring groove ball bearing with a 25mm bore and 52mm outer diameter, measuring 15mm in width. Made from durable chrome steel, it handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13,000 RPM.

Its snap ring design on the outer ring keeps it securely in place, making installation and positioning easier. The open seal allows for simple maintenance and lubrication when needed.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It performs well in temperatures ranging from -30°C to 120°C.

Ideal for applications like electric motors or pumps where secure mounting and radial load support are needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205NR/QE6
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01 mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013 mm to 0
  • Width 15 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 57.9 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Price（$） 4.74

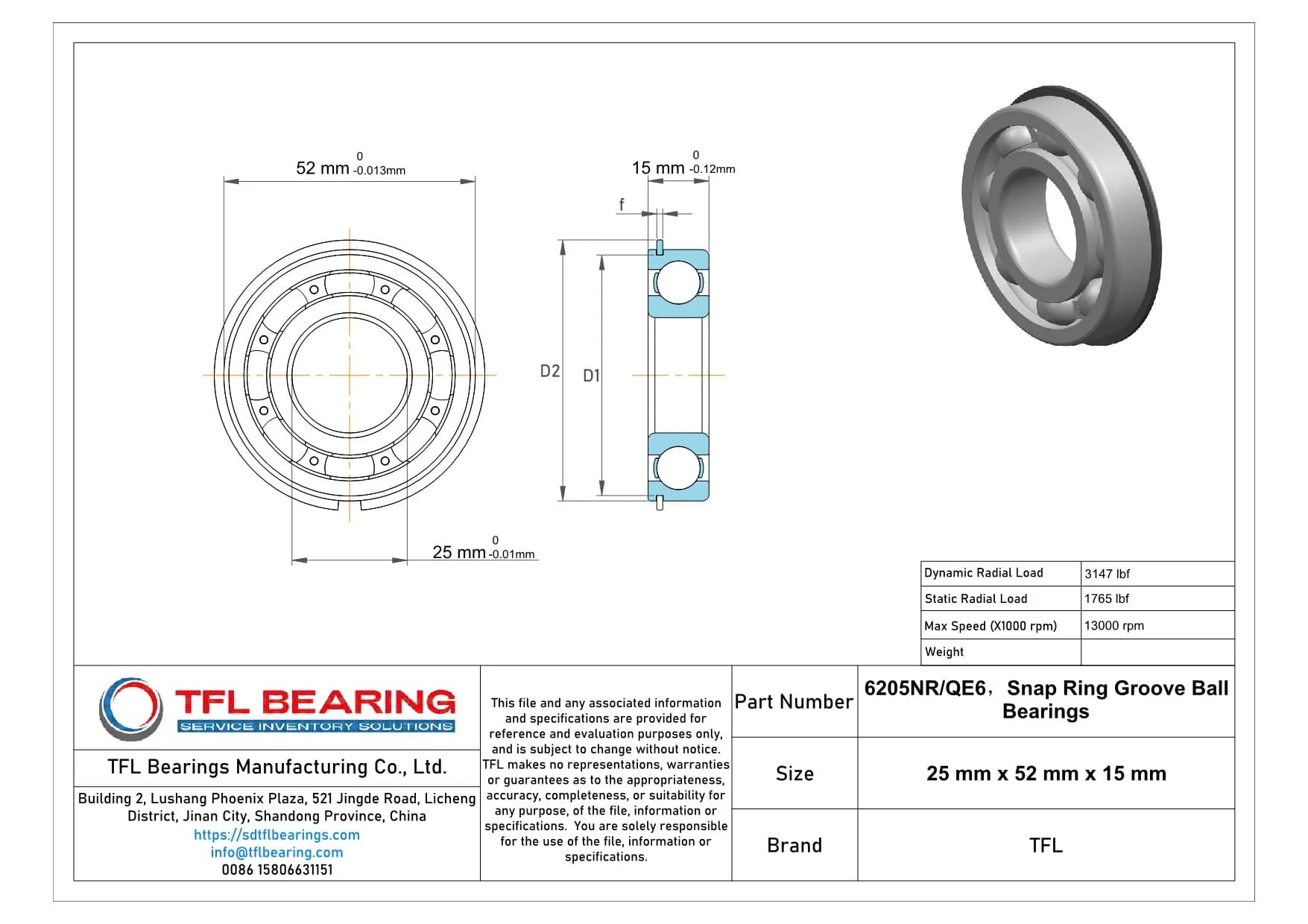

Snap Ring Groove Ball Bearings 6205NR/QE6 dimension drawing
Download DWG Download PDF

Features

Why Choose 6205NR/QE6 Bearing for Precision Tasks?

6205NR/QE6 Bearing features a snap ring groove on the outer ring, ensuring secure positioning in assemblies.
Its chrome steel construction provides durability and consistent performance under radial loads.

With a dynamic radial load capacity of 3147 lbf, it handles demanding applications with ease.
The ABEC 1 tolerance ensures reliable precision for various industrial uses.

Operating at speeds up to 13,000 rpm, it balances efficiency and longevity.
Its open design allows for easy lubrication, reducing maintenance needs.

The temperature range of -30°C to 120°C makes it suitable for diverse environments.
This bearing is a practical choice for applications requiring both precision and durability.

Application

Common Applications of 6205NR/QE6 Bearing
The 6205NR/QE6 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its snap ring feature ensures secure positioning. Its open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6205NR/QE6 Bearing fits well in gearboxes and electric motors, providing reliable radial load support. The chrome steel construction ensures durability even under continuous use.

For automation equipment, 6205NR/QE6 Bearing is a go-to choice for robotic arms and CNC machines, thanks to its precise tolerance and smooth operation. The snap ring groove adds extra stability during dynamic movements.

In household appliances like washing machines, 6205NR/QE6 Bearing offers quiet and efficient performance. Its metric sizing makes it compatible with a variety of European and Asian models.

Medical devices such as lab centrifuges benefit from 6205NR/QE6 Bearing’s consistent performance and low maintenance requirements. The chrome steel cage enhances its longevity in sterile environments.
