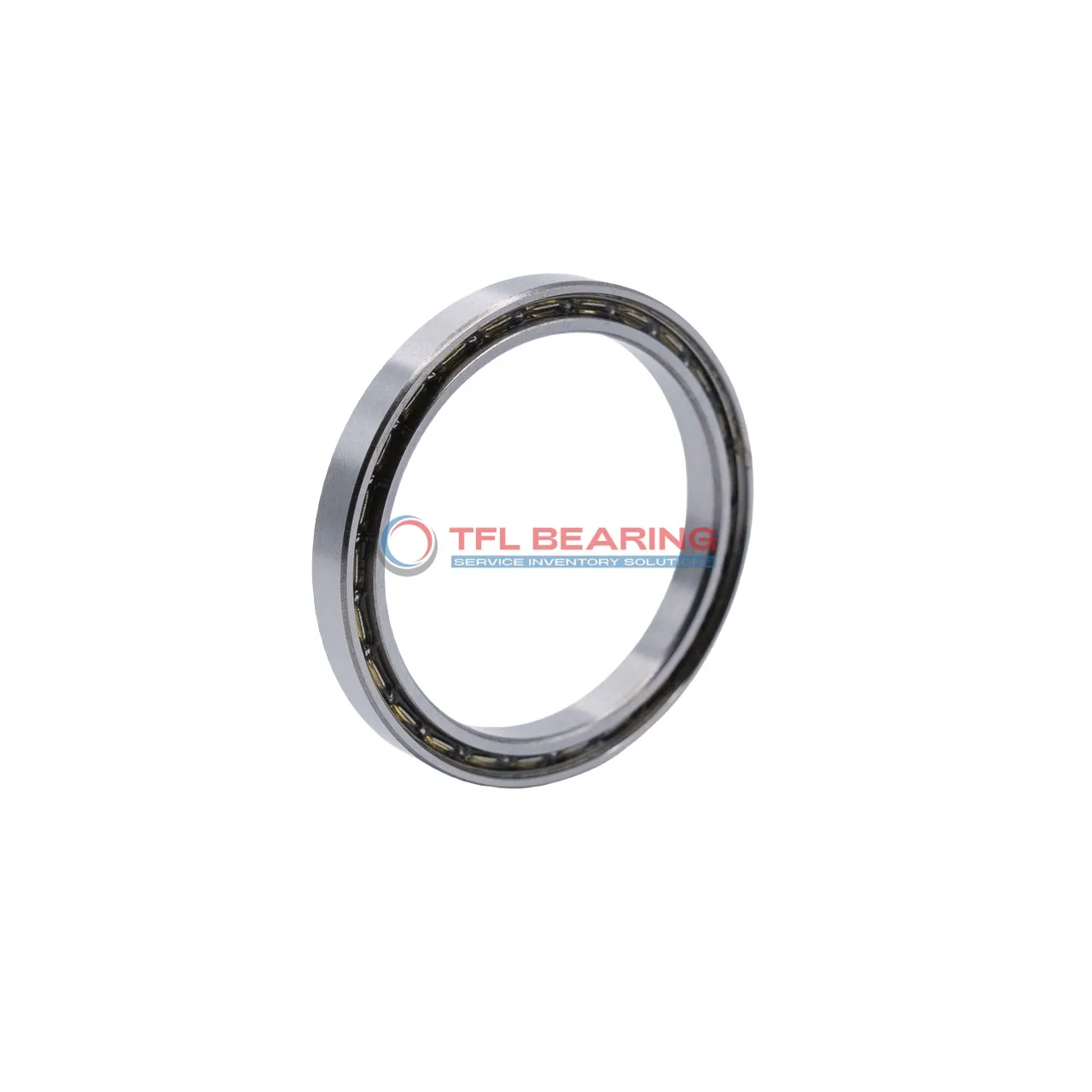

Thin Section Ball Bearings S6819

Thin Section Ball Bearings S6819

The S6819 is a thin-section ball bearing with a 95mm bore and 120mm outer diameter, designed for radial loads. Its compact 13mm width makes it ideal for space-saving applications.

Made entirely from stainless steel, it handles dynamic loads up to 3804 lbf and spins smoothly at 4500 RPM. The open design allows easy lubrication when needed.

With ABEC-1 precision and C0 clearance, it offers reliable performance without being overly sensitive to alignment. Suitable for temperatures from -86°F to 230°F.

This lightweight bearing (279g) works well in food processing equipment or medical devices where corrosion resistance matters. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6819
  • Brand TFL
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3804 lbf
  • Static Radial Load 4107 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4500 rpm
  • Weight 279 g
  • Price（$） 3.6
Thin Section Ball Bearings S6819 dimension drawing
Download DWG Download PDF

Features

How Does S6819 Bearing Reduce Friction?

S6819 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its precision design maintains a radial clearance of 0.012mm to 0.036mm, enhancing performance in radial load applications.
The single-row construction and open seal type allow for easy lubrication, reducing wear over time.
With a maximum speed of 4,500 rpm, it offers reliable efficiency in various conditions.

Application

Industrial Uses of S6819 Bearing
S6819 Bearing is commonly used in industrial machinery where space is limited but radial load support is essential, such as in packaging equipment and textile machines. Its thin section design makes it ideal for compact applications without compromising strength.

What Makes S6819 Bearing a Preferred Choice?
In automation systems, S6819 Bearing fits well in robotic arms and precision assembly lines due to its stainless steel construction and reliable performance. The ABEC-1 tolerance ensures smooth operation in repetitive tasks.

Built for Heavy-Duty Use: S6819 Bearing
For automotive applications, S6819 Bearing works effectively in steering systems and small gearboxes, handling moderate radial loads with ease. Its wide temperature range also makes it suitable for varying operating conditions.

Medical vs Industrial: Where S6819 Bearing Excels
In medical devices like diagnostic equipment, S6819 Bearing offers quiet and smooth operation, crucial for sensitive environments. The stainless steel materials provide excellent resistance to corrosion and wear.

Perfect Fit for Automation: S6819 Bearing
S6819 Bearing is a great choice for 3D printers and CNC machines, where precision and durability are key. Its lightweight design and high-speed capability enhance overall machine performance.
