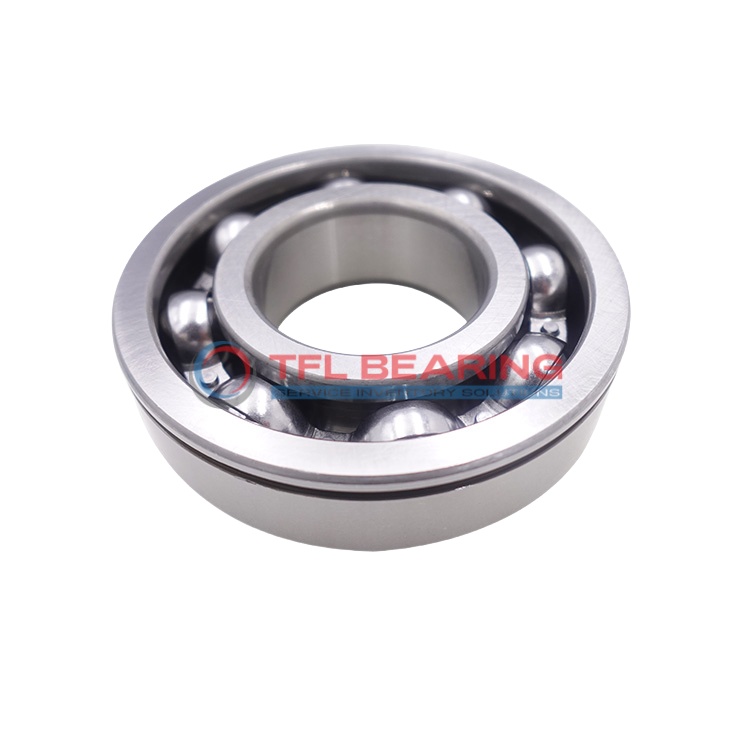

Snap Ring Groove Ball Bearings 6204N/C3

Snap Ring Groove Ball Bearings 6204N/C3

The 6204N/C3 is a snap ring groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. Its compact 14mm width makes it a space-saving choice for various applications.

The open design ensures easy lubrication, while the snap ring groove on the outer ring provides secure mounting. It operates smoothly in temperatures ranging from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for machinery where radial loads and secure positioning are needed.

Weighing just 0.104kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe and practical choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204N/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 47 mm
  • Width Of Snap Ring 1.35 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Weight 0.104 kg
  • Price（$） 3.89
Snap Ring Groove Ball Bearings 6204N/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 6204N/C3 Bearing for Precision Tasks?

6204N/C3 Bearing features a snap ring groove on the outer ring, ensuring secure positioning in assemblies.
Its chrome steel construction provides durability and resistance to wear in radial load applications.

The C3 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
With a temperature range of -30° to 120°C, it performs reliably in diverse environments.

The open design simplifies lubrication, helping to maintain smooth operation over time.
Its precise dimensions and tolerances ensure consistent performance in machinery and equipment.

Application

Common Applications of 6204N/C3 Bearing
In industrial machinery, 6204N/C3 Bearing is widely used in conveyor systems and electric motors due to its snap ring groove feature, which simplifies installation and enhances stability. The open design allows for easy lubrication, extending service life in demanding environments.

Where Is 6204N/C3 Bearing Used?
You’ll often find 6204N/C3 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and snap ring groove ensure secure mounting. Its chrome steel construction also handles high temperatures well, making it reliable under the bonnet.

Ideal for Precision: 6204N/C3 Bearing
For medical devices such as centrifuges, 6204N/C3 Bearing offers smooth operation thanks to its C3 radial clearance, reducing vibration and noise. The chrome steel cage adds durability, ensuring consistent performance in critical settings.

Automotive vs Industrial: Applications of 6204N/C3 Bearing
While 6204N/C3 Bearing excels in car components like fans and pulleys, it’s equally at home in industrial gearboxes, where its snap ring groove prevents misalignment. The metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: 6204N/C3 Bearing
In robotic arms and automated assembly lines, 6204N/C3 Bearing’s open design and snap ring groove enable quick maintenance and precise movement. Its chrome steel balls provide reliable performance even in high-speed operations.
