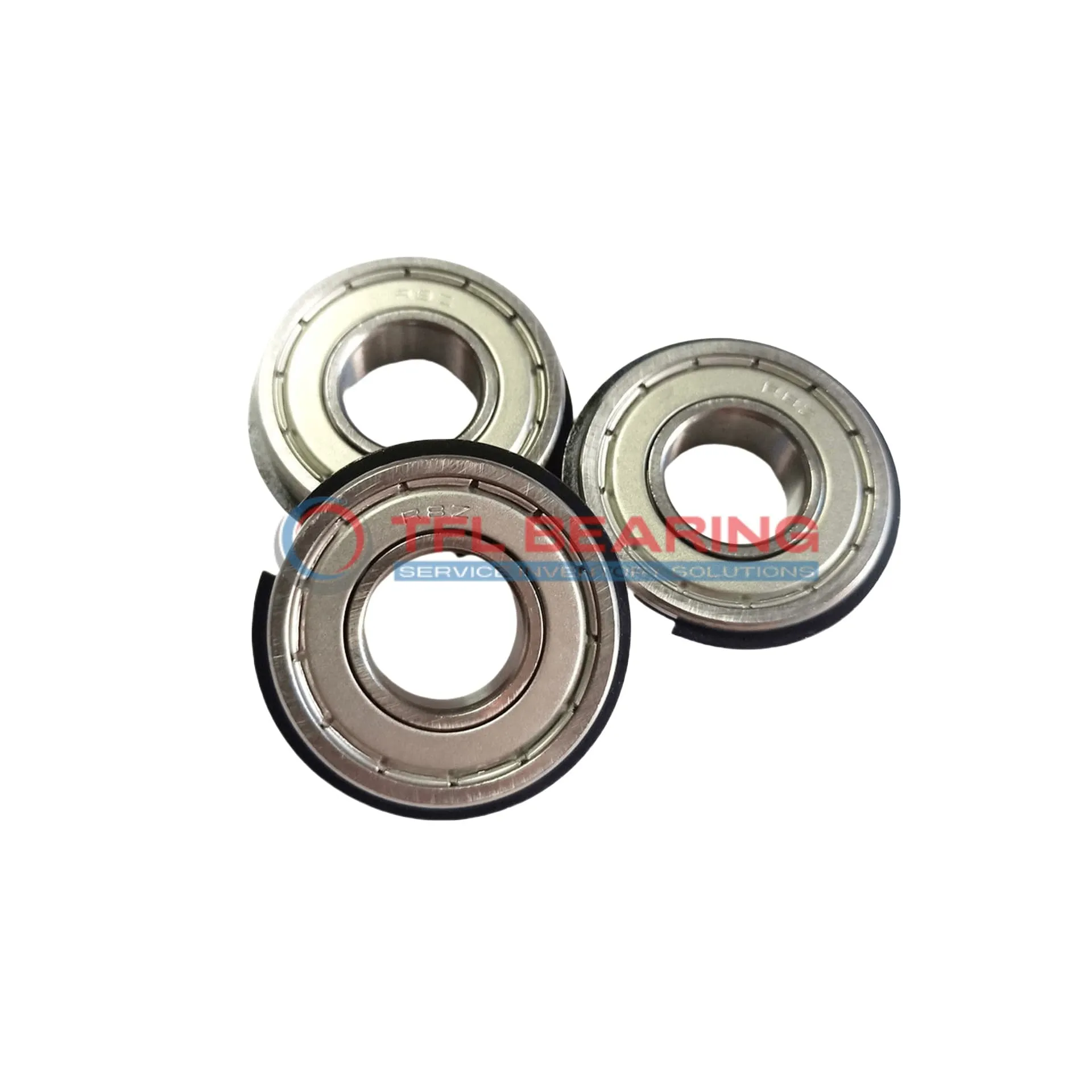

Snap Ring Groove Ball Bearings 6204-ZNRJ

Snap Ring Groove Ball Bearings 6204-ZNRJ

The 6204-ZNRJ is a shielded ball bearing with a 20mm bore and 47mm outer diameter, made from sturdy chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15000 RPM.

Its snap ring groove design keeps it securely in place, while the shielded construction protects against dust and debris. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where secure mounting is needed.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-ZNRJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 52.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 106 g
  • Price（$） 4.05
Snap Ring Groove Ball Bearings 6204-ZNRJ dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-ZNRJ Bearing for Precision Tasks?

6204-ZNRJ Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.
With a maximum speed of 15,000 rpm, it delivers reliable performance in high-speed environments.

6204-ZNRJ Bearing’s ABEC 1 tolerance class guarantees consistent precision for demanding tasks.
Its static radial load capacity of 1495 lbf makes it suitable for various industrial applications.

Application

Common Applications of 6204-ZNRJ Bearing
6204-ZNRJ Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6204-ZNRJ Bearing supports components like alternators and water pumps, providing reliable radial load handling. Its metric sizing and ABEC 1 tolerance make it a versatile choice for various vehicle models.

For automation equipment, 6204-ZNRJ Bearing’s chrome steel construction offers durability in robotic arms and assembly lines. The shielded seals extend its lifespan by reducing dust and debris ingress.

Where Is 6204-ZNRJ Bearing Used?
You’ll often find 6204-ZNRJ Bearing in household appliances like washing machines and fans, where its compact size and radial load capacity are beneficial. The snap ring groove simplifies installation in tight spaces.

In medical devices, 6204-ZNRJ Bearing provides smooth operation for equipment like centrifuges and dental tools. Its temperature range and shielded design ensure consistent performance in sterile environments.

Built for Heavy-Duty Use: 6204-ZNRJ Bearing
6204-ZNRJ Bearing handles radial loads efficiently in construction equipment like small gearboxes and pulleys. The chrome steel cage enhances its strength and wear resistance.

For consumer electronics, 6204-ZNRJ Bearing is a reliable choice in printers and scanners, where precision and quiet operation matter. Its shielded seals help maintain performance over time.
