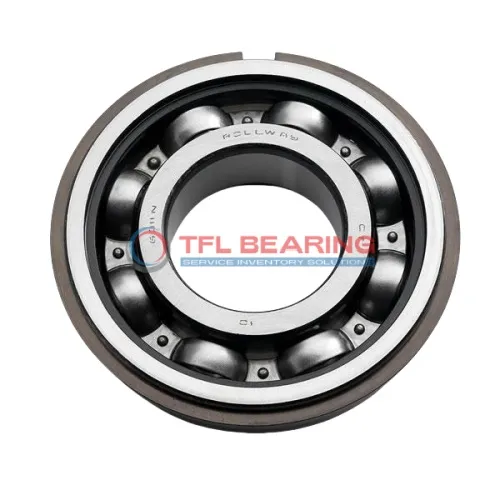

Snap Ring Groove Ball Bearings 6202NRJ

Snap Ring Groove Ball Bearings 6202NRJ

The 6202NRJ is a snap ring groove ball bearing with a 15mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1812 lbf and can spin at speeds up to 20,000 RPM.

Its open design and snap ring feature on the outer ring keep it securely in place, while the chrome steel cage adds durability. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing lightly yet built to last, it complies with RoHS and REACH standards for safe and reliable use. The snap ring ensures easy installation and removal, ideal for maintenance-heavy environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202NRJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008 mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011 mm to 0
  • Width 11 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 39.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Price（$） 3.45
Snap Ring Groove Ball Bearings 6202NRJ dimension drawing
Download DWG Download PDF

Features

Why Choose 6202NRJ Bearing for Precision Tasks?

6202NRJ Bearing features a snap ring groove design, ensuring secure mounting and precise alignment in radial applications.
Its chrome steel construction offers durability and consistent performance under dynamic radial loads up to 1812 lbf.

The open seal type allows for easy lubrication, maintaining smooth operation at speeds up to 20,000 rpm.
With a temperature range of -30°C to 120°C, it adapts well to varying working conditions.

ABEC 1 tolerance ensures reliable precision, making it suitable for tasks requiring accurate radial load handling.
The snap ring fitted on the outer ring provides added stability, reducing the risk of misalignment during operation.

Application

Common Applications of 6202NRJ Bearing
In industrial settings, 6202NRJ Bearing is frequently used in conveyor systems and small electric motors due to its reliable radial load capacity. The snap ring feature ensures secure mounting, which is handy in vibrating environments.

Where Is 6202NRJ Bearing Used?
You’ll often spot 6202NRJ Bearing in automotive applications like alternators and water pumps, where its compact size and durability shine. The open design allows for easy lubrication, extending its service life.

Perfect Fit for Automation: 6202NRJ Bearing
For robotics and automated machinery, 6202NRJ Bearing offers smooth rotation and low friction, ideal for precise movements. Its chrome steel construction ensures it can handle frequent use without wearing out quickly.

Light-Duty vs Heavy-Duty: Best Uses for 6202NRJ Bearing
In light-duty applications like office printers, 6202NRJ Bearing provides quiet operation and efficiency. For heavier tasks, such as small gearboxes, its robust design keeps things running smoothly under pressure.
