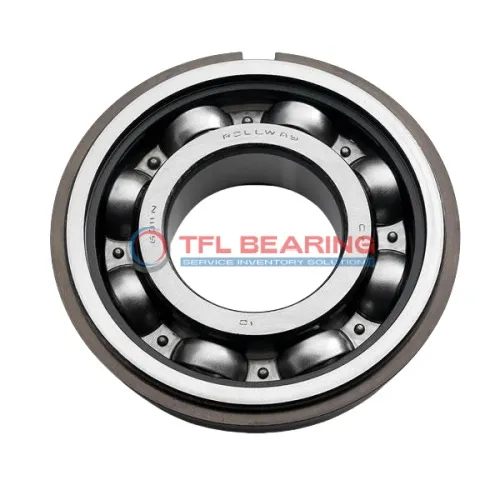

Snap Ring Groove Ball Bearings 6202NR/C3

Snap Ring Groove Ball Bearings 6202NR/C3

The 6202NR/C3 is a snap ring groove ball bearing with a 15mm bore and 35mm outer diameter, measuring 11mm in width. Made from durable chrome steel, it handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its snap ring design keeps the bearing securely in place, while the open seal allows for easy maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where secure mounting is needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202NR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008 mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011 mm to 0
  • Width 11 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 39.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Price（$） 3.26
Snap Ring Groove Ball Bearings 6202NR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6202NR/C3 Bearing Reduce Friction?

6202NR/C3 Bearing features chrome steel rings and balls, which help in reducing friction during operation.
Its dynamic radial load capacity of 1812 lbf ensures smooth performance under various radial loads.
The snap ring groove design provides secure positioning, enhancing stability and reducing wear.
With a maximum speed of 20,000 rpm, it offers efficient and reliable performance.

Application

Industrial Uses of 6202NR/C3 Bearing
The 6202NR/C3 Bearing is commonly used in conveyor systems and electric motors, where its snap ring design ensures secure mounting. Its open seal allows for easy lubrication, making it suitable for high-speed operations.

What Makes 6202NR/C3 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6202NR/C3 Bearing offers reliable radial load support. The chrome steel construction provides durability, even under continuous use.

Built for Heavy-Duty Use: 6202NR/C3 Bearing
This bearing excels in industrial fans and compressors, where its C3 clearance accommodates thermal expansion. The snap ring feature simplifies installation, reducing downtime during maintenance.

Automotive vs Industrial: Applications of 6202NR/C3 Bearing
In cars, 6202NR/C3 Bearing is ideal for wheel hubs, while in factories, it powers machinery like grinders. Its versatility stems from the balanced radial load capacity and high-speed tolerance.

Perfect Fit for Automation: 6202NR/C3 Bearing
Robotic arms and CNC machines benefit from 6202NR/C3 Bearing’s precision and snap ring security. The open design allows for custom lubrication, adapting to various operational needs.
