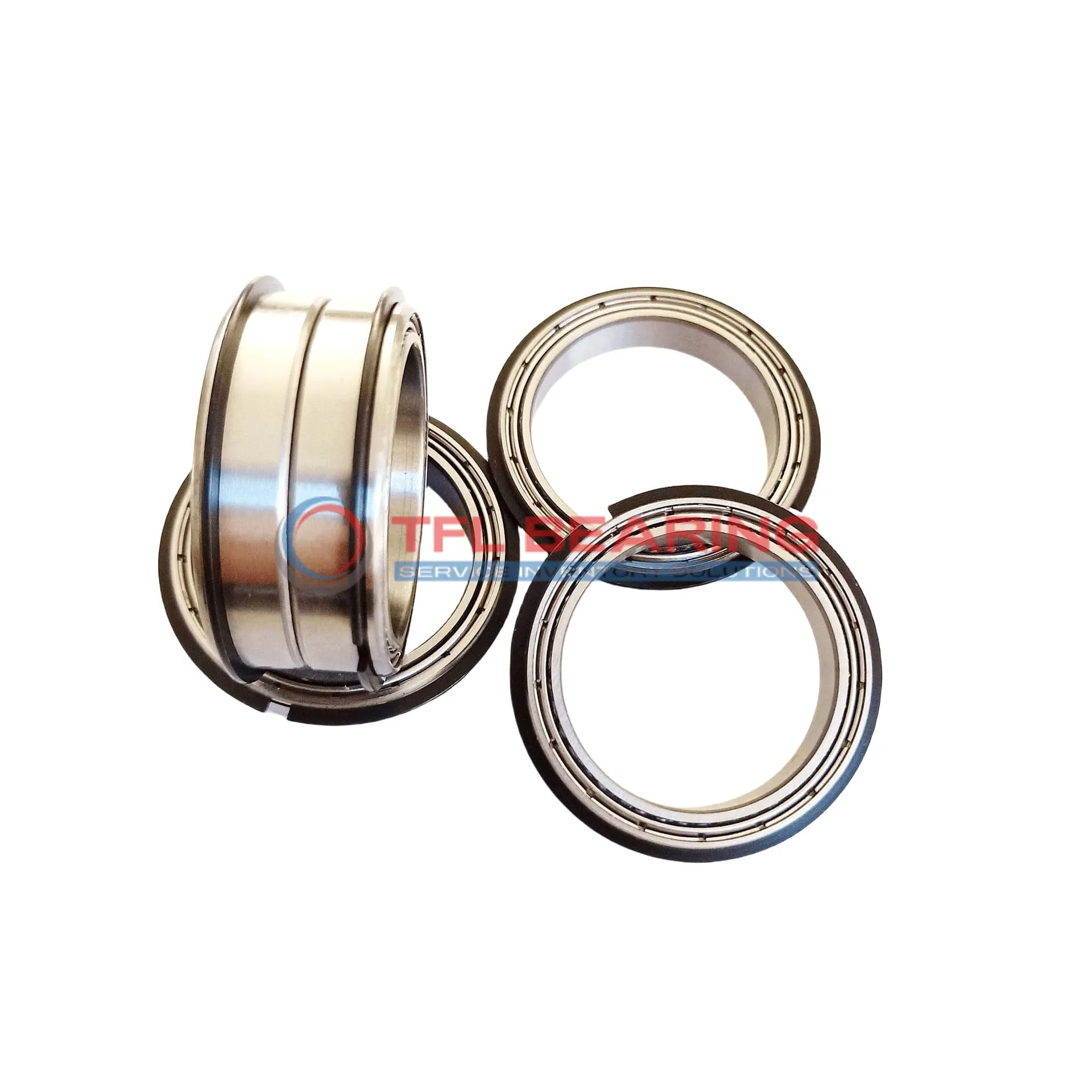

Snap Ring Groove Ball Bearings 6202-2ZNRJEM

Snap Ring Groove Ball Bearings 6202-2ZNRJEM

The 6202-2ZNRJEM is a compact snap ring groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its shielded design keeps dirt out while the snap ring ensures a secure fit, making installation straightforward. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or small machinery where space is limited.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 39.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 45 g
  • Price（$） 3.07
Snap Ring Groove Ball Bearings 6202-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6202-2ZNRJEM Bearing Reduce Friction?

6202-2ZNRJEM Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.
With a maximum speed of 20,000 rpm, it delivers reliable performance in high-speed applications.

6202-2ZNRJEM Bearing’s ABEC 1 tolerance ensures precise alignment, further lowering friction.
Its dynamic radial load capacity of 1812 lbf makes it suitable for various industrial uses.

Application

Industrial Uses of 6202-2ZNRJEM Bearing
6202-2ZNRJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for applications with limited space.

What Makes 6202-2ZNRJEM Bearing a Preferred Choice?
In automotive applications, 6202-2ZNRJEM Bearing fits well in alternators and small gearboxes, thanks to its compact size and radial load capacity. The chrome steel construction offers good durability for everyday use.

Perfect Fit for Automation: 6202-2ZNRJEM Bearing
For automated systems, 6202-2ZNRJEM Bearing works smoothly in conveyor rollers and small robotic arms. Its ABEC 1 tolerance ensures reliable performance without needing frequent adjustments.

Light-Duty vs Heavy-Duty: Best Uses for 6202-2ZNRJEM Bearing
In light-duty scenarios like office printers, 6202-2ZNRJEM Bearing provides quiet operation. For heavier tasks, it can handle moderate loads in power tools while maintaining stability.

Where Is 6202-2ZNRJEM Bearing Used?
You’ll find 6202-2ZNRJEM Bearing in household appliances like washing machines, where its shielded design protects against dust. The snap ring also simplifies installation for DIY repairs.
