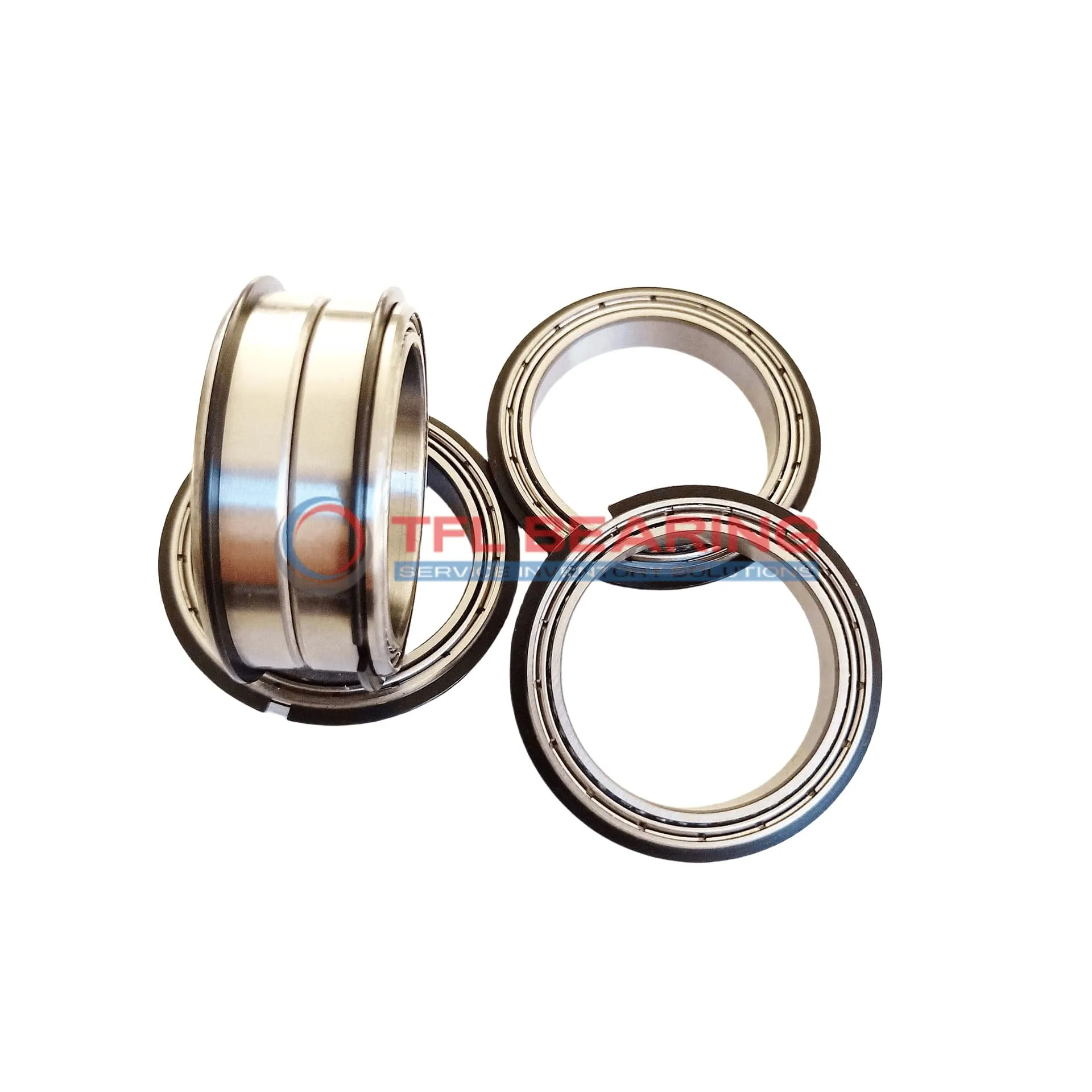

Snap Ring Groove Ball Bearings 6202-2ZNR/C3GJN

Snap Ring Groove Ball Bearings 6202-2ZNR/C3GJN

The 6202-2ZNR/C3GJN is a compact snap ring groove ball bearing, measuring 15mm in bore and 35mm in outer diameter, with a width of 11mm. Made from chrome steel, it offers reliable performance for radial loads up to 1812 lbf.

Its shielded design keeps dirt out while the snap ring ensures secure fitting. With a maximum speed of 20,000 RPM, it spins smoothly in various applications.

This bearing operates in temperatures from -30°C to 120°C and is compatible with SKF models. Ideal for use in electric motors or small machinery where space is limited.

Weighing just 45g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2ZNR/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 39.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 45 g
  • Price（$） 2.4
Snap Ring Groove Ball Bearings 6202-2ZNR/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6202-2ZNR/C3GJN Bearing Reduce Friction?

6202-2ZNR/C3GJN Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

The shielded design helps keep contaminants out, maintaining consistent performance over time.

With a maximum speed of 20,000 rpm, it offers reliable efficiency for various applications.

Its snap ring outer ring design provides secure fitting, reducing vibration and wear.

Application

Common Applications of 6202-2ZNR/C3GJN Bearing
6202-2ZNR/C3GJN Bearing is widely used in industrial equipment like conveyor belts and small gearboxes, where its shielded design keeps out dust and debris. The snap ring feature ensures secure mounting, making it ideal for compact spaces.

In automotive applications, 6202-2ZNR/C3GJN Bearing fits well in electric motors and alternators, providing smooth rotation under radial loads. Its C3 clearance allows for slight thermal expansion, common in engine compartments.

For home appliances, 6202-2ZNR/C3GJN Bearing works reliably in washing machines and fans, thanks to its durable chrome steel construction. The shielded seals help extend its lifespan by preventing contamination from household dust.

Automation systems benefit from 6202-2ZNR/C3GJN Bearing in robotic arms and small actuators, where precision and low maintenance are key. The snap ring simplifies installation, reducing assembly time in production lines.
