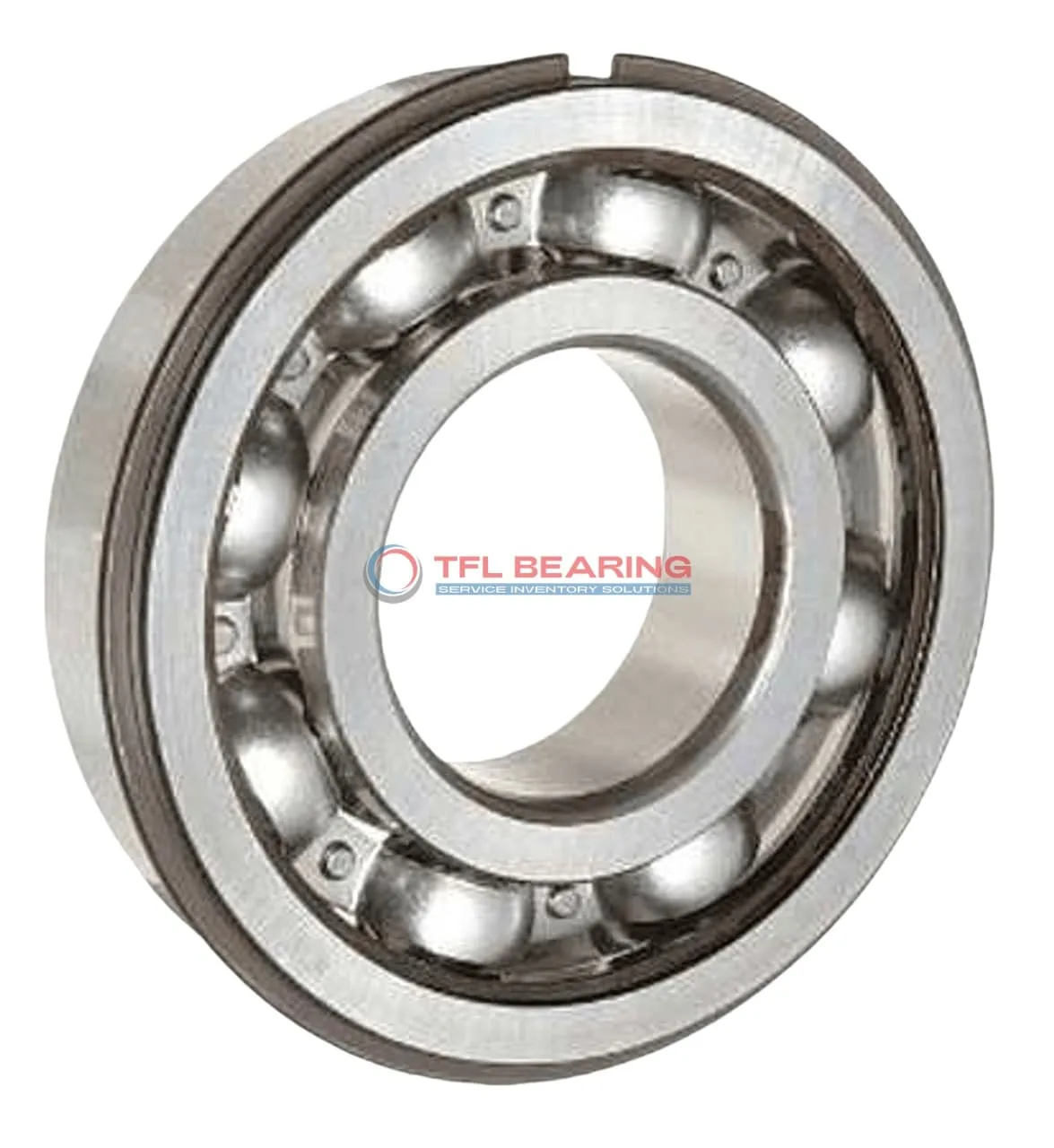

Snap Ring Groove Ball Bearings 6024 NR

Snap Ring Groove Ball Bearings 6024 NR

The 6024 NR is a snap ring groove ball bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19873 lbf and operates smoothly at speeds up to 4800 RPM.

Its single-row design with a snap ring on the outer ring ensures secure fitting, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery requiring radial load support, such as pumps or conveyors.

Weighing 2.19kg, it’s robust yet manageable for its size. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6024 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 192.9 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 19873 lbf
  • Static Radial Load 17985 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 2.19 kg
  • Price（$） 68

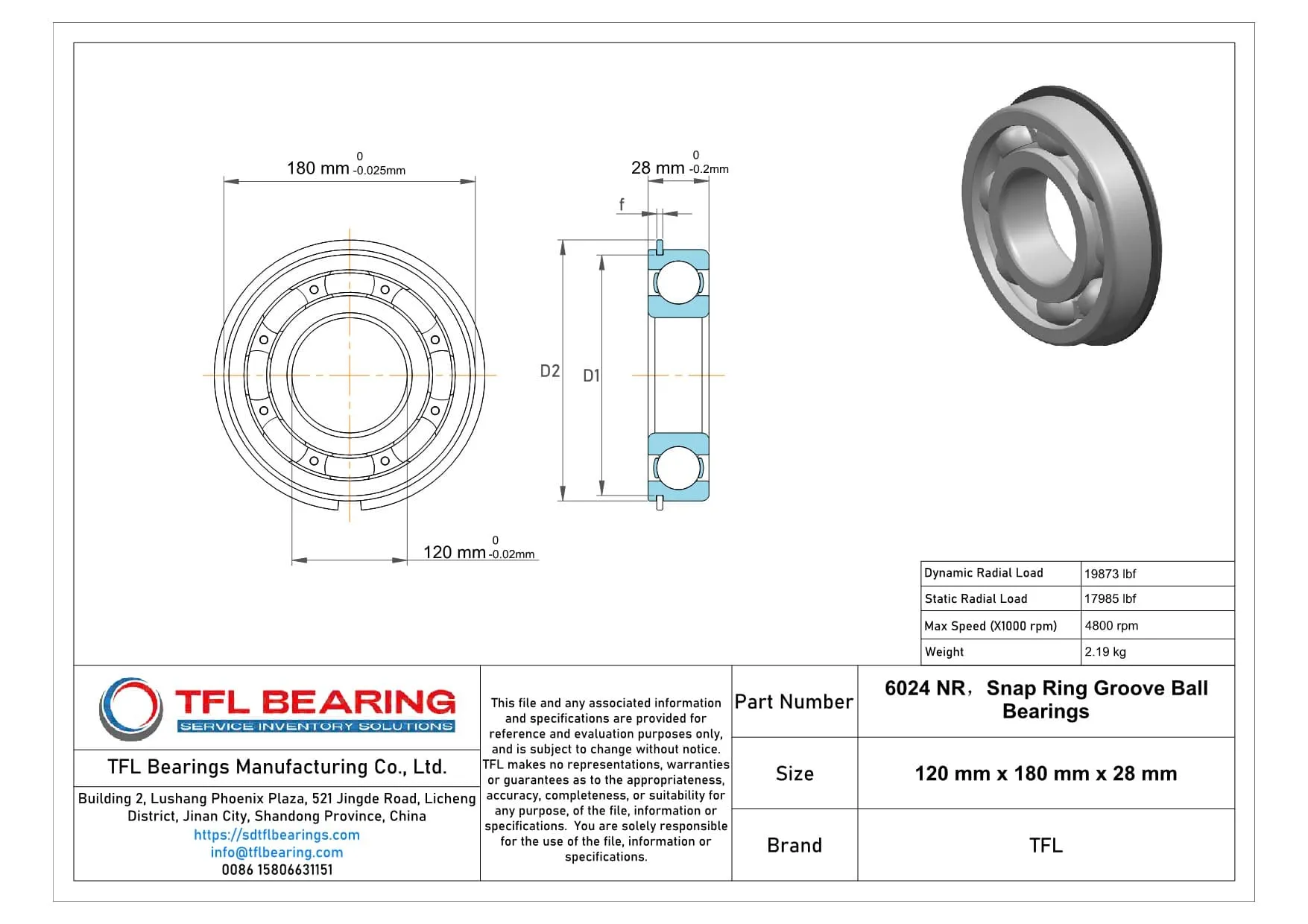

Snap Ring Groove Ball Bearings 6024 NR dimension drawing
Download DWG Download PDF

Features

Performance Features of 6024 NR Bearing

6024 NR Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19873 lbf, making it suitable for demanding applications.

The snap ring groove on the outer ring ensures secure mounting, reducing the risk of misalignment.
With a maximum speed of 4,800 rpm, it delivers reliable performance in various conditions.

Stainless steel cage maintains ball alignment, extending the bearing’s service life.
Its temperature range of -30° to 120°C allows operation in diverse environments.

Application

Industrial Uses of 6024 NR Bearing
6024 NR Bearing is commonly used in industrial machinery, such as conveyor systems and gearboxes, where its snap ring groove ensures secure outer ring positioning. The chrome steel construction provides durability in demanding environments.

Where Is 6024 NR Bearing Used?
You’ll often find 6024 NR Bearing in automotive applications like wheel hubs, where its radial load capacity handles heavy weights smoothly. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 6024 NR Bearing
6024 NR Bearing excels in construction equipment, such as cranes, thanks to its high static radial load rating. The stainless steel cage adds corrosion resistance, making it suitable for outdoor use.

Automotive vs Industrial: Applications of 6024 NR Bearing
In automotive settings, 6024 NR Bearing supports wheel assemblies, while in industrial gearboxes, it manages radial loads efficiently. Its snap ring feature simplifies installation in tight spaces.

Perfect Fit for Automation: 6024 NR Bearing
6024 NR Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The metric sizing ensures compatibility with a wide range of machinery.
