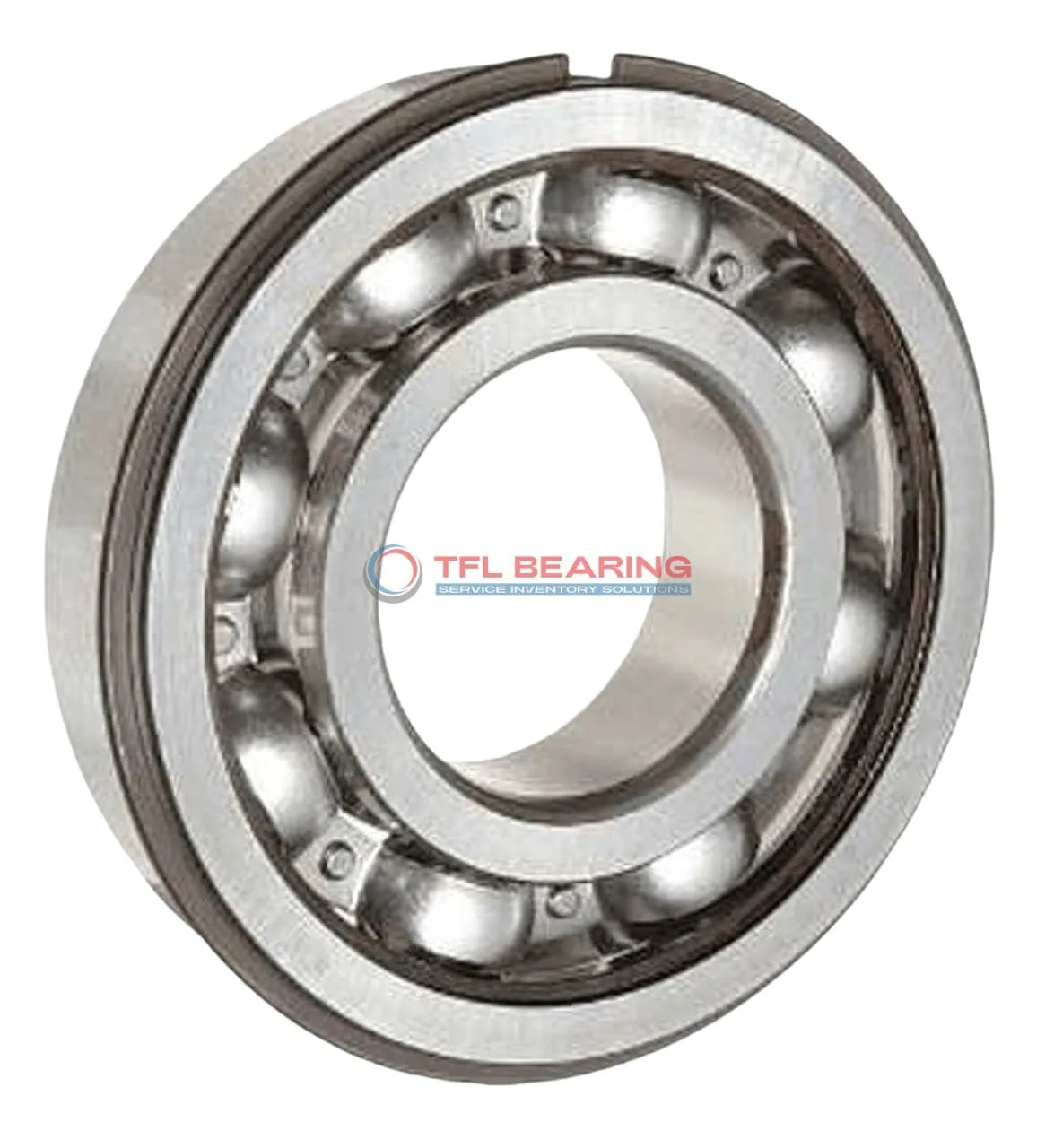

Snap Ring Groove Ball Bearings 6020 NR

Snap Ring Groove Ball Bearings 6020 NR

The 6020 NR is a snap ring groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14320 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design and stainless steel cage ensure durability, while the snap ring feature provides secure outer ring positioning. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or motors where radial loads and secure mounting are key.

Weighing 1.31kg, it offers a robust solution for industrial use. Compliant with REACH standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 159.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 14320 lbf
  • Static Radial Load 12140 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 1.31 kg
  • Price（$） 48.7
Snap Ring Groove Ball Bearings 6020 NR dimension drawing
Download DWG Download PDF

Features

Why Choose 6020 NR Bearing for Precision Tasks?

6020 NR Bearing features a snap ring groove on the outer ring, ensuring secure placement in assemblies.
Its chrome steel construction provides excellent resistance to wear, maintaining precision over time.

The dynamic radial load capacity of 14,320 lbf makes it suitable for demanding radial load applications.
With a maximum speed of 5,600 rpm, it balances performance and durability in high-speed operations.

The stainless steel cage keeps the balls aligned, reducing friction and extending service life.
Its temperature range of -30° to 120°C ensures reliable performance in various environments.

Application

Common Applications of 6020 NR Bearing
6020 NR Bearing is widely used in industrial machinery, especially in gearboxes and pumps where radial load support is essential. Its snap ring groove design simplifies installation and maintenance in tight spaces.

In automotive applications, 6020 NR Bearing fits well in wheel hubs and transmission systems, offering reliable performance under heavy loads. The chrome steel construction ensures durability even in demanding driving conditions.

For automation equipment, 6020 NR Bearing provides smooth operation in robotic arms and conveyor systems. The open seal type allows for easy lubrication, extending the bearing’s service life.

Medical devices like centrifuges benefit from 6020 NR Bearing’s precision and stability. The stainless steel cage helps maintain performance in high-speed, sterile environments.

Household appliances such as washing machines often use 6020 NR Bearing for its quiet operation and long-lasting reliability. The metric sizing makes it compatible with various European and Asian models.
