Snap Ring Groove Ball Bearings 6015NR/C3

Snap Ring Groove Ball Bearings 6015NR/C3

The 6015NR/C3 is a snap ring groove ball bearing with a 75mm bore and 115mm outer diameter, measuring 20mm in width. Made from durable chrome steel, it handles radial loads up to 8902 lbf and operates smoothly at speeds up to 5600 RPM.

Its snap ring design on the outer ring ensures secure fitting, making installation and removal straightforward. The open seal type allows for easy maintenance and lubrication.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. Suitable for temperatures ranging from -30°C to 120°C, it works well in various industrial settings.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for applications like motors or pumps where secure mounting is essential. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6015NR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015 mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015 mm to 0
  • Width 20 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 121.6 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 8902 lbf
  • Static Radial Load 7531 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Price（$） 30.6

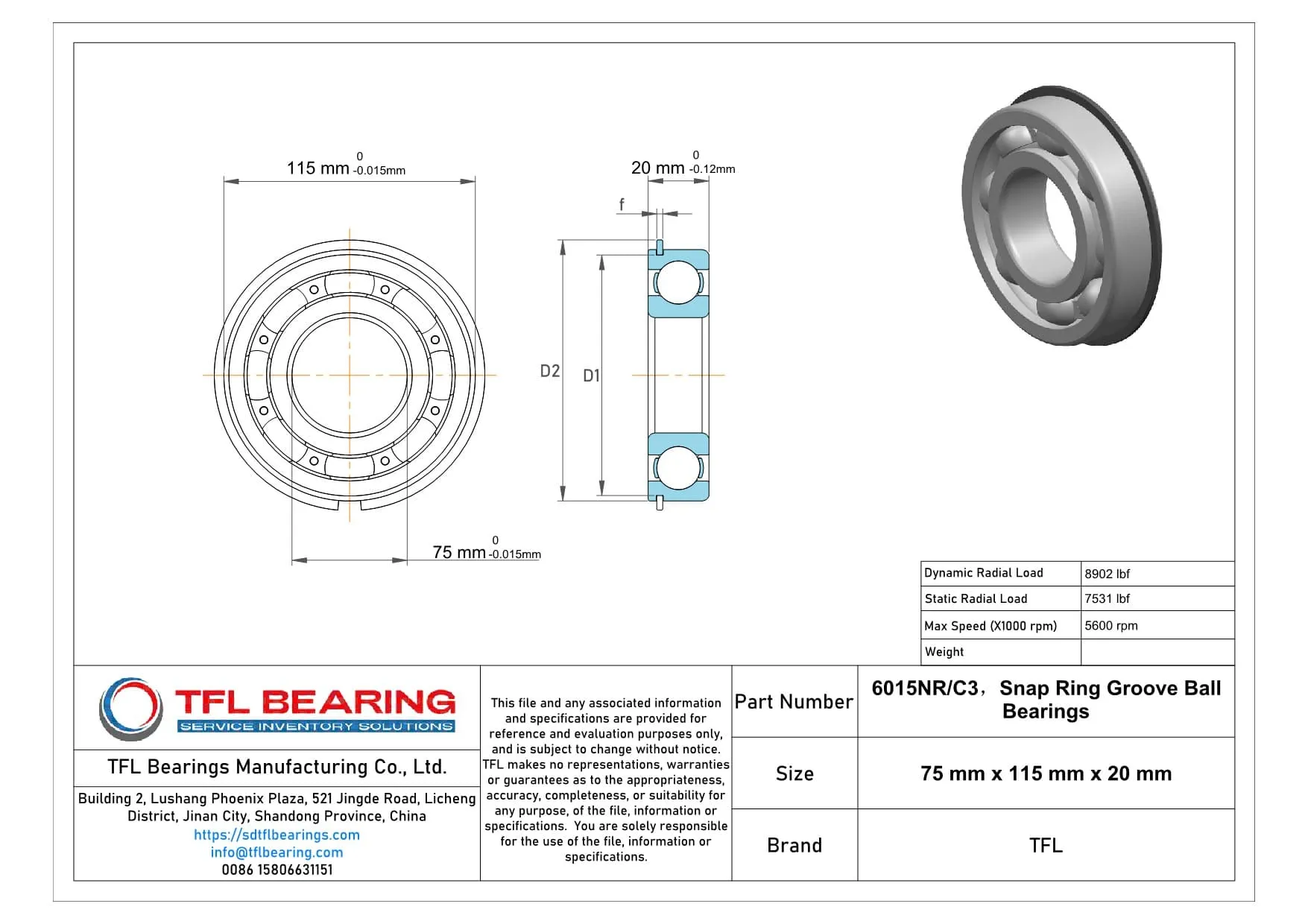

Snap Ring Groove Ball Bearings 6015NR/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6015NR/C3 Bearing

6015NR/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8902 lbf, ensuring reliable performance in various applications.

The snap ring groove on the outer ring provides secure mounting, simplifying installation.
With a maximum speed of 5,600 rpm, it balances durability and efficiency for smooth operation.

6015NR/C3 Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
Its C3 radial clearance allows for thermal expansion, reducing stress during operation.

Application

Industrial Uses of 6015NR/C3 Bearing
The 6015NR/C3 Bearing is commonly used in industrial machinery like pumps and gearboxes, where its snap ring groove ensures secure outer ring positioning. Its C3 radial clearance allows for thermal expansion in high-speed applications.

In automotive systems, 6015NR/C3 Bearing fits well in wheel hubs and transmission units, thanks to its durable chrome steel construction. The open design simplifies lubrication, extending service life in demanding conditions.

For automation equipment, 6015NR/C3 Bearing provides reliable performance in robotic arms and conveyor systems. Its metric sizing makes it compatible with a variety of European and Asian machinery standards.

Where to Use 6015NR/C3 Bearing
You’ll find 6015NR/C3 Bearing in household appliances like washing machines, where its smooth operation reduces noise. The snap ring feature adds stability during high-speed spinning cycles.

In medical devices, 6015NR/C3 Bearing offers consistent performance in imaging equipment and lab instruments. Its chrome steel components resist wear, ensuring long-term reliability in critical applications.
