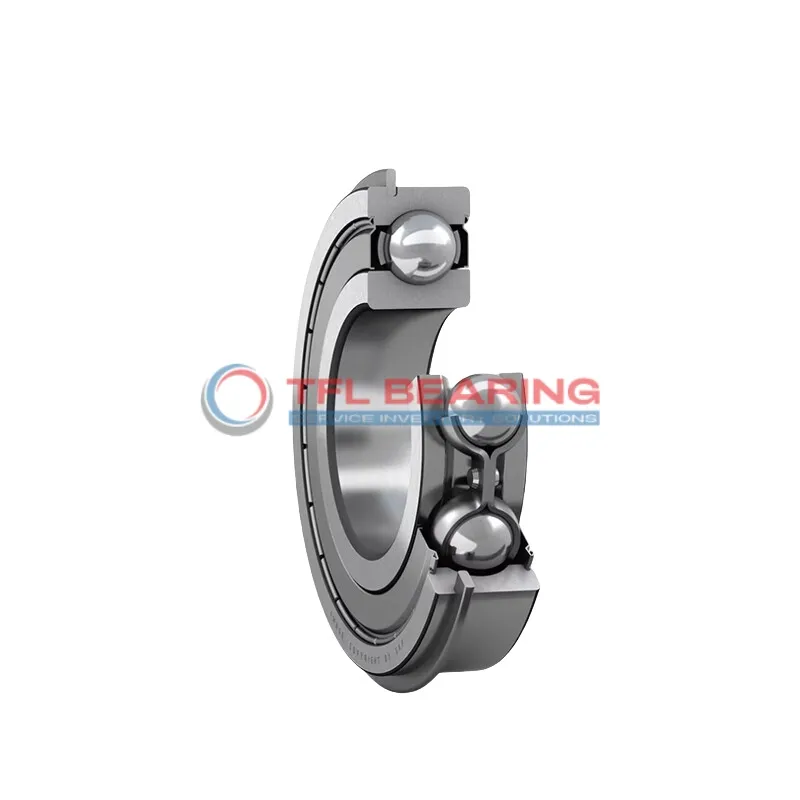

Snap Ring Groove Ball Bearings 6013-2ZNR/C3GJN

Snap Ring Groove Ball Bearings 6013-2ZNR/C3GJN

The 6013-2ZNR/C3GJN is a shielded ball bearing with a 65mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6857 lbf and operates smoothly at speeds up to 6700 RPM.

Its snap ring groove on the outer ring ensures secure fitting, while the C3 radial clearance allows for slight misalignment. The shielded design keeps contaminants out, extending its lifespan.

This bearing suits moderate-speed applications like electric motors or pumps, where reliable radial load support is needed. It performs well in temperatures from -30°C to 120°C.

Weighing 430g, it’s a sturdy choice for industrial use. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-2ZNR/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 106.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 430 g
  • Price（$） 18.83
Snap Ring Groove Ball Bearings 6013-2ZNR/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6013-2ZNR/C3GJN Bearing Reduce Friction?

6013-2ZNR/C3GJN Bearing features chrome steel rings and balls, designed to minimise friction during operation.

The shielded design helps keep contaminants out, ensuring smooth performance over time.

With a dynamic radial load capacity of 6857 lbf, it handles demanding radial loads efficiently.

Its snap ring groove provides secure mounting, reducing vibration and wear.

Application

Common Applications of 6013-2ZNR/C3GJN Bearing
6013-2ZNR/C3GJN Bearing is widely used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6013-2ZNR/C3GJN Bearing fits well in wheel hubs and transmission systems, thanks to its radial load capacity. The C3 clearance allows for thermal expansion, ensuring reliable performance in varying temperatures.

For automation equipment, 6013-2ZNR/C3GJN Bearing provides smooth rotation in robotic arms and conveyor belts. Its chrome steel construction offers durability, while the snap ring simplifies installation and maintenance.

In household appliances like washing machines, 6013-2ZNR/C3GJN Bearing ensures quiet and efficient operation. The shielded seals protect against dust and moisture, extending the bearing’s lifespan in everyday use.
