Snap Ring Groove Ball Bearings 6010 NR

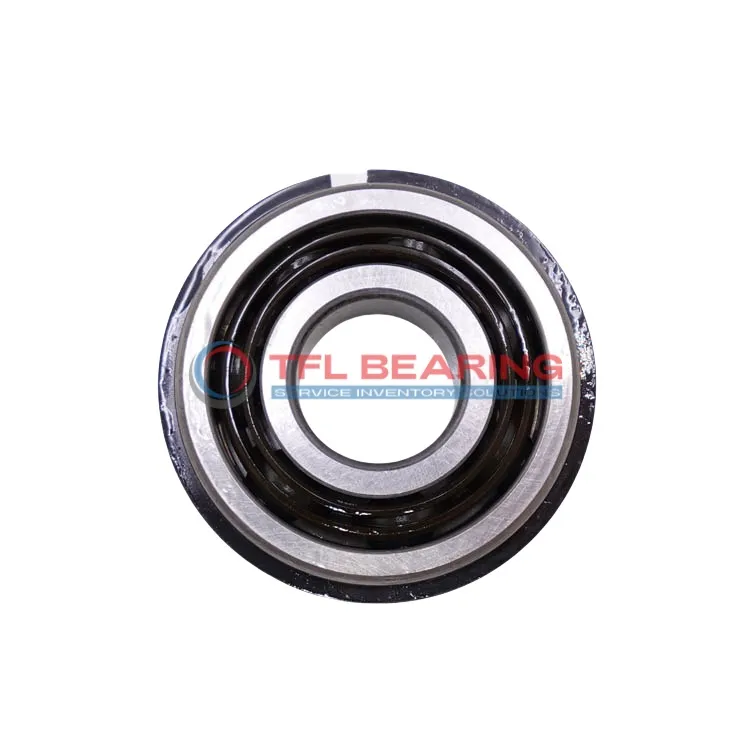

Snap Ring Groove Ball Bearings 6010 NR

The 6010 NR is a snap ring groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5148 lbf and operates smoothly at speeds up to 11000 RPM.

Its open design and stainless steel cage ensure durability, while the snap ring on the outer ring keeps it securely in place. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like motors or pumps where radial loads are common.

Weighing 0.27kg, it’s lightweight yet robust. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5148 lbf
  • Static Radial Load 3507 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.27 kg
  • Price（$） 10.57
Snap Ring Groove Ball Bearings 6010 NR dimension drawing
Download DWG Download PDF

Features

How Does 6010 NR Bearing Reduce Friction?

6010 NR Bearing features chrome steel rings and balls, designed to minimise friction during operation.
The stainless steel cage ensures smooth movement of the balls, enhancing efficiency.

With a dynamic radial load capacity of 5148 lbf, it handles demanding radial loads effectively.
Its snap ring groove design provides secure fitting, reducing vibration and wear.

The bearing operates smoothly at speeds up to 11,000 rpm, maintaining performance.
Its temperature range of -30° to 120°C ensures reliability in various conditions.

Application

Common Applications of 6010 NR Bearing
In industrial settings, 6010 NR Bearing is commonly used in conveyor systems and gearboxes, where its snap ring groove ensures secure mounting. The open design allows for easy lubrication, extending service life in demanding conditions.

How Does 6010 NR Bearing Improve Performance?
For automotive applications like electric motors, 6010 NR Bearing offers reliable radial load support with its chrome steel construction. The snap ring feature simplifies installation, reducing downtime during maintenance.

Ideal for Precision: 6010 NR Bearing
In medical imaging devices, 6010 NR Bearing provides smooth rotation thanks to its stainless steel cage and consistent tolerances. Its compact width makes it suitable for space-constrained equipment.

Automotive vs Industrial: Applications of 6010 NR Bearing
While 6010 NR Bearing handles radial loads well in vehicle transmissions, it also excels in industrial pumps due to its snap ring stability. The metric sizing ensures compatibility across various machinery types.

Where Is 6010 NR Bearing Used?
You’ll find 6010 NR Bearing in office printers and home appliances, where its quiet operation matters. The P0 tolerance class ensures consistent performance for everyday reliability.
