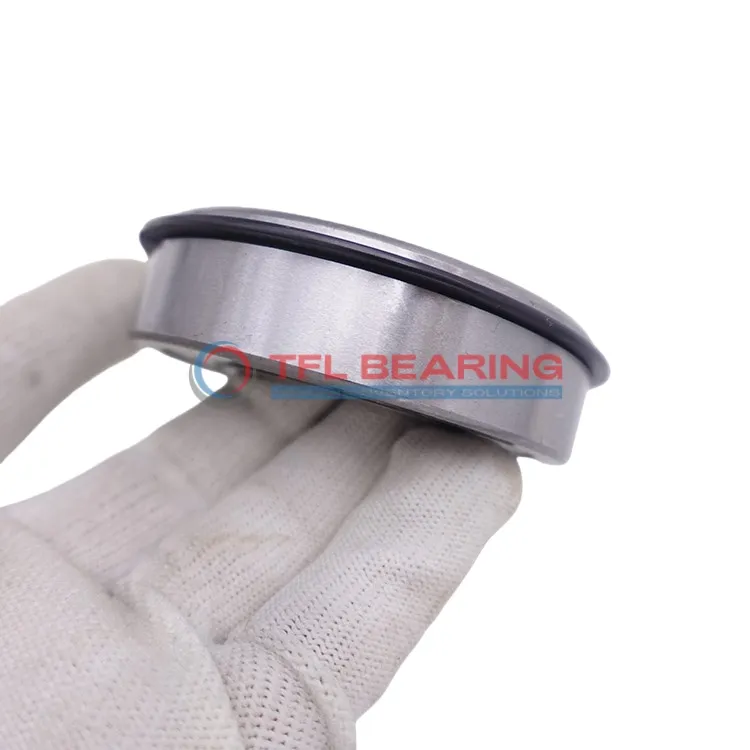

Snap Ring Groove Ball Bearings 6005-2RSHNR

Snap Ring Groove Ball Bearings 6005-2RSHNR

The 6005-2RSHNR is a sealed ball bearing with a 25mm bore and 47mm outer diameter, designed for radial loads. Its compact 12mm width makes it suitable for tight spaces, while the snap ring groove ensures secure fitting.

Made from chrome steel, it handles dynamic loads up to 2271 lbf and spins smoothly at 15,000 RPM. The sealed design keeps dirt out and lubrication in, extending its lifespan.

This bearing operates in temperatures from -30°C to 120°C and weighs just 80g. It’s interchangeable with SKF models for easy replacement.

Ideal for electric motors, pumps, or gearboxes where reliable radial load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005-2RSHNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 52.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 80 g
  • Price（$） 8.13

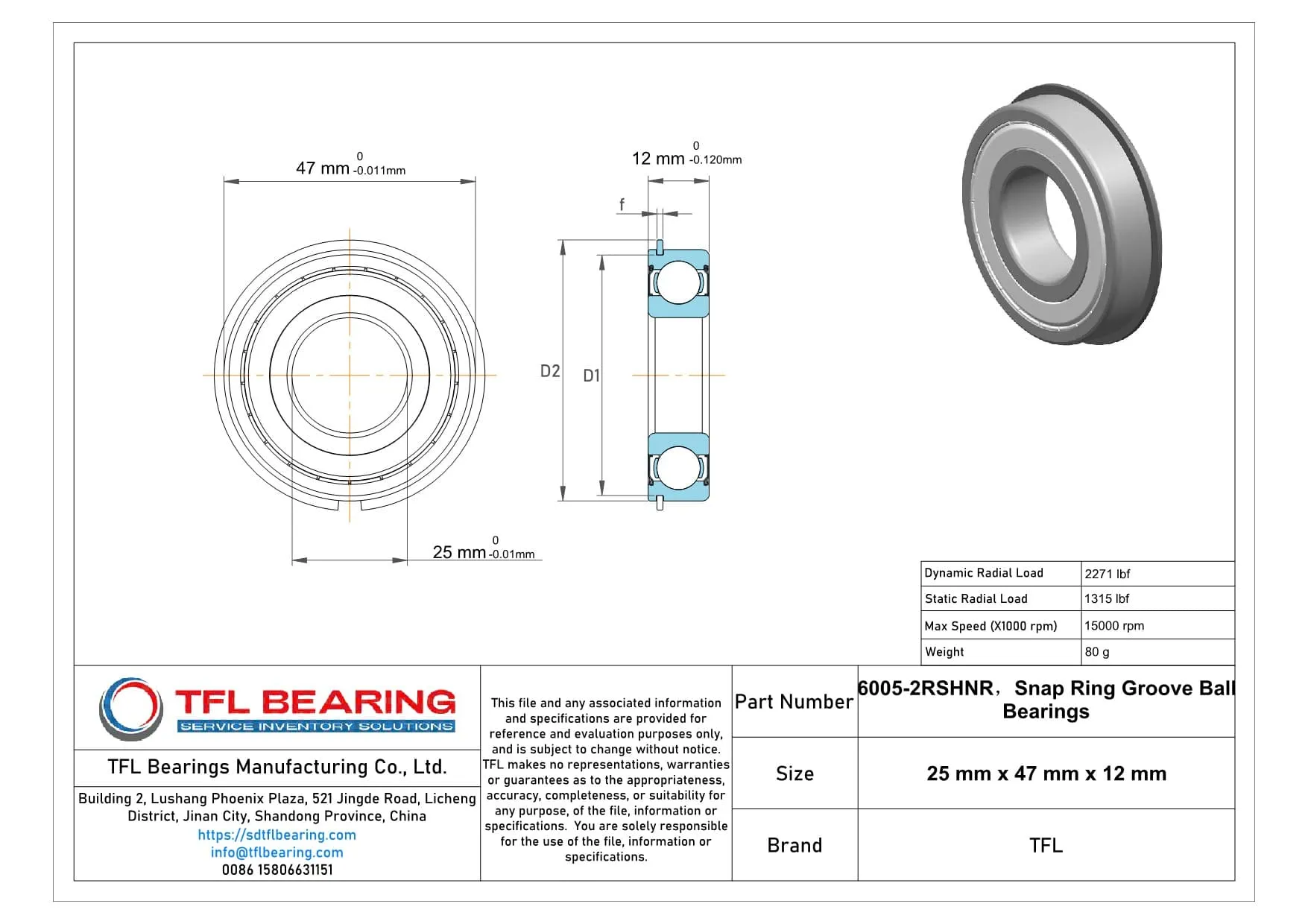

Snap Ring Groove Ball Bearings 6005-2RSHNR dimension drawing
Download DWG Download PDF

Features

How Does 6005-2RSHNR Bearing Reduce Friction?

6005-2RSHNR Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.

The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.
With a dynamic radial load capacity of 2271 lbf, it handles demanding applications effortlessly.

6005-2RSHNR Bearing operates at speeds up to 15,000 rpm, making it suitable for high-speed machinery.
Its temperature range of -30° to 120°C ensures reliability in various working conditions.

Application

Common Applications of 6005-2RSHNR Bearing
6005-2RSHNR Bearing is widely used in industrial machinery, especially in conveyor systems and electric motors where radial load support is essential. Its sealed design keeps contaminants out, ensuring longer service life in dusty environments.

How Does 6005-2RSHNR Bearing Improve Performance?
In automotive applications like alternators and water pumps, 6005-2RSHNR Bearing’s snap ring feature provides secure mounting, reducing vibration and noise. The chrome steel construction also handles high speeds effortlessly.

Perfect Fit for Automation: 6005-2RSHNR Bearing
6005-2RSHNR Bearing works well in robotic arms and automated assembly lines, thanks to its compact size and reliable sealed design. The ABEC 1 tolerance ensures smooth operation for precision tasks.

Light-Duty vs Heavy-Duty: Best Uses for 6005-2RSHNR Bearing
For light-duty applications like office printers, 6005-2RSHNR Bearing offers quiet and efficient performance. In heavier setups like small gearboxes, its dynamic load capacity ensures durability under stress.

Where Is 6005-2RSHNR Bearing Used?
You’ll often find 6005-2RSHNR Bearing in household appliances like washing machines, where its sealed design protects against moisture and detergent exposure. The metric sizing makes it easy to replace in most European models.
