Constant Section (CS) Bearings SG100XP0

Constant Section (CS) Bearings SG100XP0

The SG100XP0 is a constant section bearing measuring 10″×12″×1″, made from durable stainless steel with a brass cage. It handles dynamic radial loads up to 12147 lbf and dynamic thrust loads up to 19040 lbf, suitable for moderate-speed applications.

Its thin-section design saves space while maintaining strength, and the open seal allows for easy lubrication. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications like robotics or medical equipment where precision and compact design are key.

Weighing 7.9 lbs, it’s lightweight yet robust, and compliant with RoHS standards for safe use. The ABEC-1 tolerance ensures reliable performance without over-engineering.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SG100XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 12"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 10.742"
  • Internal Diameter On Outer Ring (Small Side Face) 11.258"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 12147 lbf
  • Static Radial Load 18060 lbf
  • Static Thrust Load 45140 lbf
  • Static Moment 99320 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 50 lbf
  • Dynamic Thrust Load 19040 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 7.9 lbs
  • price（$） 542.98

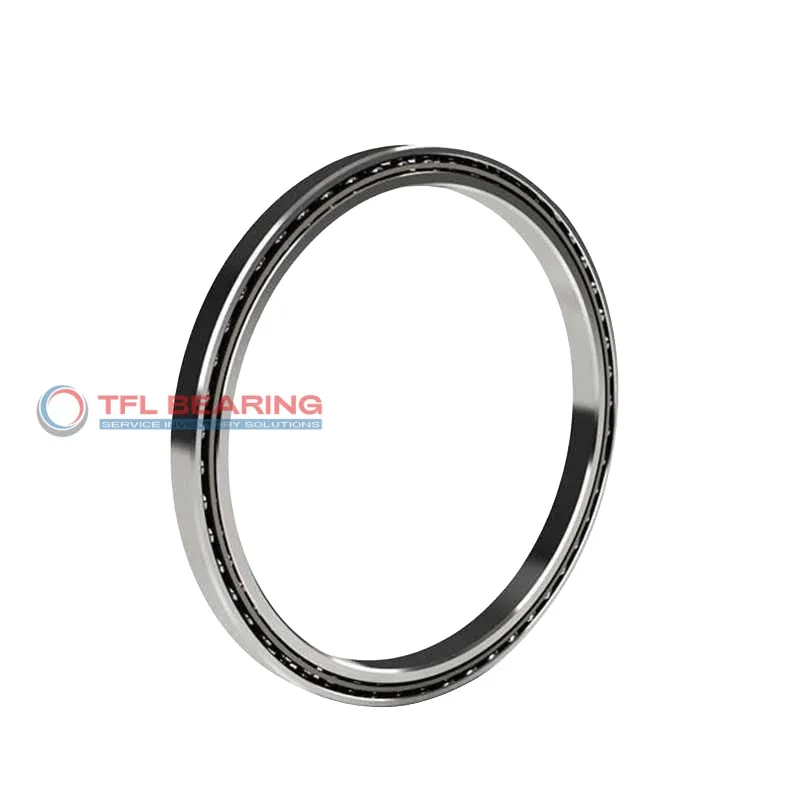

Constant Section (CS) Bearings SG100XP0 dimension drawing
Download DWG Download PDF
