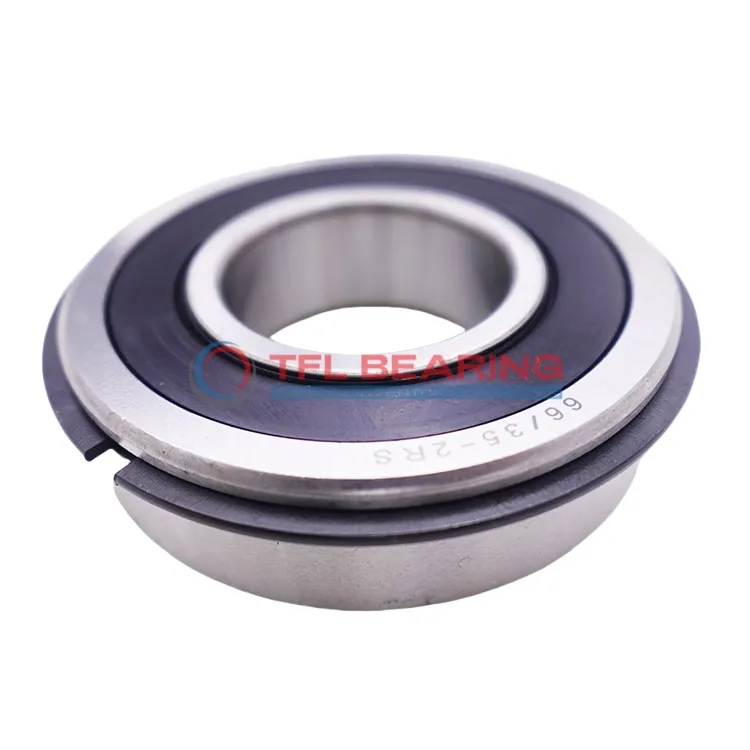

Snap Ring Groove Ball Bearings 6003-2RSHNR

Snap Ring Groove Ball Bearings 6003-2RSHNR

The 6003-2RSHNR is a compact snap ring groove ball bearing, measuring 17mm in bore and 35mm in outer diameter, with a width of 10mm. Made from durable chrome steel, it handles radial loads up to 1349 lbf and spins smoothly at speeds up to 21000 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The snap ring on the outer ring ensures secure fitting, making installation straightforward.

This bearing operates well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing just 39g, it’s lightweight yet sturdy. Ideal for applications like electric motors or small machinery where secure mounting and low maintenance are key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6003-2RSHNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 39.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 21000 rpm
  • Weight 39 g
  • Price（$） 4.74

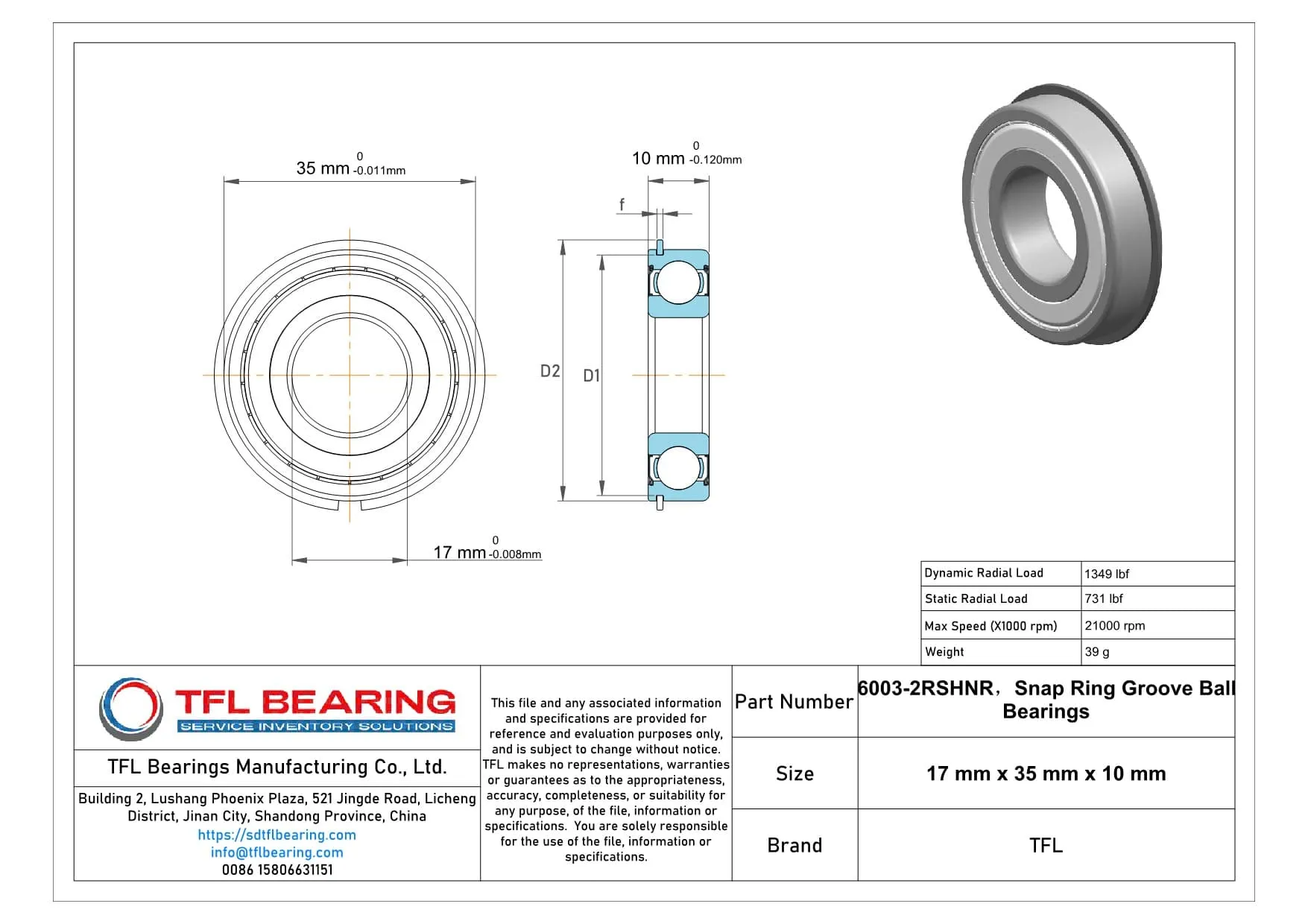

Snap Ring Groove Ball Bearings 6003-2RSHNR dimension drawing
Download DWG Download PDF

Features

How Does 6003-2RSHNR Bearing Reduce Friction?

6003-2RSHNR Bearing features sealed construction with chrome steel components, ensuring smooth operation and reduced friction.
Its snap ring groove design provides secure fitting, minimising movement and wear during use.
The bearing handles dynamic radial loads up to 1349 lbf, making it suitable for various applications.
With a maximum speed of 21,000 rpm, it offers reliable performance in high-speed conditions.

Application

Common Applications of 6003-2RSHNR Bearing
6003-2RSHNR Bearing is widely used in industrial equipment like conveyor belts and small electric motors, where its sealed design keeps contaminants out. The snap ring feature ensures secure mounting, making it ideal for compact spaces.

In automotive applications, 6003-2RSHNR Bearing fits well in alternators and water pumps, providing reliable radial load support. Its chrome steel construction offers durability even in high-temperature environments.

For home appliances, 6003-2RSHNR Bearing works smoothly in washing machines and fans, thanks to its low-maintenance sealed design. The ABEC 1 tolerance ensures consistent performance over time.

What Makes 6003-2RSHNR Bearing a Preferred Choice?
6003-2RSHNR Bearing’s combination of sealed protection and snap ring mounting makes it versatile for both industrial and consumer uses. Its lightweight design at just 39 grams is perfect for applications where space and weight matter.

The bearing’s temperature range of -30° to 120°C allows it to perform reliably in various climates. Whether in machinery or household gadgets, 6003-2RSHNR Bearing delivers steady operation with minimal upkeep.
