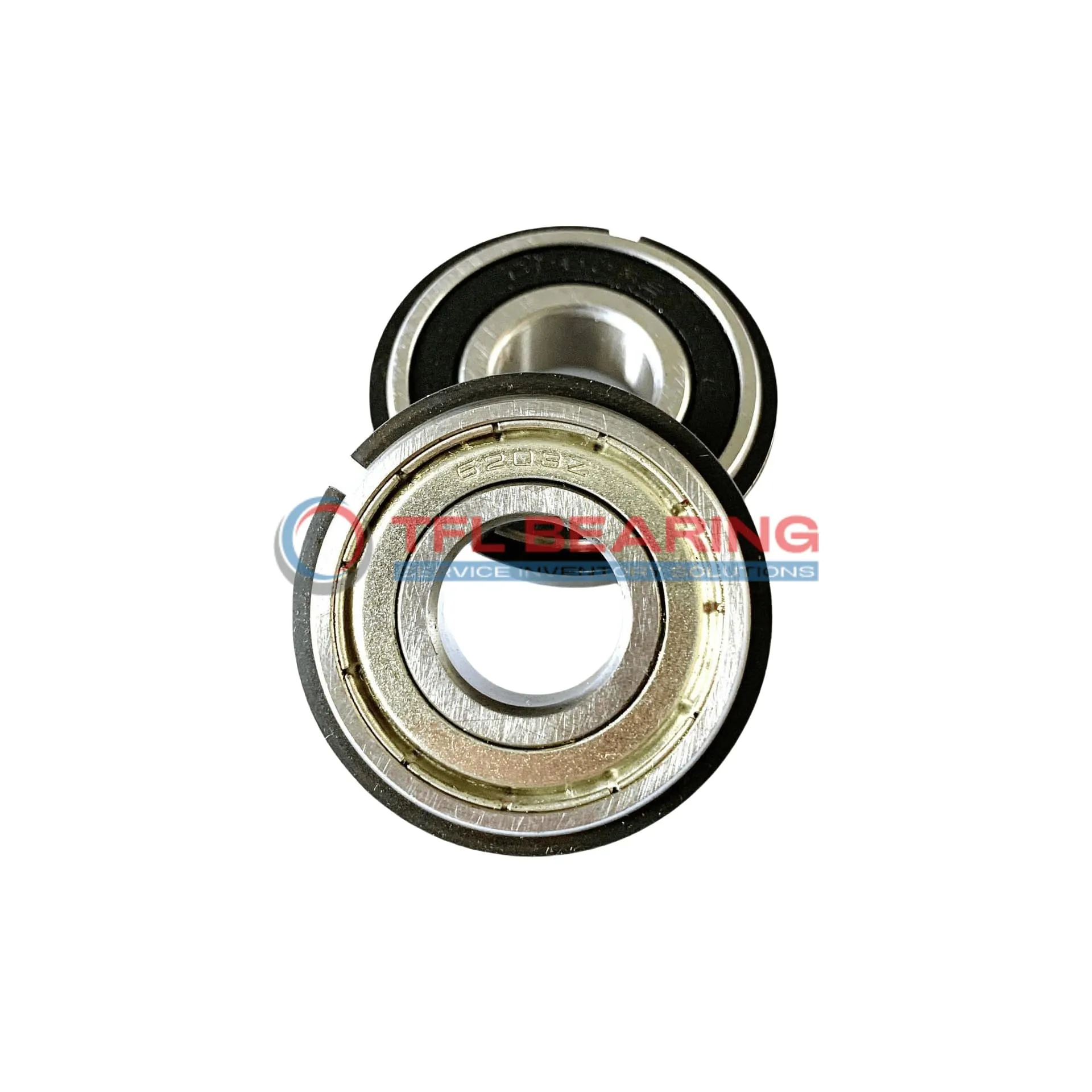

Snap Ring Groove Ball Bearings 6002-2ZNR

Snap Ring Groove Ball Bearings 6002-2ZNR

The 6002-2ZNR is a compact snap ring groove ball bearing with a 15mm bore and 32mm outer diameter, measuring just 9mm in width. Made from chrome steel, it handles radial loads up to 1259 lbf and spins smoothly at speeds up to 23,000 RPM.

Its shielded design keeps dirt out while the snap ring ensures a secure fit in housings. The bearing operates in temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or small machinery where space is limited.

Weighing only 30g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6002-2ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 36.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1259 lbf
  • Static Radial Load 641 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 23000 rpm
  • Weight 30 g
  • Price（$） 3.6
Snap Ring Groove Ball Bearings 6002-2ZNR dimension drawing
Download DWG Download PDF

Features

How Does 6002-2ZNR Bearing Reduce Friction?

6002-2ZNR Bearing features chrome steel rings and balls, designed to minimise friction during operation.
Its shielded design helps keep contaminants out, ensuring smoother performance over time.
The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.
With a maximum speed of 23,000 rpm, it offers reliable efficiency for various applications.

Application

Common Applications of 6002-2ZNR Bearing
6002-2ZNR Bearing is widely used in industrial equipment like conveyor belts and small motors, where its shielded design keeps contaminants out. The snap ring feature ensures secure mounting in compact spaces.

In automotive applications, 6002-2ZNR Bearing fits well in electric window mechanisms and small gearboxes. Its chrome steel construction offers durability for everyday use.

For home appliances, 6002-2ZNR Bearing works smoothly in washing machine pumps and kitchen mixers. The ABEC 1 tolerance provides reliable performance without unnecessary complexity.

Automation systems benefit from 6002-2ZNR Bearing in robotic joint movements, where its lightweight design helps reduce energy consumption. The 23,000 rpm speed rating handles most moderate-speed applications comfortably.

Medical devices like dental drills use 6002-2ZNR Bearing for its consistent rotation and easy maintenance. The snap ring simplifies replacement during routine servicing.
