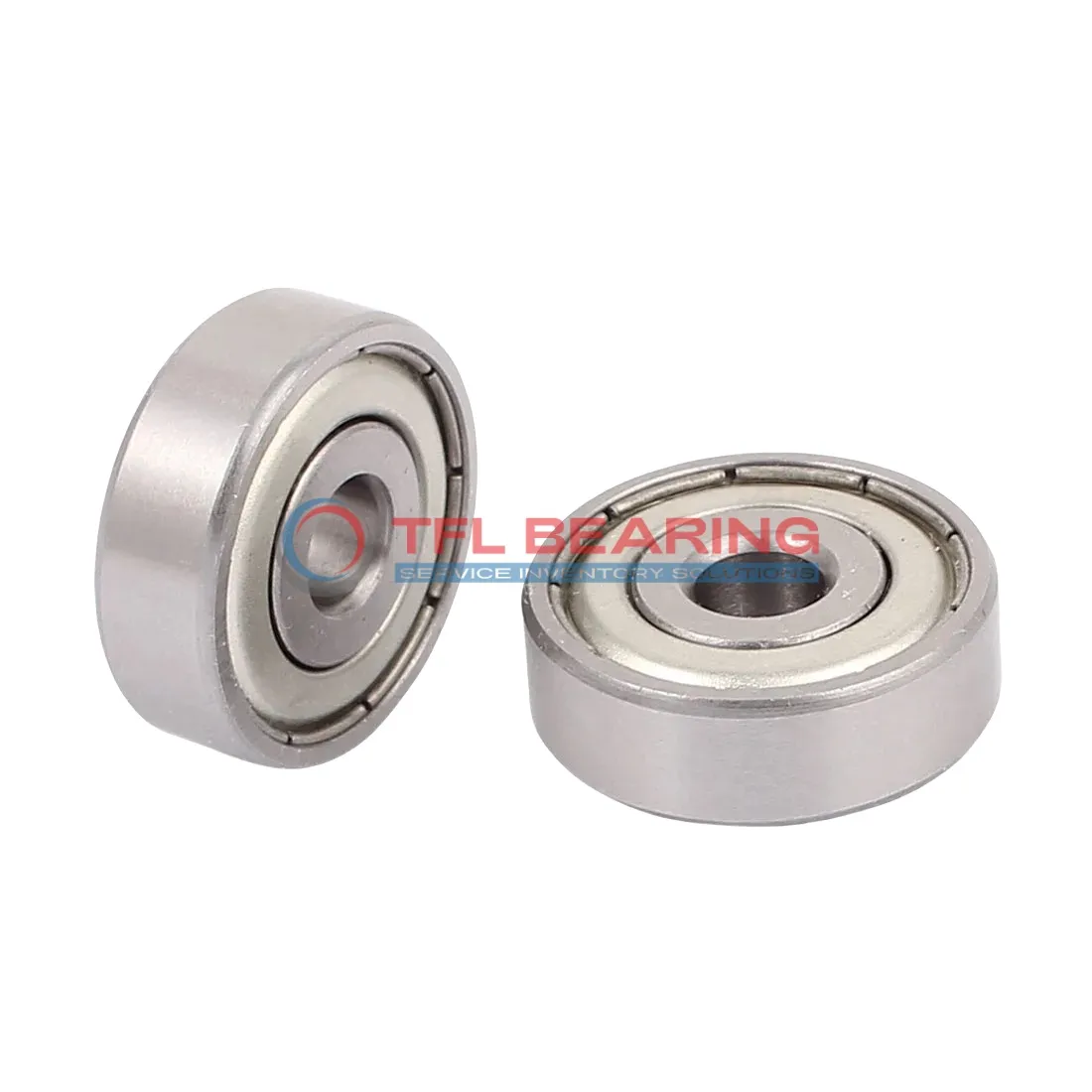

Single Row Deep Groove Ball Bearings 6026-2Z

Single Row Deep Groove Ball Bearings 6026-2Z

The 6026-2Z is a single-row deep groove ball bearing with a 130mm bore and 200mm outer diameter, designed for radial loads. It’s built from sturdy chrome steel and can handle dynamic loads up to 25179 lbf, with a maximum speed of 3400 RPM.

Shielded on both sides, this bearing keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring smooth operation even under heavy use. It works well in temperatures from -30°C to 120°C.

With a P6 tolerance class, it offers precise performance for demanding applications. Ideal for industrial machinery, pumps, or electric motors where reliability is key. Weighing 3.36kg, it’s robust yet manageable for its size.

Compliant with RoHS and REACH standards, it’s a safe choice for various industries. Interchangeable with SKF bearings, it’s a practical option for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6026-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 25179 lbf
  • Static Radial Load 22481 lbf
  • Max Speed 3400 rpm
  • Weight 3.36 kg
  • price（$） 91.908
Single Row Deep Groove Ball Bearings 6026-2Z dimension drawing
Download DWG Download PDF

Features

How Does 6026-2Z Bearing Reduce Friction?

6026-2Z Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while maintaining low friction during operation.

Its shielded design protects against contaminants, reducing wear and extending service life.
With a dynamic radial load capacity of 25179 lbf, it handles demanding applications reliably.

The grease lubrication system keeps 6026-2Z Bearing running quietly and efficiently.
It operates within a temperature range of -30° to 120°C, suitable for various environments.

Application

Industrial Uses of 6026-2Z Bearing
6026-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6026-2Z Bearing fits well in wheel hubs and transmission systems, offering reliable radial load support. Its metric dimensions make it compatible with various vehicle designs.

For automation equipment, 6026-2Z Bearing provides smooth operation in robotic arms and conveyor belts. The stainless steel cage enhances longevity, even with frequent use.

In household appliances, 6026-2Z Bearing is found in washing machines and fans, where its grease lubrication reduces maintenance needs. The temperature range suits both indoor and outdoor use.

Medical devices like centrifuges benefit from 6026-2Z Bearing’s precision and low noise. The P6 tolerance class ensures consistent performance in sensitive applications.
