SKF INSOCOAT Cylindrical Roller Bearings NU 1016 ECM/C3VL0241

SKF INSOCOAT Cylindrical Roller Bearings NU 1016 ECM/C3VL0241

The SKF INSOCOAT cylindrical roller bearing is a compact unit measuring 80mm by 125mm by 22mm, with a robust construction. It features an insulating coating on the outer ring for electrical protection.

This bearing supports substantial loads, with a dynamic rating of 285 kN and a static rating of 305 kN. It operates smoothly at speeds up to 4500 RPM, providing reliable performance.

Its machined brass cage enhances durability and guides rollers effectively. The C3 radial internal clearance allows for thermal expansion, making it suitable for various conditions.

Ideal for electric motors and generators, it prevents damage from stray currents. Weighing 1.04 kg, it is compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 1016 ECM/C3VL0241
  • Product Category INSOCOAT Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 80.0 mm
  • Outside Diameter 125.0 mm
  • Width 22.0 mm
  • Net Weight 1.04 kg
  • Basic Dynamic Load Rating 285.0 kN
  • Basic Static Load Rating 305.0 kN
  • Reference Speed 4500.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Machined brass
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

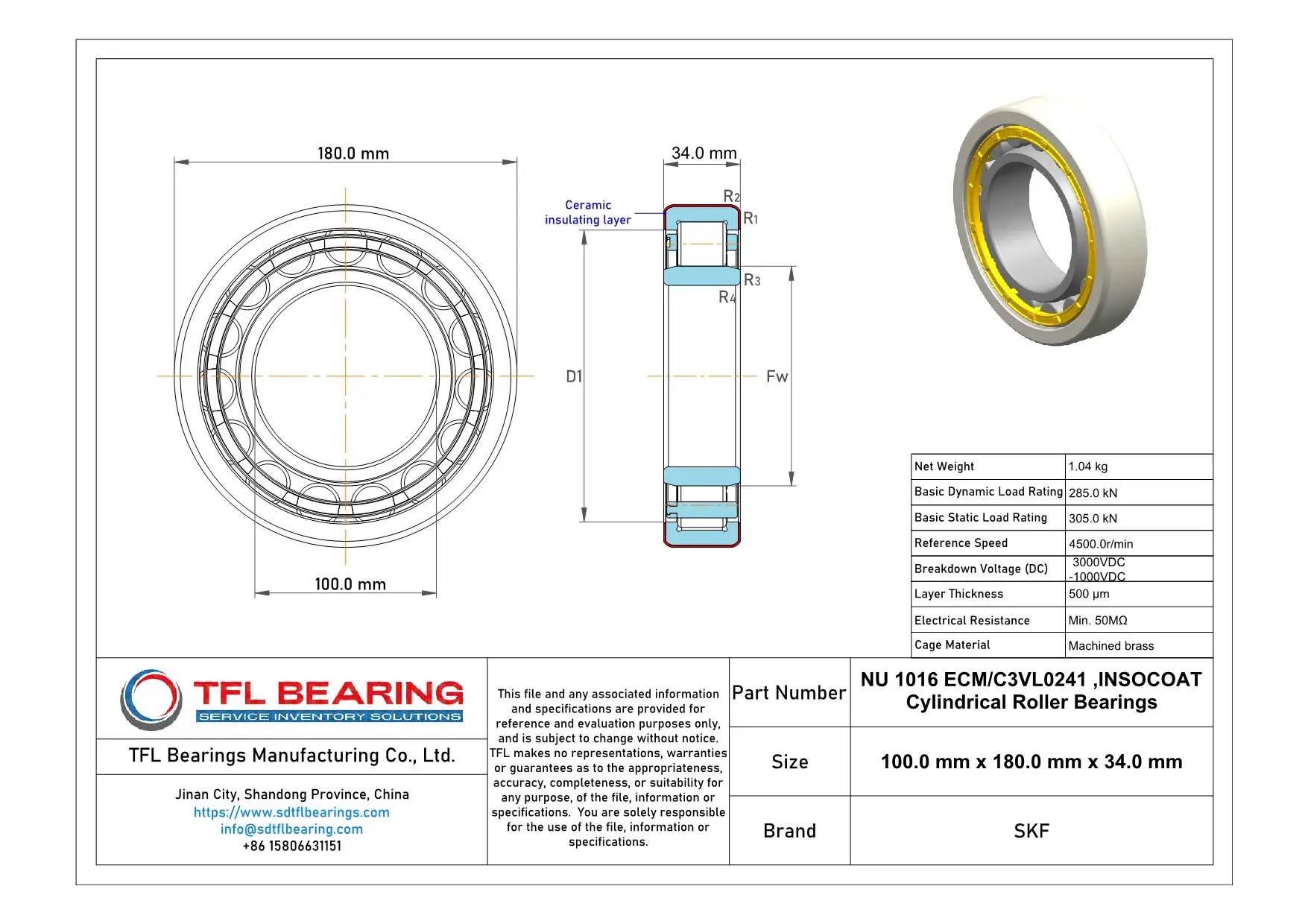

SKF INSOCOAT Cylindrical Roller Bearings NU 1016 ECM/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is NU 1016 ECM/C3VL0241 Bearing Engineered for Reliability?

NU 1016 ECM/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical damage in demanding environments.
This specialised coating provides a breakdown voltage between 1000-3000 VDC, ensuring reliable operation in electrically charged applications.
With a basic dynamic load rating of 285 kN, NU 1016 ECM/C3VL0241 Bearing handles substantial radial loads while maintaining consistent performance.
The machined brass cage maintains proper roller alignment, contributing to smooth operation and extended service life.

Application

Where Is NU 1016 ECM/C3VL0241 Bearing Used?
NU 1016 ECM/C3VL0241 Bearing often appears in industrial machinery like large pumps and conveyor systems, where its insulation coating protects against electrical damage. The cylindrical roller design handles substantial radial loads while maintaining smooth operation in demanding environments.
In automotive applications, NU 1016 ECM/C3VL0241 Bearing supports electric motor shafts and transmission components, particularly in hybrid vehicles where electrical insulation is crucial. Its C3 clearance accommodates thermal expansion during prolonged operation periods.
For medical imaging equipment, NU 1016 ECM/C3VL0241 Bearing’s consistent performance ensures precision in CT scanners and MRI systems. The machined brass cage provides reliable operation in sensitive diagnostic machinery where electrical interference must be minimized.
Within automation systems, NU 1016 ECM/C3VL0241 Bearing facilitates smooth movement in robotic arms and precision positioning equipment. The insulation coating prevents current passage that could affect sensitive electronic components in automated production lines.
