SKF INSOCOAT Cylindrical Roller Bearings NU 213 ECM/C3VL0241

SKF INSOCOAT Cylindrical Roller Bearings NU 213 ECM/C3VL0241

The SKF INSOCOAT cylindrical roller bearing is a compact unit measuring 65mm by 120mm by 23mm, featuring an insulating coating on its outer ring.
It handles dynamic loads up to 108 kN and can operate at speeds reaching 6700 rpm.
The brass cage provides durability, while the C3 internal clearance allows for thermal expansion in various conditions.
This bearing is well-suited for electric motors and generators, offering protection against electrical currents with a breakdown voltage from 1000 to 3000 VDC.
Weighing 0.94 kg, it meets RoHS and REACH standards for reliable, safe use in industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 213 ECM/C3VL0241
  • Product Category INSOCOAT Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 65.0 mm
  • Outside Diameter 120.0 mm
  • Width 23.0 mm
  • Net Weight 0.94 kg
  • Basic Dynamic Load Rating 108.0 kN
  • Basic Static Load Rating 102.0 kN
  • Reference Speed 6700.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Machined brass
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

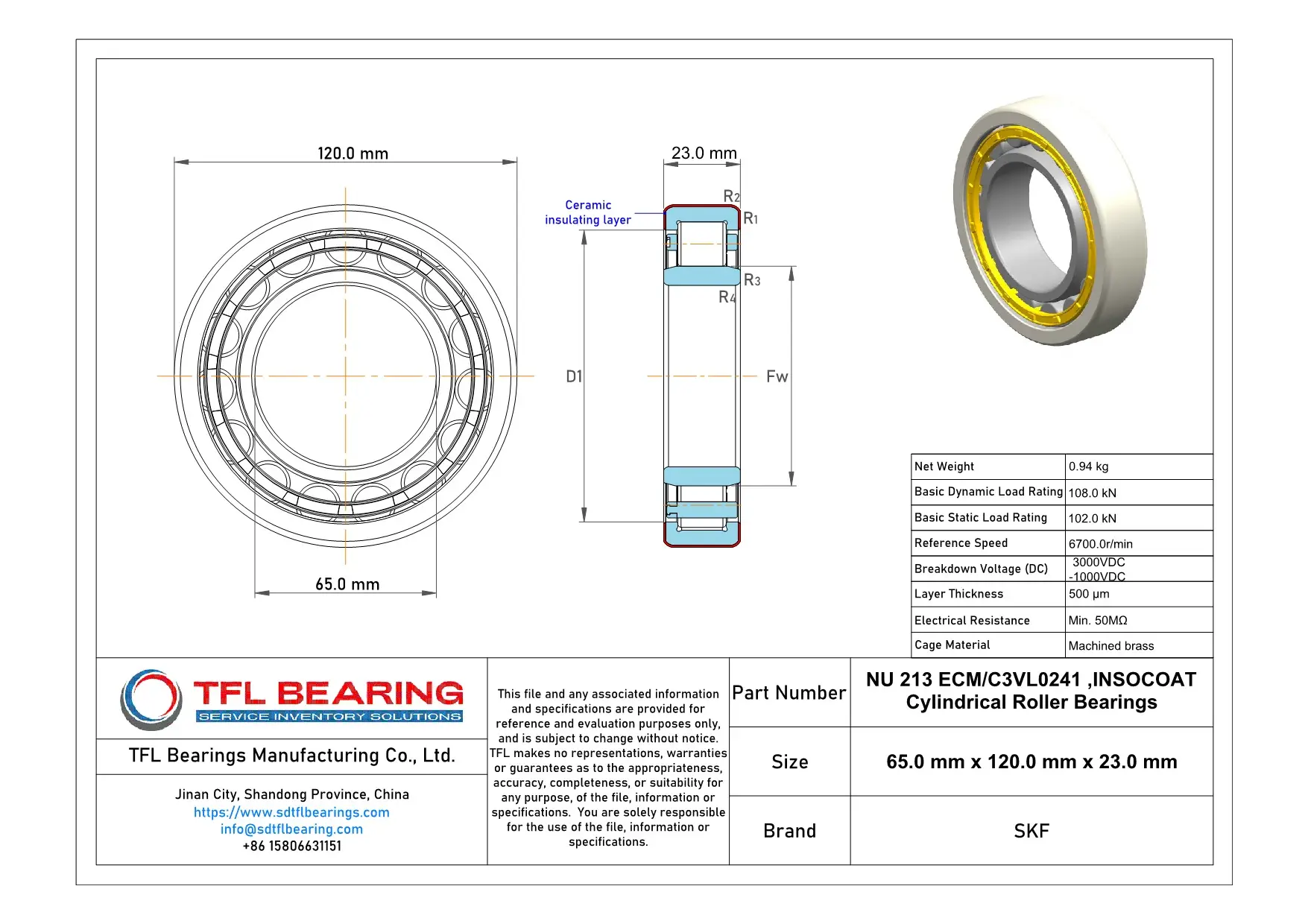

SKF INSOCOAT Cylindrical Roller Bearings NU 213 ECM/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is NU 213 ECM/C3VL0241 Bearing Engineered for Reliability?

NU 213 ECM/C3VL0241 Bearing features an insulation coating on its outer ring, protecting against electrical damage in demanding environments.
This cylindrical roller bearing handles dynamic loads up to 108.0 kN while maintaining stable operation at speeds reaching 6700 r/min.
The machined brass cage ensures proper roller guidance, reducing friction and extending service life.
With breakdown voltage protection from 1000 to 3000 VDC, it delivers consistent performance in electrically challenging applications.

Application

Industrial Uses of NU 213 ECM/C3VL0241 Bearing
NU 213 ECM/C3VL0241 Bearing works well in industrial equipment like large conveyor systems and heavy machinery. Its insulation coating helps prevent electrical damage from stray currents.

You’ll find NU 213 ECM/C3VL0241 Bearing supporting electric motor shafts in automotive applications. The brass cage maintains stability during high-speed rotation in demanding conditions.

For medical imaging devices, NU 213 ECM/C3VL0241 Bearing provides reliable performance where electrical insulation is necessary. The C3 clearance accommodates thermal expansion in precision equipment.

What Makes NU 213 ECM/C3VL0241 Bearing a Preferred Choice?
In automation systems, NU 213 ECM/C3VL0241 Bearing operates smoothly in robotic arms and positioning tables. The cylindrical roller design handles both radial and moderate thrust loads effectively.

NU 213 ECM/C3VL0241 Bearing fits perfectly in industrial fans and blowers where electrical insulation is required. Its consistent performance makes it suitable for continuous operation environments.

The bearing’s construction works reliably in electric vehicles and hybrid power systems. You get good electrical protection while maintaining mechanical performance in compact spaces.

Built for Heavy-Duty Use: NU 213 ECM/C3VL0241 Bearing
NU 213 ECM/C3VL0241 Bearing handles demanding conditions in machine tools and industrial gearboxes. The insulation coating protects against electrical erosion in motor-driven applications.

You can rely on NU 213 ECM/C3VL0241 Bearing for printing machinery and paper processing equipment. Its design accommodates thermal expansion while maintaining positional accuracy.

In pump systems and compressors, NU 213 ECM/C3VL0241 Bearing offers dependable service with its electrical insulation properties. The brass cage provides durability in lubricated environments.
