SKF INSOCOAT Cylindrical Roller Bearings NU 1014 ECP/C3VL0241

SKF INSOCOAT Cylindrical Roller Bearings NU 1014 ECP/C3VL0241

The NU 1014 ECP/C3VL0241 is an INSOCOAT cylindrical roller bearing with a 70mm bore and 110mm outer diameter, made by SKF. It features an insulating coating on the outer ring to protect against electrical damage.

This model handles dynamic loads up to 208 kN and static loads of 220 kN, spinning smoothly at reference speeds of 5000 RPM. Its C3 radial clearance allows for thermal expansion in various operating conditions.

The nylon cage reduces friction and wear, while the insulation prevents current passage that could cause premature failure. With breakdown voltage from 1000 to 3000 VDC, it offers reliable electrical resistance.

Ideal for electric motors, generators, or industrial machinery where electrical currents are present. Compliant with RoHS and REACH standards, weighing just 0.62kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 1014 ECP/C3VL0241
  • Product Category INSOCOAT Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 70.0 mm
  • Outside Diameter 110.0 mm
  • Width 20.0 mm
  • Net Weight 0.62 kg
  • Basic Dynamic Load Rating 208.0 kN
  • Basic Static Load Rating 220.0 kN
  • Reference Speed 5000.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Nylon
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

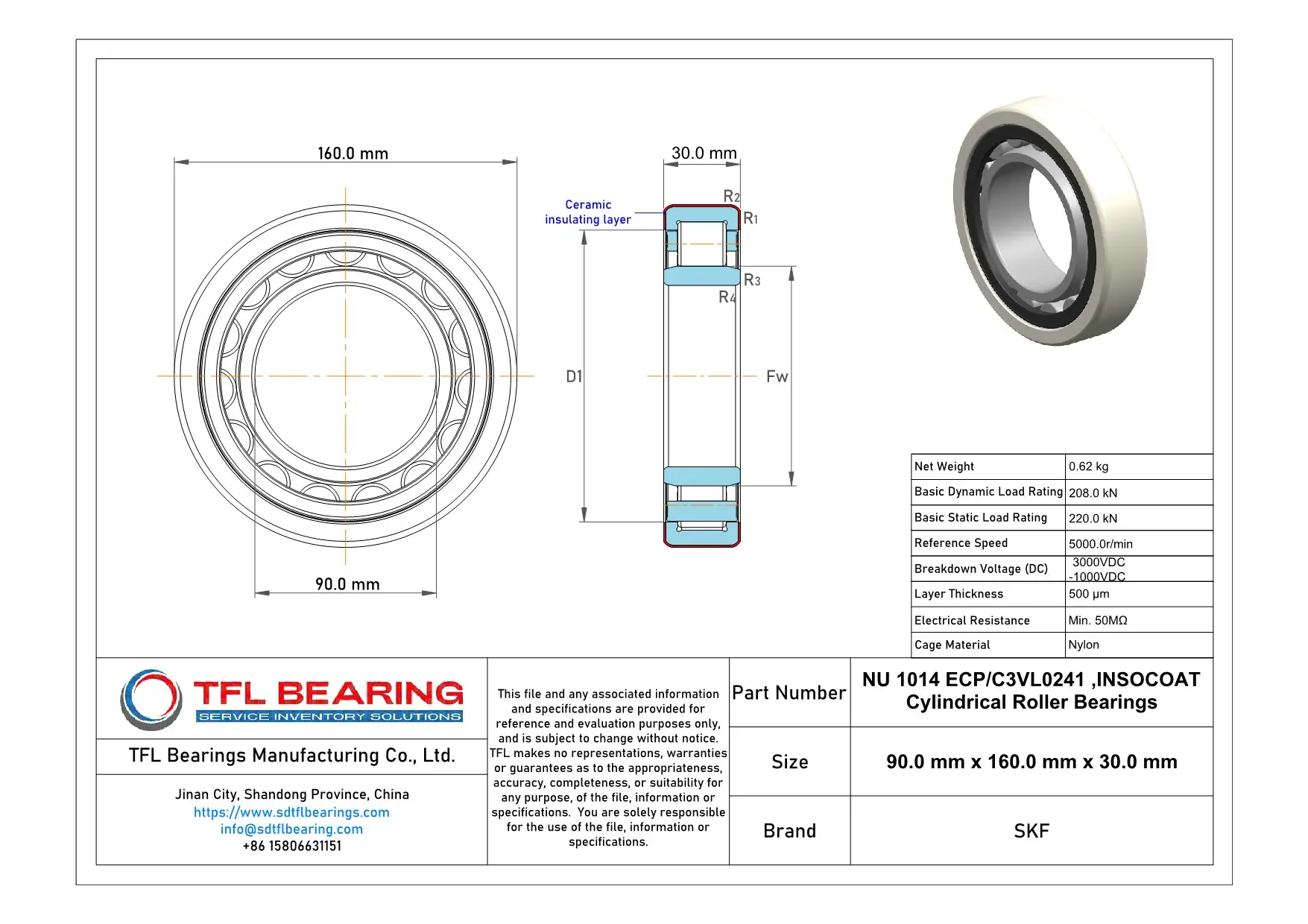

SKF INSOCOAT Cylindrical Roller Bearings NU 1014 ECP/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Does NU 1014 ECP/C3VL0241 Bearing Prevent Electrical Damage?

NU 1014 ECP/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical currents that can cause damage.

This coating provides a breakdown voltage between 1000 and 3000 VDC, making it suitable for electric motor applications.

The nylon cage material helps maintain smooth operation and reduces weight, contributing to the bearing’s efficiency.

With a high dynamic load rating of 208 kN, NU 1014 ECP/C3VL0241 Bearing ensures reliable performance in demanding conditions.

Application

Essential Roles of NU 1014 ECP/C3VL0241 Bearing
NU 1014 ECP/C3VL0241 Bearing works well in industrial equipment like conveyor systems and machine tools, where its insulation coating helps prevent electrical damage. The C3 clearance allows for thermal expansion in demanding environments.

In automotive applications, NU 1014 ECP/C3VL0241 Bearing supports electric motor shafts and gearbox assemblies, providing reliable performance under moderate loads. Its nylon cage contributes to quieter operation in vehicle systems.

For medical imaging devices and laboratory equipment, NU 1014 ECP/C3VL0241 Bearing’s electrical insulation ensures consistent operation in sensitive electronic environments. The cylindrical roller design maintains precision in diagnostic machinery.

Within automation systems, NU 1014 ECP/C3VL0241 Bearing functions effectively in robotic arms and positioning mechanisms, where its breakdown voltage protection safeguards against current leakage. The metric dimensions facilitate integration with European automation standards.
