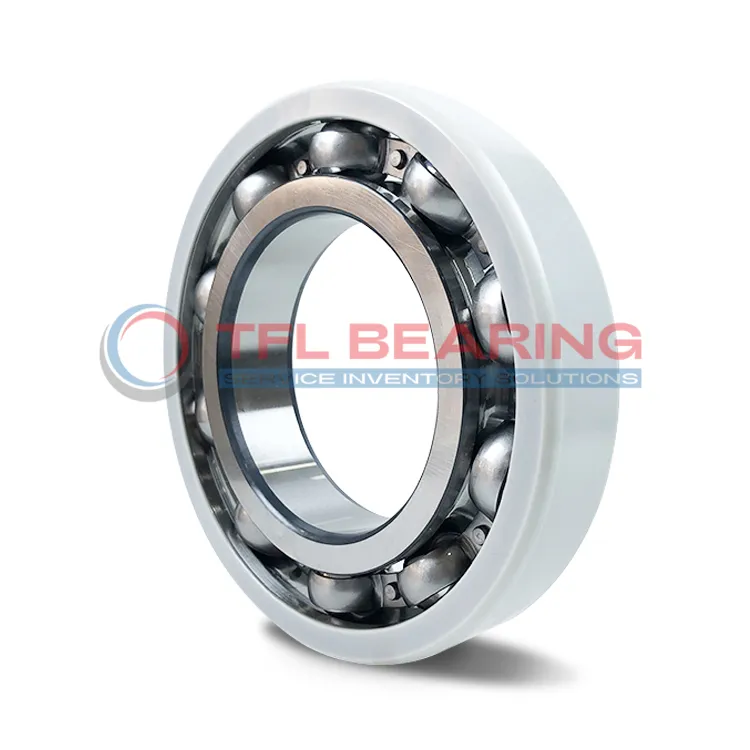

SKF INSOCOAT Bearings 6322/C3VL0241

SKF INSOCOAT Bearings 6322/C3VL0241

The SKF INSOCOAT bearing 6322/C3VL0241 is a robust unit measuring 110mm by 240mm by 50mm, with an insulating coating on the outer ring. It handles dynamic loads up to 216 kN and static loads up to 180 kN, making it suitable for demanding applications.

The bearing spins smoothly at speeds up to 6000 RPM and features a C3 radial clearance for better performance under thermal expansion. Its VL0241 coating provides electrical insulation with a breakdown voltage of up to 3000V, preventing current damage.

With a sheet metal cage and a net weight of 9.32kg, it balances durability and ease of handling. Ideal for electric motors or generators where electrical insulation is crucial, it’s also ROHS compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6322/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 110.0 mm
  • Outside Diameter 240.0 mm
  • Width 50.0 mm
  • Net Weight 9.32kg
  • Basic Dynamic Load Rating 216.0 kN
  • Basic Static Load Rating 180.0 kN
  • Reference Speed 6000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6322/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6322/C3VL0241 Bearing Engineered for Reliability?

6322/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
Its breakdown voltage of up to 3000 V ensures safe operation in electrically demanding environments.
The sheet metal cage maintains ball alignment, enhancing durability and reducing friction.
With a dynamic load rating of 216 kN, it delivers reliable performance under heavy loads.

Application

Industrial Uses of 6322/C3VL0241 Bearing
The 6322/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents.
Its C3 radial clearance ensures reliable performance in high-temperature environments, making it suitable for industrial machinery.

Where Is 6322/C3VL0241 Bearing Used?
You’ll often find 6322/C3VL0241 Bearing in wind turbines, where its high dynamic load rating handles the demanding conditions.
The insulation coating also makes it a smart choice for applications involving variable frequency drives.

Built for Heavy-Duty Use: 6322/C3VL0241 Bearing
With a breakdown voltage of up to 3000 V, 6322/C3VL0241 Bearing is ideal for use in high-voltage equipment like transformers.
The sheet metal cage adds durability, ensuring long service life even under heavy loads.

Automotive vs Aerospace: Applications of 6322/C3VL0241 Bearing
In automotive applications, 6322/C3VL0241 Bearing is used in hybrid vehicle motors, thanks to its insulation properties.
For aerospace, it’s valued in auxiliary power units where electrical resistance and reliability are critical.

Perfect Fit for Automation: 6322/C3VL0241 Bearing
The 6322/C3VL0241 Bearing works well in robotic arms, where its high reference speed supports precise movements.
Its consistent performance also makes it a reliable choice for automated production lines.
