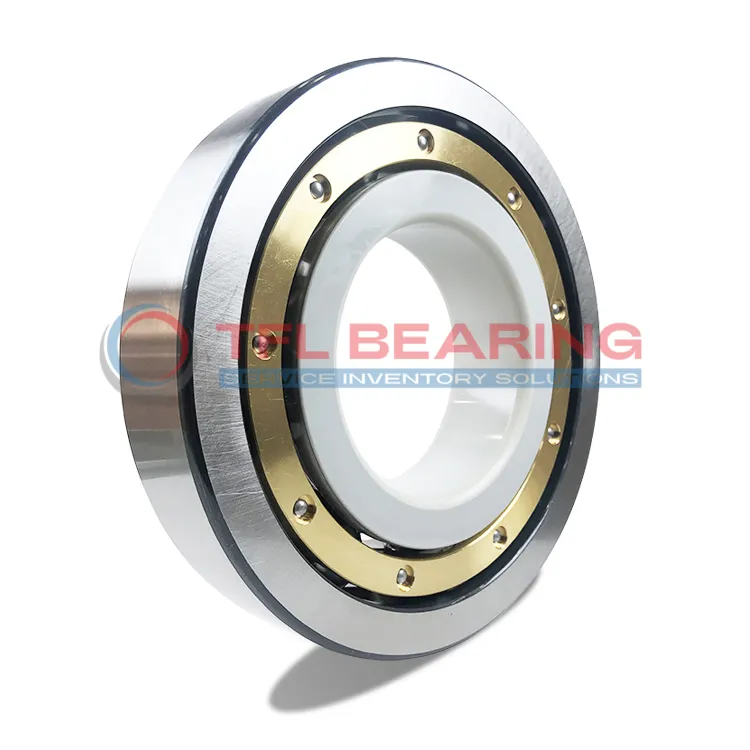

SKF INSOCOAT Bearings 6236M/C3VL2071

The SKF INSOCOAT 6236M/C3VL2071 is a robust bearing with a 180mm bore and 320mm outer diameter, featuring an inner ring insulation coating. It handles dynamic loads up to 240 kN and spins smoothly at speeds up to 3650 RPM.

Its brass cage and C3 radial clearance ensure durability and smooth operation under heavy loads. The insulating coating provides protection against electrical currents, with a breakdown voltage of up to 3000V.

This model is ideal for electric motors or generators where electrical insulation is crucial. The coating also resists wear, making it suitable for high-demand industrial environments.

Weighing 18.6kg, it’s built for long-term reliability. Compliant with RoHS standards, it’s a safe choice for various applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Model 6236M/C3VL2071
Product Category INSOCOAT Bearings
Insulating Coating Types Inner ring insulation coating
Coating Suffix VL2071
Manufacturers SKF
Bore Diameter 180.0 mm
Outside Diameter 320.0 mm
Width 52.0 mm
Net Weight 18.6 kg
Basic Dynamic Load Rating 240.0 kN
Basic Static Load Rating 244.0 kN
Reference Speed 3650 r/min
Breakdown Voltage (DC) ≤3000 V
Layer Thickness 500 µm
Electrical Resistance 200 MΩ
Cage Material Brass cage
Radial Internal Clearance C3
ROHS Compliant
REACH Compliant

SKF INSOCOAT Bearings 6236M/C3VL2071 dimension drawing

Download DWG Download PDF

Features

How Is 6236M/C3VL2071 Bearing Engineered for Reliability?

6236M/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
The brass cage ensures smooth operation and reduces friction, enhancing durability.

With a basic dynamic load rating of 240.0 kN, it handles heavy loads efficiently.
Its reference speed of 3650 r/min makes it suitable for high-speed applications.

The insulating coating has a breakdown voltage of ≤3000 V, ensuring safety in electrical environments.
6236M/C3VL2071 Bearing’s C3 radial internal clearance allows for thermal expansion under heavy loads.

The coating thickness of 500 µm and electrical resistance of 200 MΩ provide reliable insulation.
This design ensures long service life and minimal maintenance requirements.

Application

Industrial Uses of 6236M/C3VL2071 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds.

Where Is 6236M/C3VL2071 Bearing Used?
You’ll often find it in wind turbines and industrial pumps, handling heavy loads with ease. Its C3 clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: 6236M/C3VL2071 Bearing
Perfect for conveyor systems in mining operations, this bearing’s robust design handles constant vibration. The high breakdown voltage makes it reliable in electrically harsh conditions.

Automotive vs Aerospace: Applications of 6236M/C3VL2071 Bearing
In automotive alternators, it ensures consistent performance, while in aerospace applications, its lightweight design is a plus. The insulation coating adds an extra layer of safety.

Essential Roles of 6236M/C3VL2071 Bearing
From railway traction motors to industrial fans, this bearing’s durability stands out. The 240 kN dynamic load rating means it can handle tough jobs without breaking a sweat.
