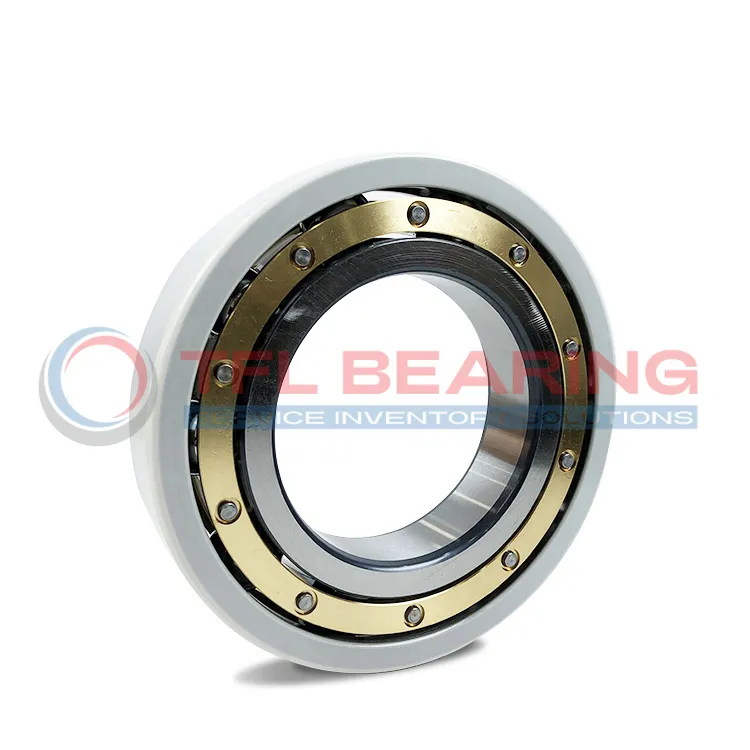

Electrically Insulated Ball Bearings 6322M/C4VL0241

Electrically Insulated Ball Bearings 6322M/C4VL0241

The 6322M/C4VL0241 is an electrically insulated ball bearing with a 110mm bore and 240mm outer diameter, designed to handle both dynamic and static loads efficiently. Its outer ring features a special insulation coating to prevent electrical currents from damaging the bearing.

With a basic dynamic load rating of 216 kN and a reference speed of 6000 RPM, it performs reliably under demanding conditions. The brass cage ensures smooth operation and durability over time.

The insulation coating provides a breakdown voltage of 1000-3000 V and an electrical resistance of 50-200 MΩ, making it ideal for electric motors and generators. Its C4 radial internal clearance allows for thermal expansion in high-speed applications.

Weighing 10.9kg, this bearing is robust yet manageable for installation. Compliant with RoHS and REACH standards, it’s a safe choice for industrial and electrical applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6322M/C4VL0241
  • Product Category Electrically Insulated Ball Bearings
  • Coating Suffix VL0241
  • Insulating Coating Types Insulation coating on outer ring
  • Manufacturers TFL
  • Bore Diameter 110.0 mm
  • Outside Diameter 240.0 mm
  • Width 50.0 mm
  • Net Weight 10.9kg
  • Basic Dynamic Load Rating 216.0 kN
  • Basic Static Load Rating 180.0 kN
  • Reference Speed 6000.0 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

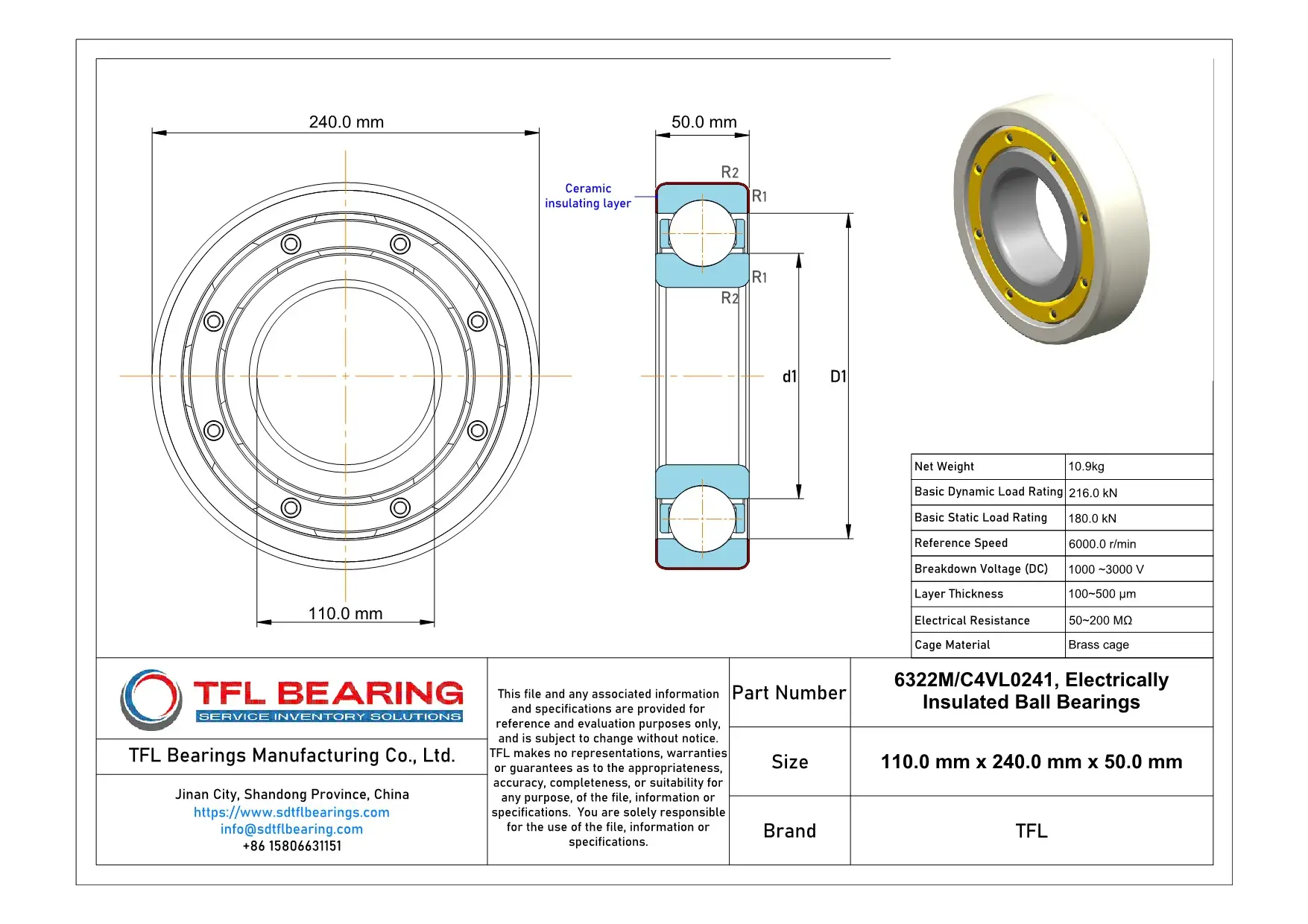

Electrically Insulated Ball Bearings 6322M/C4VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6322M/C4VL0241 Bearing Engineered for Reliability?

6322M/C4VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current damage.
This design ensures reliable operation in electrically charged environments, extending its service life.

With a basic dynamic load rating of 216.0 kN, 6322M/C4VL0241 Bearing handles heavy loads efficiently.
The brass cage maintains ball alignment, reducing friction and wear during high-speed operation.

6322M/C4VL0241 Bearing’s breakdown voltage ranges from 1000 to 3000 V, suitable for various electrical applications.
Its C4 radial internal clearance allows for thermal expansion, ensuring consistent performance.

The insulation layer thickness of 100~500 µm provides robust protection against electrical arcing.
This makes 6322M/C4VL0241 Bearing a dependable choice for industrial machinery.

Application

Industrial Uses of 6322M/C4VL0241 Bearing
The 6322M/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life.
Its brass cage and C4 clearance ensure smooth operation even under high-speed conditions, making it suitable for industrial machinery.

What Makes 6322M/C4VL0241 Bearing a Preferred Choice?
In wind turbines, 6322M/C4VL0241 Bearing handles both radial and axial loads while resisting electrical damage from stray currents.
The high breakdown voltage and consistent electrical resistance make it reliable for renewable energy applications.

Built for Heavy-Duty Use: 6322M/C4VL0241 Bearing
For railway traction systems, 6322M/C4VL0241 Bearing offers durability and electrical insulation to withstand variable loads and vibrations.
The robust design and metric dimensions ensure compatibility with European and Asian rail standards.

Medical vs Industrial: Where 6322M/C4VL0241 Bearing Excels
In medical imaging devices, 6322M/C4VL0241 Bearing’s insulation reduces interference from electrical noise, ensuring accurate diagnostics.
Meanwhile, in factory automation, it supports robotic arms and conveyor systems with reliable performance and minimal maintenance.

Automotive vs Aerospace: Applications of 6322M/C4VL0241 Bearing
Electric vehicle drivetrains benefit from 6322M/C4VL0241 Bearing’s ability to block stray currents and reduce wear.
In aerospace, its lightweight yet sturdy construction makes it suitable for auxiliary power units and flight control systems.
