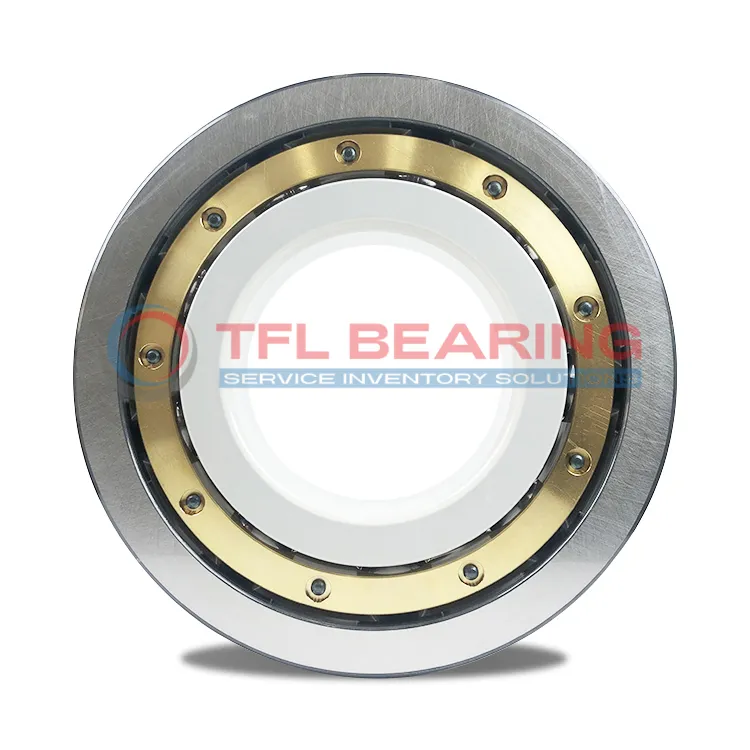

SKF INSOCOAT Bearings 6232M/C3VL2071

SKF INSOCOAT Bearings 6232M/C3VL2071

The SKF INSOCOAT 6232M/C3VL2071 is a robust bearing with a 160mm bore and 290mm outer diameter, designed for heavy-duty applications. Its inner ring features a 500µm insulating coating, providing protection against electrical currents.

This model handles dynamic loads up to 212kN and spins smoothly at speeds up to 4150 RPM. The brass cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions.

The VL2071 coating offers high electrical resistance (200 MΩ) and withstands voltages up to 3000V, making it ideal for electric motors or generators. Weighing 14.5kg, it’s built to last in industrial environments.

Compliant with ROHS standards, this bearing is a reliable choice for applications where electrical insulation and heavy load capacity are required. Its design prevents damage from stray currents in machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6232M/C3VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 160.0 mm
  • Outside Diameter 290.0 mm
  • Width 48.0 mm
  • Net Weight 14.5 kg
  • Basic Dynamic Load Rating 212.0 kN
  • Basic Static Load Rating 203.0 kN
  • Reference Speed 4150 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

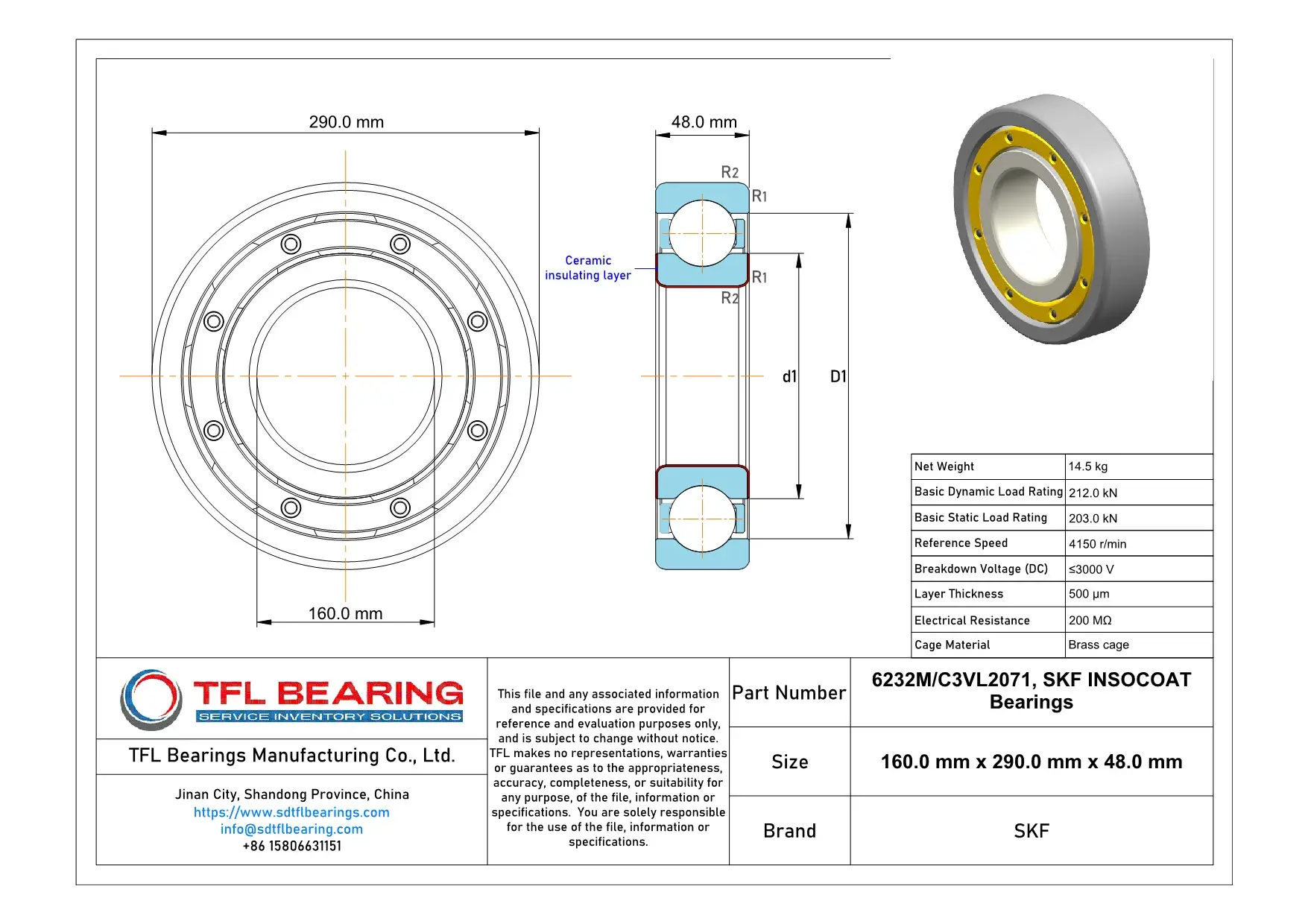

SKF INSOCOAT Bearings 6232M/C3VL2071 dimension drawing
Download DWG Download PDF

Features

Why Choose 6232M/C3VL2071 Bearing for Precision Tasks?

6232M/C3VL2071 Bearing features an inner ring insulation coating, making it ideal for applications requiring electrical resistance.
Its breakdown voltage of ≤3000 V ensures reliable performance in electrically demanding environments.

The brass cage design enhances durability and maintains alignment under high-speed conditions.
With a reference speed of 4150 r/min, it balances efficiency and precision.

6232M/C3VL2071 Bearing’s C3 radial internal clearance allows for thermal expansion in various operating conditions.
This ensures smooth operation and reduces the risk of premature wear.

The basic dynamic load rating of 212.0 kN highlights its ability to handle heavy loads with ease.
Its robust construction makes it suitable for industrial applications requiring long-term reliability.

Application

Industrial Uses of 6232M/C3VL2071 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high-speed conditions.

Where Is 6232M/C3VL2071 Bearing Used?
You’ll find 6232M/C3VL2071 Bearing in wind turbines, where its high dynamic load rating handles variable forces. The C3 clearance also accommodates thermal expansion in demanding environments.

Built for Heavy-Duty Use: 6232M/C3VL2071 Bearing
In industrial pumps, 6232M/C3VL2071 Bearing’s robust design withstands continuous operation. The insulation coating adds reliability in electrically noisy settings.

Automotive vs Aerospace: Applications of 6232M/C3VL2071 Bearing
While 6232M/C3VL2071 Bearing suits hybrid vehicle drivetrains, its aerospace use is limited by weight. The high breakdown voltage makes it ideal for electric vehicle components.

Perfect Fit for Automation: 6232M/C3VL2071 Bearing
This bearing works well in robotic arms, where precision and insulation are key. The 500 µm coating thickness ensures long-term protection against electrical currents.
