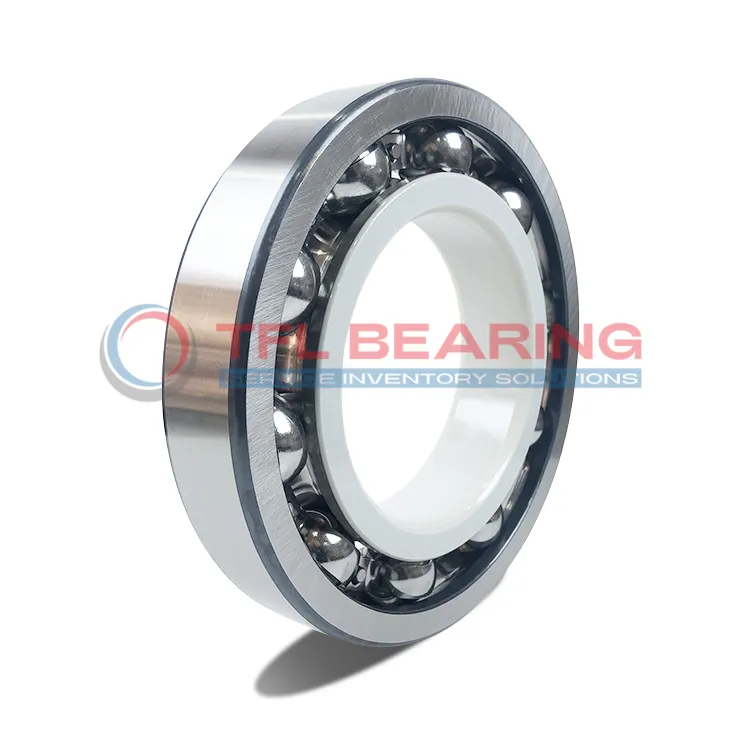

SKF INSOCOAT Bearings 6230/C4VL2071

SKF INSOCOAT Bearings 6230/C4VL2071

The SKF INSOCOAT bearing 6230/C4VL2071 is a robust unit measuring 150mm in bore diameter, 270mm outside, and 45mm wide, with a net weight of 9.82kg. Its inner ring features a 500µm insulating coating, providing electrical resistance up to 200 MΩ.

This bearing handles dynamic loads up to 186 kN and static loads of 166 kN, with a reference speed of 5000 RPM. The C4 radial clearance allows for thermal expansion, while the sheet metal cage ensures durability.

The VL2071 coating prevents electrical arcing, making it ideal for electric motors or generators. It’s ROHS compliant and suits high-speed applications where electrical insulation is crucial.

With a breakdown voltage of 3000V DC, it reliably protects equipment from current damage. A practical choice for industries requiring both mechanical performance and electrical safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6230/C4VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 150.0 mm
  • Outside Diameter 270.0 mm
  • Width 45.0 mm
  • Net Weight 9.82kg
  • Basic Dynamic Load Rating 186.0 kN
  • Basic Static Load Rating 166.0 kN
  • Reference Speed 5000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6230/C4VL2071 dimension drawing
Download DWG Download PDF

Features

What Ensures Smooth Operation in 6230/C4VL2071 Bearing?

6230/C4VL2071 Bearing features an inner ring insulation coating, protecting it from electrical damage.
The VL2071 coating ensures a breakdown voltage of up to 3000 V, making it suitable for high-voltage environments.

With a dynamic load rating of 186 kN, 6230/C4VL2071 Bearing handles heavy loads efficiently.
Its sheet metal cage maintains ball alignment, reducing friction and wear.

6230/C4VL2071 Bearing operates smoothly at speeds up to 5000 r/min.
The C4 radial clearance ensures optimal performance under varying thermal conditions.

Application

Industrial Uses of 6230/C4VL2071 Bearing
The 6230/C4VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage. Its high dynamic load rating makes it suitable for heavy industrial machinery.

Key Fields for 6230/C4VL2071 Bearing
In wind turbines, 6230/C4VL2071 Bearing handles high rotational speeds and electrical insulation needs. The C4 radial clearance ensures smooth operation under varying thermal conditions.

What Makes 6230/C4VL2071 Bearing a Preferred Choice?
For railway traction motors, 6230/C4VL2071 Bearing offers reliable performance with its sheet metal cage and high breakdown voltage. Its robust design withstands constant vibrations and shocks.

Built for Heavy-Duty Use: 6230/C4VL2071 Bearing
In mining equipment, 6230/C4VL2071 Bearing excels due to its static load capacity and resistance to electrical currents. The 500 µm insulation layer adds extra protection in harsh environments.

Automotive vs Aerospace: Applications of 6230/C4VL2071 Bearing
While 6230/C4VL2071 Bearing is used in hybrid vehicle drivetrains for its insulation, it also fits aerospace applications needing high-speed reliability. The wide temperature range adds versatility.
